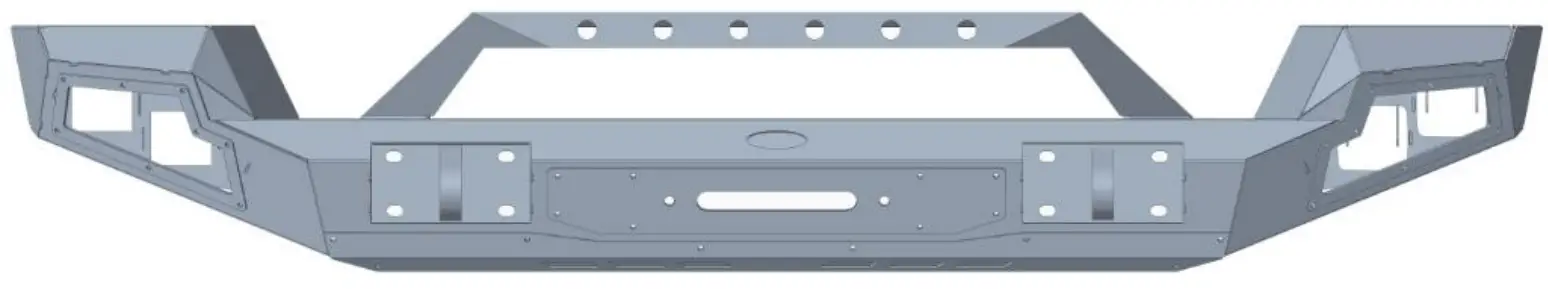

HOOKE ROAD BXG.3013-S Gladiator JT/JL Classic Front Bumper
Contents
Contents
- Bull Bar

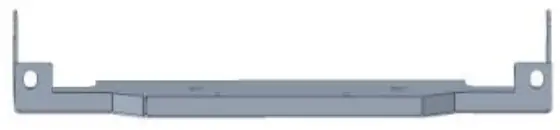

- Winch Bracket

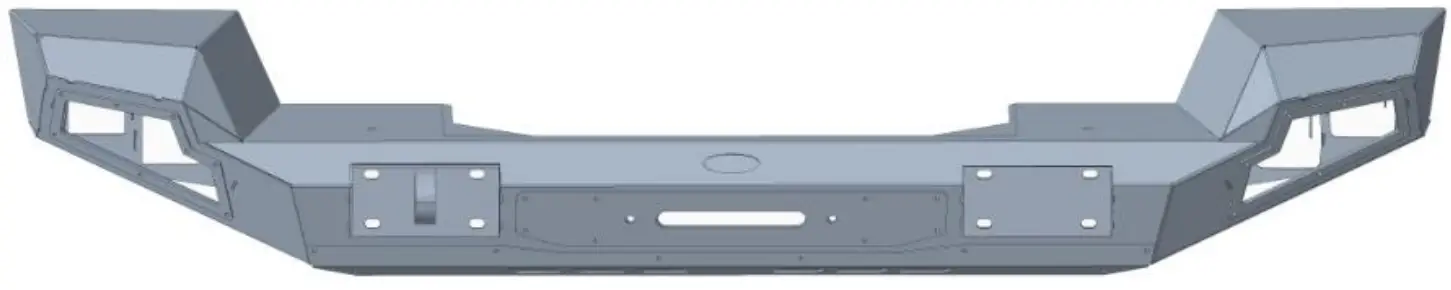

- Front Bumper Body
Parts
| Qty | Part Name | Size(mm) | Picture |

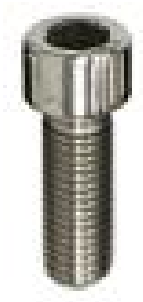

| 8 | Hex Socket Head Cap Screws | M12*35 |  |
| 2 | Button Head Socket Cap Bolts Screws | M10*25 |  |
| 8 | Split Lock Washer | D12 |  |
| 2 | Split Lock Washer | D10 |  |
| 8 | Flat Washer | M12*30*2 |  |
| 2 | Flat Washer | M10*20*1 |  |
| 8 | Flange Hex Lock Nuts | M12 |  |
| 2 | Flange Hex Lock Nuts | M10 |  |
| 2 | D-rings |  |
Tools required
a. Drive Socket Ratchet Wrench;
b. 6mm Hex Bit Socket;
c. 19mm Wrench;
d. 19mm Shallow Socket;
Installation time
About 1 hour, 2-3 people may be needed. Installation time may differ according to your mechanical skill level.
(PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!)
To view the electronic version (BXG.3013-S), please scan the QR code.
Installation instruction
Step 1: Remove the factory front bumper, ready to install our product.
Step 2: Connect the bull bar to the main body using M10*25 button head socket cap bolts screw and nuts.
(2) M10*25 Button Head Socket Cap Bolts Screws
(2) D10 Split Lock Washer
(2) M10*20*1 Flat Washer
(2) M10 Flange Hex Lock Nuts
Step 3: To install the winch bracket, use the holes on the side of the vehicle’s main beam (as shown in the diagram) with the factory bolts. The winch bracket should be placed behind the vehicle mounting hole. (Please complete the installation of the winch in this step if you intend to use it)
Factory Bolts
Step 4: Lift the bumper, align it with the holes, and tighten the screws on the bar using M12*35 hex socket head cap screws and nuts.
Step 5: Install the D-ring into the D-ring mount.
Step 6: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
Attention
- The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
- Please feel free to contact your distributor if you have any kind of question about your purchase.
