PM45 AND PM65
INDUSTRIAL
PRINTERS
Accessories Guide
Contents
PRINTHEADS
 |
|
|
| 50180236-001 PM45 Printhead 203 DPI 203 DPI printhead assembly, 4” |
50180237-001 PM45 Printhead 300 DPI 300 DPI printhead assembly, 4” |
50180238-001 PM45 Printhead 406 DPI 406 DPI printhead assembly, 4” |
|
 |
|
| 50180234-001 PM45 Printhead 600 DPI 00 DPI printhead assembly, 4” |
PM65-TPH-203 PM65 Printhead 203 DPI 203 DPI printhead assembly, 6” |
PM65-TPH-300 PM65 Printhead 300 DPI 300 DPI printhead assembly, 6” |
CONNECTIVITY
 |
|
 |
| 50178327-001 Kit, PM45 Wireless LAN + Bluetooth, NA Customer-installable Wi-Fi Kit, includes internal card and antenna. IEEE 802.11 a/b/g/n/ac + V5.0 Bluetooth. Only for USA and Canada |
50174832-001 Kit, PM45 Wireless LAN + Bluetooth, ROW Customer-installable Wi-Fi Kit, includes internal card and antenna, IEEE 802.11 a/b/g/n/ac + V5.0 Bluetooth, For countries outside of USA and Canada |
PM65-WL-NA Kit, PM65 Wireless LAN + Bluetooth, NA Customer-installable Wi-Fi Kit includes internal card and antenna, IEEE 802.11 a/b/g/n/ac/ax + V5.2 Bluetooth. Only for USA and Canada |
|
 |
 |
| PM65-WL-ROW Kit, PM65 Wireless LAN + Bluetooth, ROW Customer-installable Wi-Fi Kit includes internal card and antenna, IEEE 802.11 a/b/g/n/ac/ax + V5.2 Bluetooth. Only for USA and Canada |

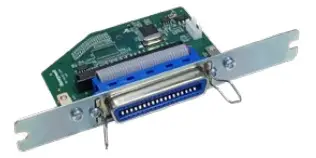

PM45-PAR-01 Kit, Parallel Port Field-installable, parallel interface (IEEE 1284), for both PM45 and PM65 |
PM45-IND-01 KIT, Industrial Interface Field-installable, industrial interface – eight digital in/out, four analog relays, one RS232/422/485 port, for both PM45 and PM65 |
 |
||
| PM45-APPL-01 KIT, Applicator Interface Field-installable, applicator interface – Ext Error 8-pin mini-DIN, Z-style standard DB15 port, S-style standard 14-pin Centronics, Ext Power 6-pin mini-DIN, for both PM45 and PM65 |
||
MEDIA OPTIONS
 |
 |
 |
| 50180235-001 Kit, PM45 Platen Roller Platen Roller Assembly |
PM65-PR Kit, PM65 Platen Roller Platen Roller Assembly |
50180192-001 Media Arm Edge Guide Prevents telescoping of media rolls, for both PM45 and PM65 |
 |
 |
 |
| 203-972-001 3’’ Media Core Adapter for 3’’ diameter media cores, for both PM45 and PM65 |
50180221-001 PM45 Collapsible Core Enables coreless media rewinding, increases ribbon take-up capacity |
PM65-CC PM65 Collapsible Core Enables coreless media rewinding, increases ribbon take-up capacity |
 |
 |
 |
| 50180196-001 PM45 Label Dispenser Making it easier to dispense labels with strong adhesive. Must use together with rewinder. |
PM65-LD PM65 Label Dispenser Making it easier to dispense labels with strong adhesive. Must use together with rewinder. |
50180206-001 PM45 Cutter Kit Media cutter |
MEDIA OPTIONS
 |
 |
 |
| 50180201-001 PM45c Cutter Kit Field-installable, Media Cutter |
PM65-CUTTER PM65 Cutter Kit Media Cutter |
50178326-001 PM45 Rewinder Field-installable, Internal Rewinder/Peel Off Kit |
 |
||
| PM65-MR-001 PM65 Rewinder Field-installable, Internal Rewinder/Peel Off Kit |
DOORS
 |
 |
 |
| PM45C-LD-KIT PM45c Long Door Kit Full door, completely covering media up to 5” in diameter |
PM45C-SD-KIT PM45c Short Door Kit Short door, enabling open access to media |
PM45C-MD-KIT PM45c Mega Door Kit Dome door, completely covering media rolls up to 8” in diameter |
RFID
 |
|
|
| 50180747-001 RFID Kit, NA Field-installable, RFID UHF, North America and Mexico For both PM45 and PM65 |
50180233-001 RFID Kit, EU Field-installable, RFID UHF, Europe For both PM45 and PM65 |
3009-1530-001 RFID Kit, CN Field-installable, RFID UHF, China For both PM45 and PM65 |
CABLES
 |
 |
 |
| 321-576-004 USB Cable USB (USB-A to USB-B) cable, 6.5 ft. (2 m) length, RoHS compliant. For both PM45 and PM65 |
1-974024-018 Serial Cable RS-232 (DB9F to DB9M) cable, 5.9 ft. (1.8 m) length, RoHS compliant. For both PM45 and PM65 |
1-94022-018 Parallel Cable Parallel (IEEE 1284) cable, 5.9 ft. (1.8 m) length, RoHS compliant. For both PM45 and PM65 |
| 1-974028-025 US power cord For both PM45 and PM65 |
1-974027-025 EU power cord For both PM45 and PM65 |
1-974029-020 UK power cord For both PM45 and PM65 |
| 321-471-002 AUS power cord For both PM45 and PM65 |
32-2497-01 China power cord For both PM45 and PM65 |
321-502-002 India power cord For both PM45 and PM65 |
| 321-501-002 Denmark power cord For both PM45 and PM65 |
||
CLEANING CARDS
| 1-110501-00 Printhead Cleaning Card Cleaning Card, 4.5”x6”, box of 25. For PM45 |
1-110601-00 Printhead Cleaning Card Cleaning Card, 6” wide printers, box of 25. For PM65 |
