Homdiy HD-LSJ12BK128-25 Black Square Cabinet Hardware Euro Style Bar Handle Pull Instructions

Homdiy HD-LSJ12BK128-25 Black Square Cabinet Hardware Euro Style Bar Handle Pull Instructions

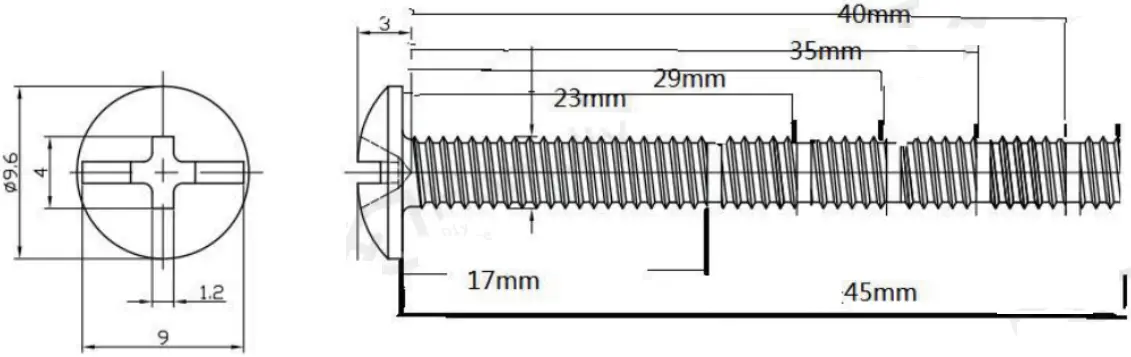

Dimensions

Instructions

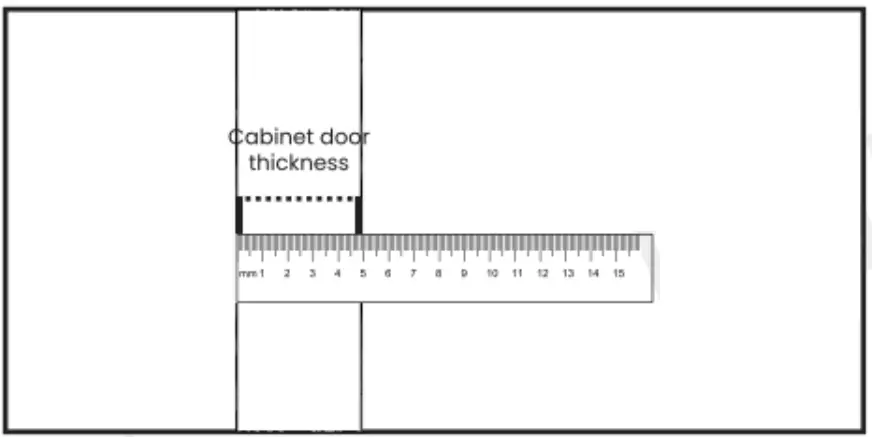

Step 1: Measure the thickness of the cabinet door where. you need to install the handle or knob

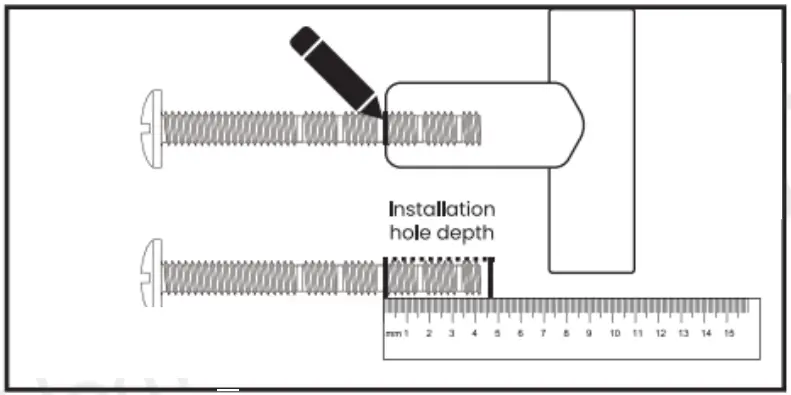

Step 2: Confirm the depth of the installation hole for the handle or knob by using the provided bamboo-shaped screw. Tighten the screw into the installation hole until it’s secure.

Step 3: Mark and measure the dimensions. Use a marker or pencil to mark the center position of the installation hole and then measure the precise distance between these marks.

Step 4: Confirm the required length of the bamboo-shaped screw, ensuring that it meets the following criteria: Cabinet door thickness + 5 millimeters s Screw length Cabinet door thickness + installation hole depth.

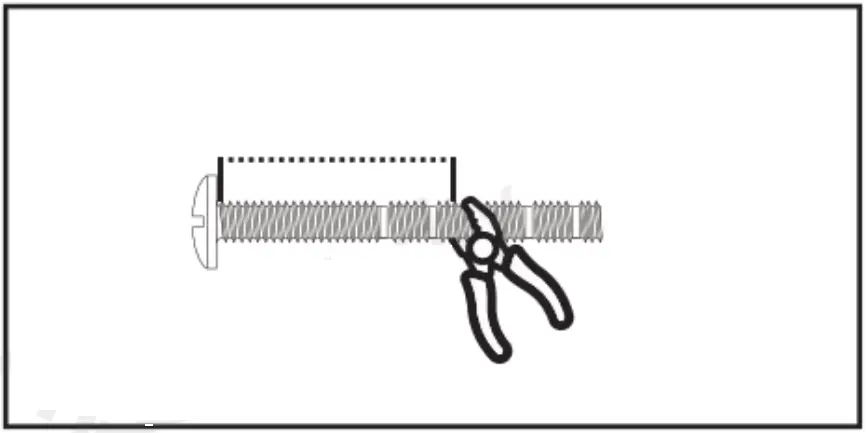

Step 5: Trim any excess length of the bamboo-shaped screw. If the required screw length is longer than the sum of the door thickness and installation hole depth, use scissors or cutting tools to trim the excess.

Step 6: Successful installation. Place the handle or knob on the cabinet door and insert the bamboo-shaped screw through the marked center position. Then, use a screwdriver or wrench to tighten the screw.
