L5 Series Laser TV
Model-100L5H-DLT100C
L5H
4K SMART
LASER TV
Contents

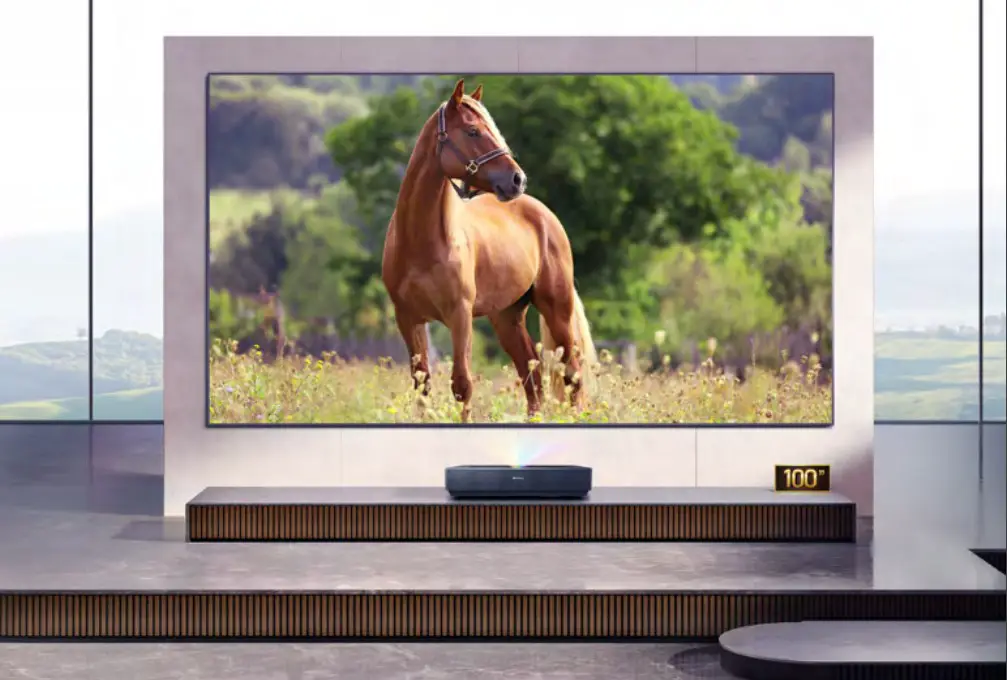

Big Screen. Big Entertainment.
The L5H Laser TV immerses you into a whole new 4K UHD viewing experience. It’s DLP® Technology powered by Texas Instruments and X-Fusion Laser Light Source enables you to enjoy a more natural viewing experience that brings your favourite content to life. This unique experience integrates the Google TV OS and includes an ambient light-rejection screen along with Dolby Atmos cinematic sound. With the IMAX Enhanced and Film Maker Mode, you can experience the next generation of optimized picture performance at home.
- Ultra Short Throw Technology
- 25,000 Hours Life
- 2700 Lumens Brightness
- 4K Resolution, 60Hz Refresh
- Dolby Vision®
- 40W Dolby Atmos® Sound
- High-Speed HDMI with eARC
- Backlit Voice Remote
- Google TV

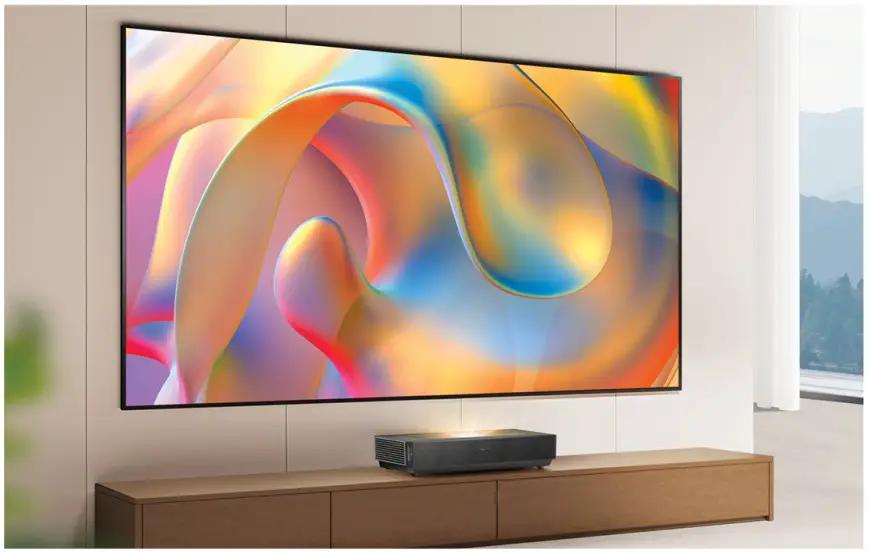

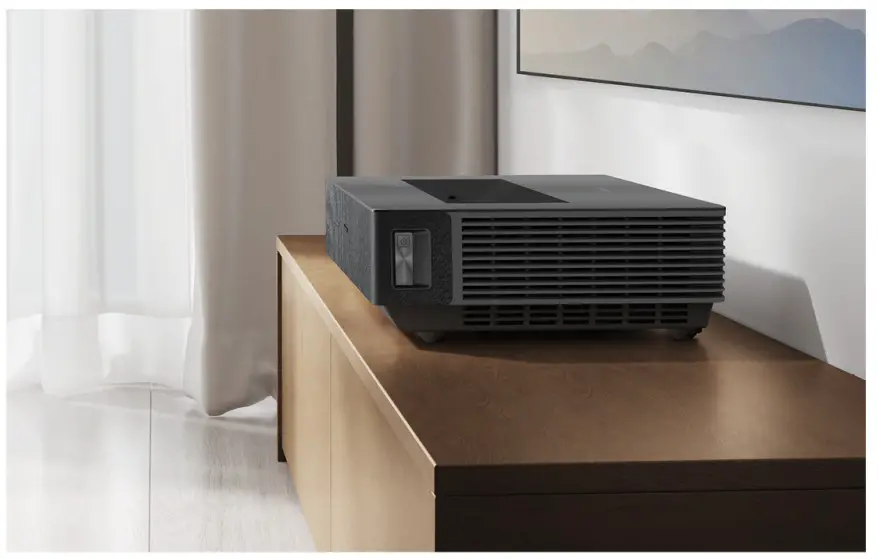

Ultra Short Throw. Ultra Convenient.
Big screen entertainment in a convenient package. No need for ceiling mounts or in-wall cable runs, simply place the L5H on a TV stand just 11 inches from the wall and get a massive 100-inch projection -that’s 3x more screen than a 55-inch TV.

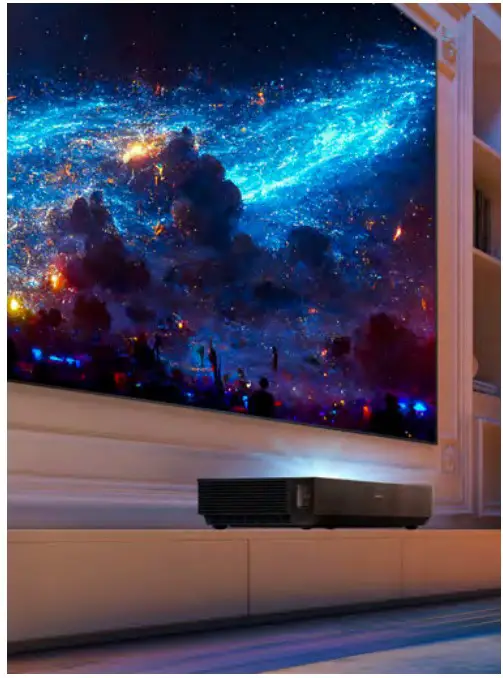

Ambient Light Rejecting Screen
The L5H’s Laser TV display employs Ambient Light Rejection technology to eliminate glare and image wash out from ambient light. The Laser TV display gives you a killer picture under any lighting condition without having to kill the lights.
Cinematic Sound
With built-in 40W Dolby Atmos 1? sound. the L5H delivers cinematic sound that seemingly flows all around you. For the true audiophiles, the ISH’s eARC support means you get full signal pass-thru to your surround sound system.

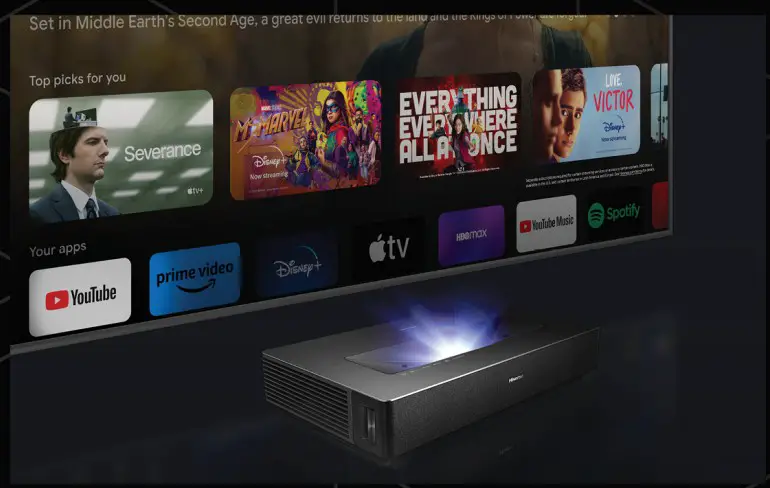

Google TV
Google TV brings together movies, shows and more from across your apps and subscriptions and organizes them just for you. Discover new things to watch with recommendations based on what you watch and what interests you.
4K Picture with HDR10
With 4K resolution, HDRIO support, and 2700 Lumens peak brightness, the LSH faithfully recreates a world of incredible color and detail. The fixed-focal length of the LSH delivers unmatched picture clarity and focus uniformity.
X-FusionTM Laser Engine
Experience true-to-life color with impressive dynamic range that just doesn’t quit. The 1.51-I’s X-Fusion”^ Laser Engine exceeds the Rec.709 standard for UHD 4K and lasts long enough to enjoy more than 25.000 hours of content.
Dolby Vision®
Whether you want to catch up on the latest content from Prime Video, or YouTube. or simply enjoy some time with your favorite immersive games. Laser TV delivers original content with better detail in the shadows and brighter highlights.
Filmmaker Mode
Filmmaker Mode reads metadata from your content to automatically disable any post-processing motion settings on the Laser TV so you see video as the creators intended.
Game Mode with ALLM
No need to manually change TV settings when you’re about to drop in. High-speed HDMI ports detect when a gaming console is the active input source and automatically adjust picture and signal processing settings to optimize game performance.
Smart Home Ready
With built-in Wi-Fi. Bluetooth, Google Assistant, Works with Alexa. the LSH and its included Voice Remote can be integrated with your smart home ecosystem to create automations to your heart’s desire.
TECHNICAL SPECIFICATIONS
Laser Model | 100L5H-DLT100C
Physical
| Console Dimensions | 22.3” x 4.8” x 12.6” (W x H x D) |
| Console Weight | 20.7 lbs |
| Screen Dimensions | 89.1” x 50.9” x 1.1” (WxHxD) |
| Screen Weight | 30lbs |
| Over box/Package Dimensions | 66.1” x 20.9” x 19.7” (LTV + Screen) |
| Over box/Package Weight | 97 lbs (LTV + Screen) |
| Projection Size | 100” |
| Brightness | 2700 Lumens |
| Resolution / Refresh Rate | 4k@60Hz |
| Color Space | 85% DCI-P3 |
| Contrast Ratio | 2,000,000:1 (dynamic) |
| HDR | HDR10, Dolby Vision, HLG |
| Light Source | Blue Laser + Phosphor Color Filter |
| Laser Life | 25,000+ Hours |
| Throw Ratio | 0.25:1 |
| Chipset | 0.47” DMD |
Audio
| Audio Output Power | 40W (Stereo) |
| Surround Sound | Dolby Atmos®, Dolby Digital |
Smart Features
| Smart TV Platform | Google TV (Google Certified) |
| App Store | Google Play Store |
| Streaming Services | Netflix, Disney+, HBO MAX, Hulu, Prime Video, SHOWTIME, Pandora, Sling TV, YouTube |
| Voice Assistant | Google Assistant |
| Works With | Hey Google, Amazon Alexa |
| Screen Mirroring | Chromecast, Airplay2 |
Connectivity
| Wi-Fi | 802.11a/b/g/n/ac (Dual-Band), Wifi 6e |
| Bluetooth | Yes |
| Wired Ethernet | Yes |
Power
| Power Consumption | 350W |
| Standby Consumption | <0.5W |
| Power Supply | AC 120V, 60Hz |

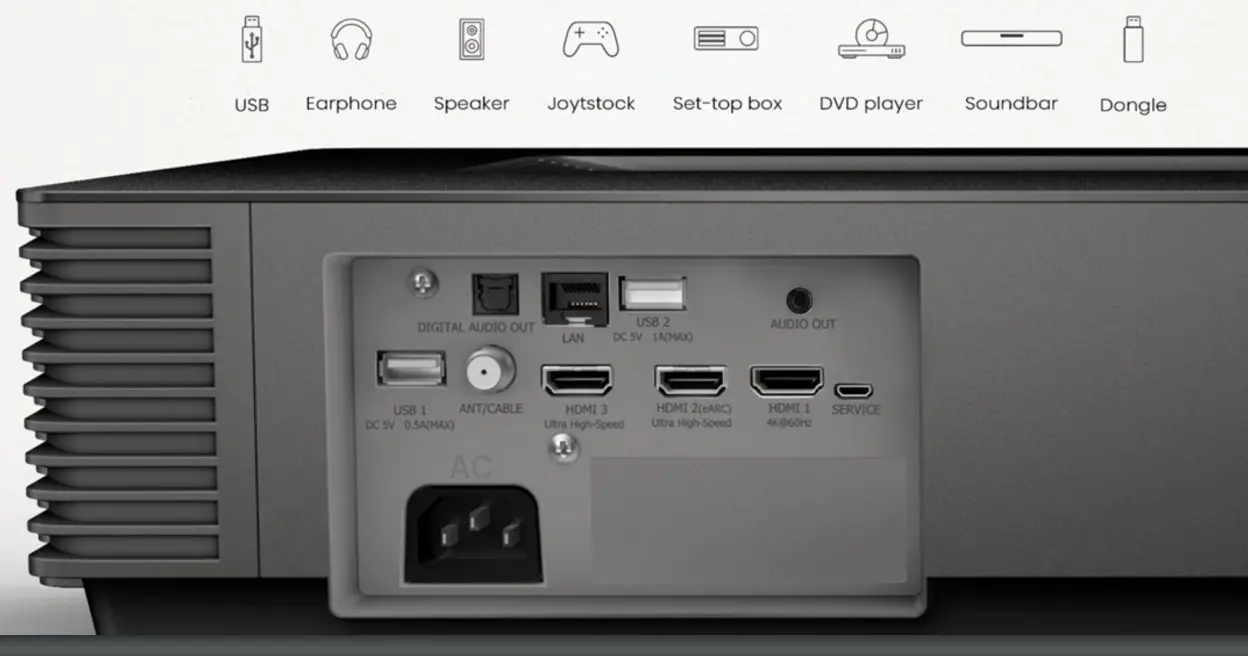

Ports
| HDMI | 2x HDMI 2.1 (ALLM), 1x HDMI 2.0 |
| HDMI ARC, CEC | 1 x (eARC on HDMI port 2) |
| USB | 1 x USB 3.0, 1x USB 2.0 |
| RF Antenna | 1 x (ATSC3.0) |
| Ethernet (LAN) | 1 x |
| Digital Audio Output | 1 x Optical |
| Analog Audio Output | 1 x |
Other Features
| Noise Reduction | Yes |
| Parental Controls | Yes |
| Closed Caption | Yes |
| Sleep Timer | Yes |
| Eye Safety | Yes |
| MEMC | Yes |
| Remote Finder | Yes |
Accessories
| Remote | Yes, voice remote with backlight |
| Quick Start Guide / Manual | QSG in box, Manual online |
| Power Cable | Yes |
| Cleaning Kit | Yes |
| Warranty | 2 Years limited warranty |
| UPC/EAN | UPC:888143016245 EAN:6942147497142 |
Screen
| Screen Size | 100” diagonal |
| Resolution | 4K |
| Gain | 1.5 |
| ALR Type | Fresnel |
| Viewing Angel | 45º |
| Ambient light obscuring ratio | 85% |
| Scratch-Resistance | Yes |
| Frame | Fix (assembly required) |

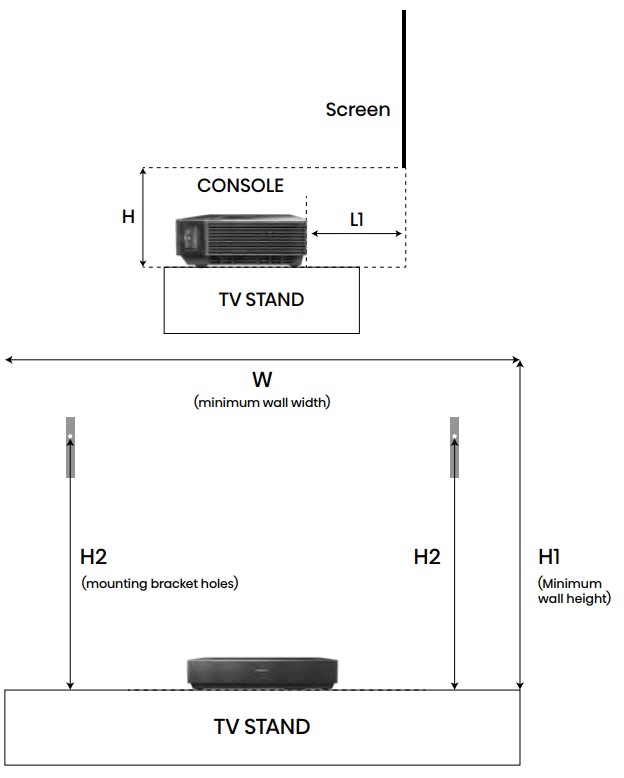

Setup Diagrams
| H | 14 5/7“ |
| L1 | 12 4/5” |
| W | >89” |
| H1 | >76 3/5” |
| H2 | 69 3/5” |
Recommended TV stand height: <20” Tall
All product, product specifications, and data are subject to change without notice to improve reliability, function, design or otherwise.
©2023 Hisense Canada, All rights reserved
Hisense Canada Co., Ltd
Unit 1, 2550 Meadowvale Blvd, Mississauga, ON L5N 8C2
