HILTI X-CR M Stainless Steel Threaded Stud

Product data

Dimensions

Material specifications

Shank:	CrNiMo alloy, fu ≥ 1800 N/mm2 (49 HRC)
Threaded sleeve:	A4 (AlSI 316)
Zinc coating:	5–13 μm
Washers/guidance sleeve:	polyethylene

Approvals

DIBt (Germany):

X-CR M8-__-42 P8 (DX-Kwik)

Not all information presented in this product data sheet might be subject to approval / certificate content. Please refer to approval / certificate for further information.

Applications

Base plates for pipe rings

Installation rails

Facade brackets

Special purpose connections

Performance data

Recommended resistance under tension load, shear load and bending moment

Designation	Tension load		Shear load	Bending moment
	Nrec,1	Nrec,2	Vrec	Mrec
	Compressive zone	Tension zone
X-CR M8- -42 P8	3.0 kN	0.9 kN	3.0 kN	5.5 Nm

DX-Kwik method (pre-drilling) for fastening to concrete: fcc ≥ 20 N/mm2.
A sufficient redundancy has to be ensured, that the failure of a single fastening will not lead to collapse of the entire system.
Observance of all pre-drilling requirements.
For more details in relation to base material properties, please refer to the chapter Fastener selection guide in the Direct Fastening Manual (DFTM)

Application recommendation

Base material thickness

X-CR M8-__-42 P8:

hmin = 100 mm

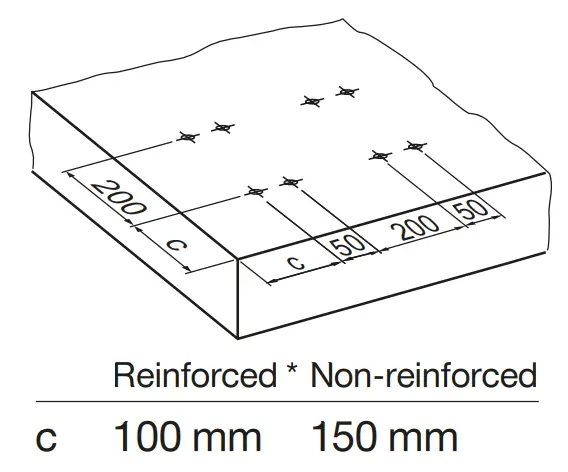

Fastener positioning in base material for fastening to concrete

Pairs

Row along edge

General (e.g. group of fasteners)

* Minimum ∅ 6 reinforcing steel continuous along all edges and around all corners. Edge bars must be enclosed by stirrups

Application limits for fastening to concrete

No general restrictions existent. Limitations are dependent on application and user requirements.

Corrosion information

For fastenings exposed to weather or other corrosive conditions.
Not for use in highly corrosive surroundings like swimming pools or highway tunnels.
For more details, please refer to following technical document: Hilti Corrosion Handbook.

System recommendation

For more details, please refer to the chapter Accessories and consumables
compatibility in the Direct Fastening Technology Manual (DFTM).

Cartridge recommendation

Base material	Cartridge color (tool power level)
	Tool type: DX 6 F8	Tool type: DX 5 F8, DX 460 F8, DX 36, DX 2
	Cartridge type: 6.8/11 M	Cartridge type: 6.8/11 M
Soft/medium concrete	titanium (2-6)	yellow , red
Tough concrete	titanium (4-8)	yellow , red

Tool power level adjustment by setting tests on site.
Start tool energy selection with lowest recommended tool power level.
Correct according requirement from chapter quality assurance.

Installation recommendation

	Pre-drill with drill bit: TE-C-5/23B (Item-no. 28557) or TE-C-5/23 (Item no. 00061787)
	Tightening torque: Trec = 10 Nm

These are abbreviated instructions which may vary by application.
ALWAYS review/follow the instructions accompanying the product.

Quality assurance

Fastening inspection

	Designation	Fastener stand-off
	Designation	hNVS
	X-CR M8-14-42 P8	12.0–16.0 mm
	X-CR M8-22-42 P8	20.0–24.0 mm

Fastener program

Designation	Item no.	Fastened material thickness tI,max	Lg	L_s	Tools
X-CR M8-14-42 P8	255911	5.0 mm	14 mm	42 mm	DX 6 F8, DX 5 F8, DX 460 F8, DX 36, DX 2
X-CR M8-22-42 P8	255910	13.0 mm	22 mm	42 mm	DX 6 F8, DX 5 F8, DX 460 F8, DX 36, DX 2
