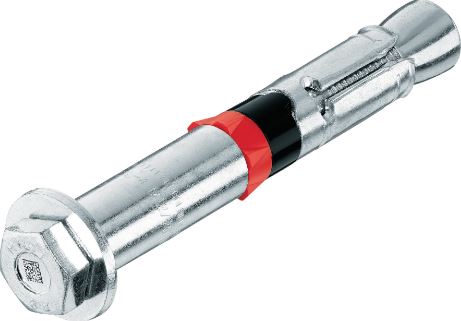

HILTI HSL4-I Heavy-Duty Wedge Anchor
Product Information
- Product Name: HSL4-I M12
- Dimensions: – dh: 14 mm – tfix, max: 40 mm – hmin: 115 mm – hole h: 80 mm – hef: 65 mm
Product Usage Instructions
Preparing for Installation
- Ensure that the hole size is appropriate for the product.
- Place the product in the desired location.
Pre-setting
- Use a wrench with a size of SW 19.
- Turn the product clockwise until you feel resistance.
- Turn the product an additional 1 to 2 turns.
Final Setting
- Continue turning the product clockwise until it is securely fastened.
Pre-torque
- Apply torque to the product using the wrench.
- Use a torque value that is suitable for your application.
Spacer Sleeve (if applicable)
- If a spacer sleeve is included, insert it between the product and the surface where it will be installed.
Bottom Out or Minimum Position
- Ensure that the product is fully tightened until it reaches the bottom or minimum position.
Additional Turns (if applicable)
- If specified, turn the product an additional 7 turns after the pre-setting and final setting steps.
Note: Make sure to follow any additional instructions provided in the complete user manual for the specific product variant.
Dimensions
HSL4-I M12 65
HSL4-I M12 80

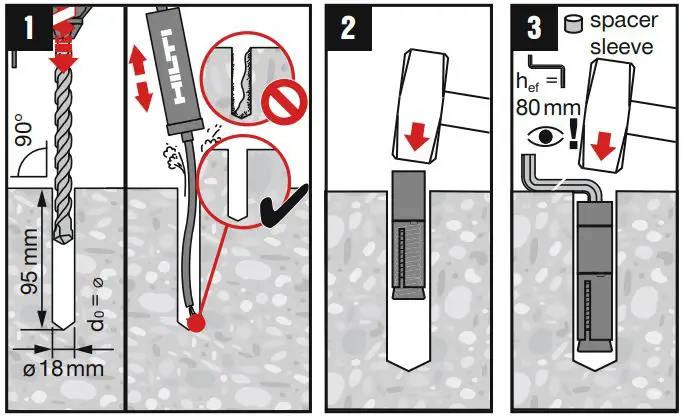

Installation Instructions
HSL4-I M12 65

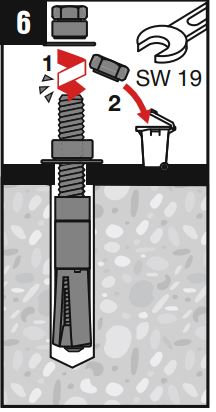

Pre-setting
Final setting
HSL4-I M12 80
Pre-setting
Final setting
