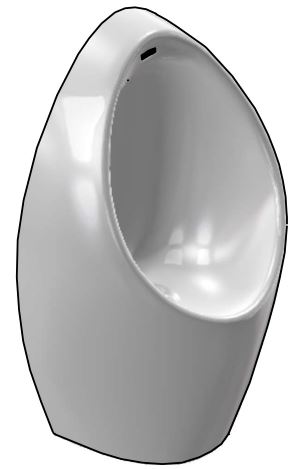

HELVEX WLU GOBI Waterless Urinal with TDS
PRODUCT FEATURES
- Waterless urinal with TDS (Total Drain and Seal™ ): Triple sealing ensuring zero smells.
- Wall mounted urinal.
- Sleek design that virtually eliminates splashing. Touch free, hygienic operation.
- No extra products required (ex. refillable gel, sealing liquid, etc.).
- Easy to clean with your favorite cleaning product. One fixture can help you save up to 40,000 gallons of water annually.
- Easy installation and maintenance.
- This product can be used to help achieve water efficiency goals as well as gaining USGBC LEED points.
MATERIALS:
- High-gloss vitreous china.
- Durable and scratch-resistant finish.
ACCESORIES
Waterless device.
Fixing kit and wall bracket. 01 ½” – 2″ rubber gasket. Maintenance key.
CONNECTION:
To the drain pipe 02″.
CODES AND STANDARDS:
ASME A112.19.2 / CSA B45.1-2018 –
Ceramic Plumbing Fixtures
ASME A112.19.19
FINISHINGS:
W White

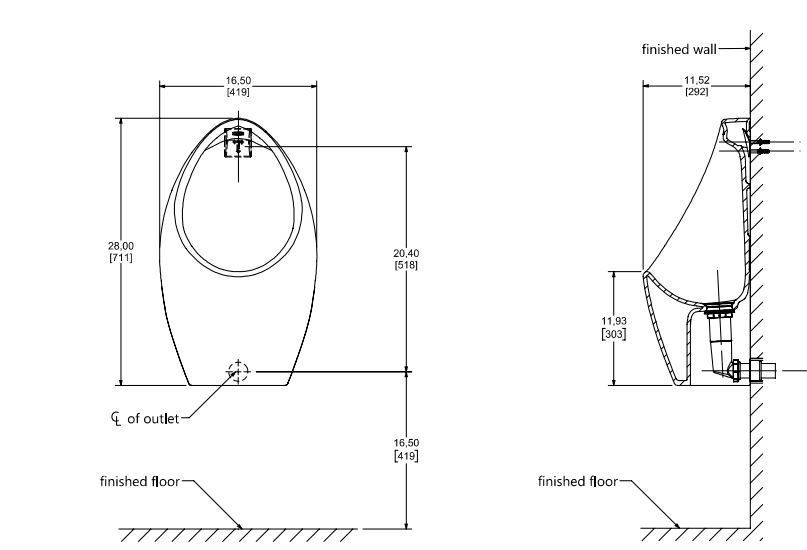

Estimated Dimensions Dim. inch. [mm]
MAXIMUM FLOW RATE: OGPM
NOTES:
Install the product according to the Installation Guide.
Technical Support and Service Original Spare Parts
Toll Free Number: (855) 267 2498 [email protected]
The product’s illustration may vary in appearance or its parts to the actual product as a result of the ongoing improvement process. This does not imply any liability to the manufacturer.
Visit our website www.helvexusa.com
