Haws 1117LN Resistant Dual Fountain and Bottle Filler Instructions

Haws 1117LN Resistant Dual Fountain and Bottle Filler.png



THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

NOTES:

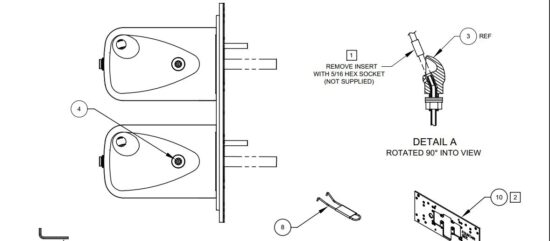

  1. ENSURE TUBE IS DISCONNECTED FROM PUSH BUTTON VALVE BODY PRIOR TO REMOVAL. APPLY ONE DROP OF LOCTITE 222MS TO NOZZLE THREADS PRIOR TO FASTENING BACK ONTO BUBBLER HEAD. RE-ATTACH TUBE TO VALVE.

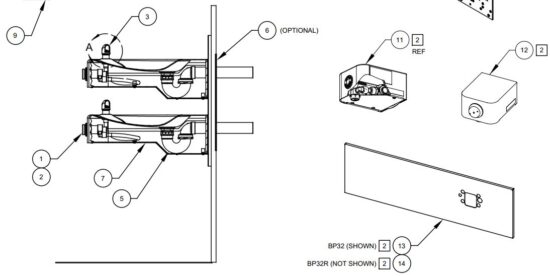

  2. ITEMS 10 THRU 14 ARE OPTIONAL AND CAN BE CONFIGURED
    TO ADD EITHER A HANDS-OFF (1920HO) OR PUSH BUTTON (1920) BOTTLE FILLER, MOUNTED ON R.H. SIDE OF BACK PANEL (BP32) OR L.H. SIDE (REVERSED) OF BACK PANEL (BP32R) ON DUAL FOUNTAIN MODEL 1117LN.

FIG 1.JPG

FIG 2.JPG

FIG 3.JPG

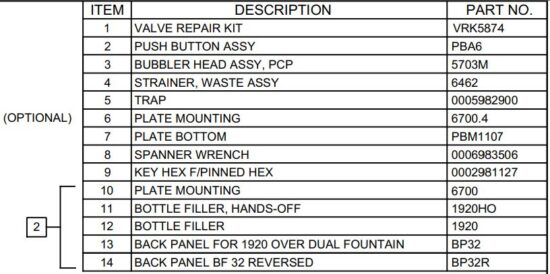

PARTS BREAKDOWN

WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.

FIG 4.JPG



Haws Corporation – All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
