HAOWKI Baby Bed Rail Safety Guard Instruction Manual

IMPORTANT : Please keep this manual for future use. Do not use when any part is missing.
Make sure it’s installed right by adult

Feel the hard while attaching the guard. It is required for its good quality

A. 3 capsule steel tube

B. 2 Eblow steel tube

C. 2 Two side ambose steel tube

D. 2 Double hole straight steel tube

E. 2 Steel tube connected with plastic for both side

F. 2 Capsule tube plastic connector

G. Fabric cover

1. Find the part A & F, connect the 3 capsule tube by 2 plastic connector. See image-1

2. Find the part B & C , two elbow steel tube connect with two side ambose steel tube. See image-2

3. Find the part D & C, two double hole straight steel tube connect with two side ambose steel tube. See image-3

4. Find the part 2 & G, (part 2) elbow steel tube to pass top of fabric cover. See image-4

5. Find the part 4 & 3, two double hole straight steel tube connect with two side ambose steel tube to pass bottom of fabric cover. See image-5

6. Find the part 1 & E, 3 capsule tube connect with 2 Steel tube connected with plastic both side. See image-6

7. Find the part 5 & 6, 2 Steel tube connected with plastic connect to elbow steel tube both side. See image-7

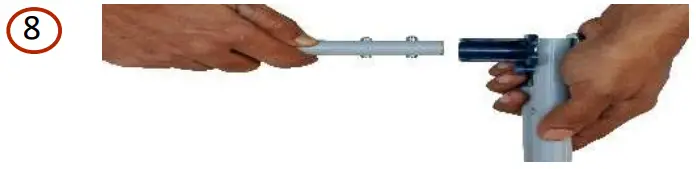

8. Find the part 7 , 2 Steel tube connected with plastic connect to two double hole straight steel tube. See image-8

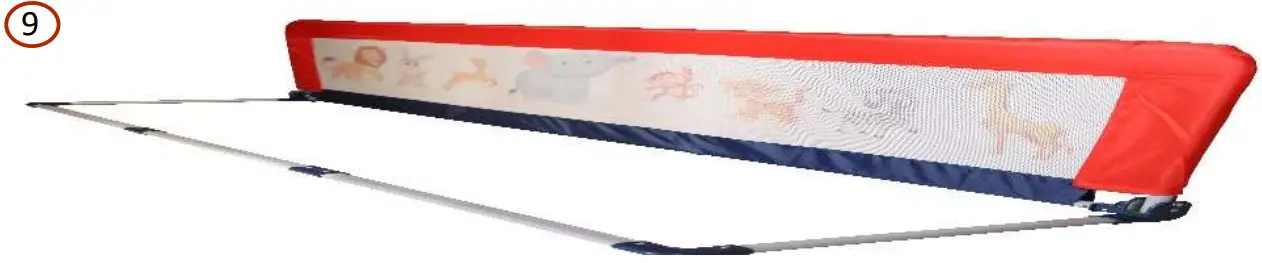

9. All part are connected now up your bad mattress and put baby guard rail bellow to mattress. See image-9
