hansgrohe Talis S2 Series
Safety Notes
- Gloves should be worn during installation to prevent crushing and cutting injuries.
- The shower system may only be used for bathing, hygienic and body cleansing purposes.
- The hot and cold supplies must be of equal pressures.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
Technical Data
This mixer series-produced with EcoSmart® (flow limiter)
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5 MPa
- Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI) - Hot water temperature: max. 80°C
- Recommended hot water temp.: 65°C
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Symbol description
To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.
Do not use silicone containing acetic acid!

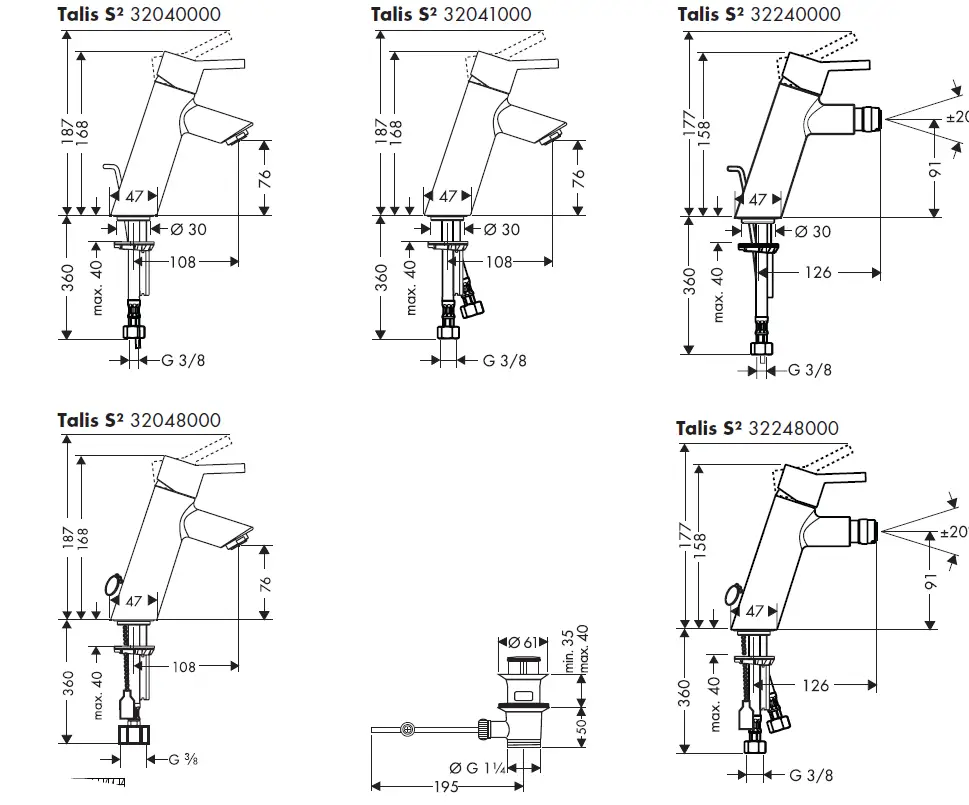

Dimensions
(see page 34)
Flow diagram
(see page 34)
with EcoSmart®
without EcoSmart®
Spare parts (see page 36)
Special accessories
special tool 58085000 (order as an extra)
Installation kit (order as an extra)
seal 98996000 (order as an extra)
Operation (see page 35)
Cleaning see enclosed brochure Test certificate (see page 35)

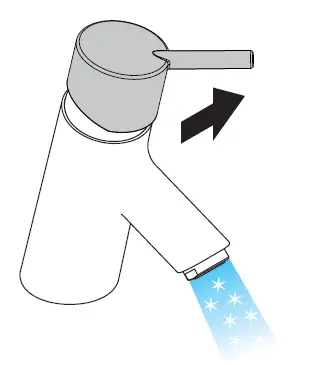

open

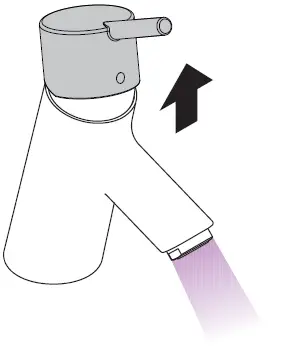

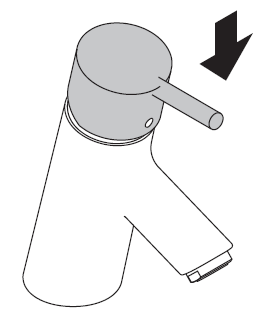

close
cold
hot
