Instructions for use / assembly instructions
Unica’S Puro
28631XXX / 28632XXX
Raindance S Combi
27075000 / 27076000
27077000
Raindance S 100 AIR 3jet/Unica’S Puro Set
27880000 /27882000
Raindance S 120 AIR 3jet/Unica’S Puro Set
27884000 / 27886000
Raindance S 150 AIR 3jet/Unica’S Puro Set
27895000 / 27898000
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
Children as well as adults with physical, mental and/or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The product may not be used as a holding handle. A separate handle must be installed.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
Shower hoses are only suitable for a connection from the shower to the fitting. Never fit a shut-off device between the fitting and the hose.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
- The mesh washer must be insert to protect the over-head shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.
Technical Data
Operating pressure: max. 0,6 MPa
Recommended operating pressure: 0,1 – 0,4 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Symbol description
Do not use silicone containing acetic acid!
Dimensions
Flow diagram
Operation

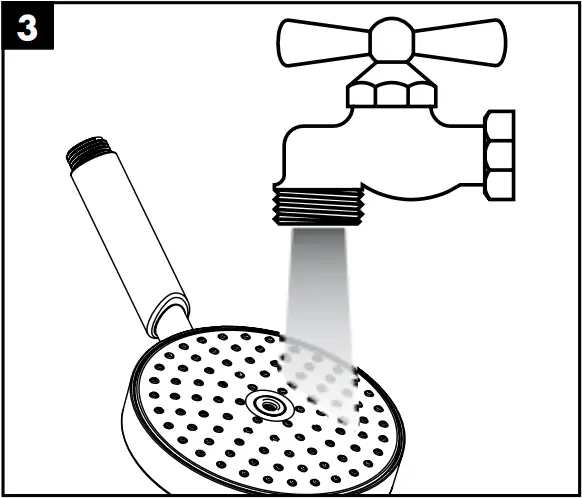

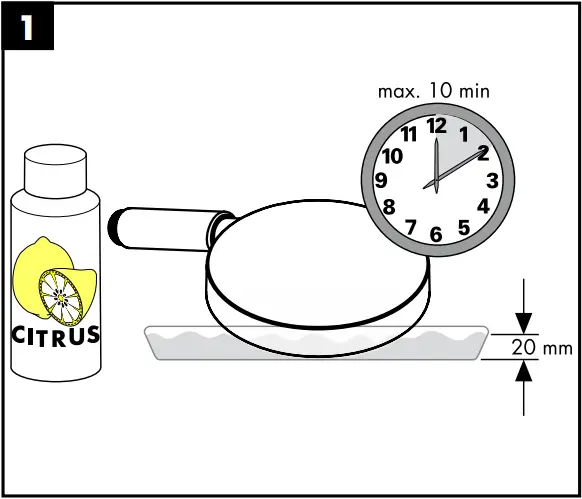

Cleaning enclosed brochure
Spare parts
XXX = Colors
000 = chrome plated
820 = brushed nickel
880 = satin chrome
Test certificate
Assembly

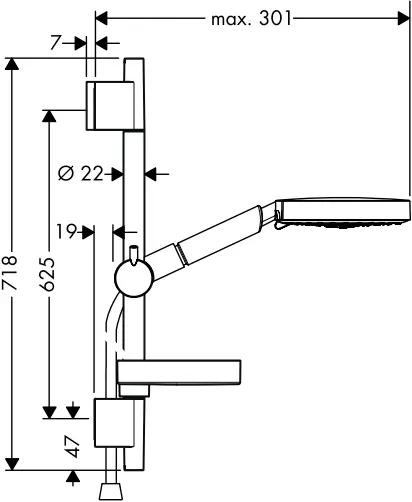

Dimensions
Unica’S Puro
28631XXX
Unica’S Puro
28632XXX
Raindance S 100 AIR 3jet / Unica’S Puro
27880000
Raindance S 100 AIR 3jet / Unica’S Puro
27882000
Raindance S 120 AIR 3jet / Unica’S Puro Set
27884000
Raindance S 120 AIR 3jet / Unica’S Puro Set
27886000
Raindance S 150 AIR 3jet / Unica’S Puro Set
27895000
Raindance S 150 AIR 3jet / Unica’S Puro Set
27898000
Raindance S Combi
27075000
Raindance S Combi
27076000
Raindance S Combi
27077000
Raindance S 100 AIR 3jet
28504000
Raindance S 150 AIR 3jet
28519000
Raindance S 120 AIR 3jet
28514000
Flow diagram
Raindance S 100 AIR 3jet 28537000
Raindance S 120 AIR 3jet 28514000
Raindance S 150 AIR 3jet 28519000
Assembly
Operation
Cleaning
Spare parts
- Raindance S 100 AIR 3jet
28504000 - Raindance S 120 AIR 3jet
28514000 - Raindance S 150 AIR 3jet
28519000
Test certificate
|
|
P-IX | DVGW | SVGW | WRAS | KIWA | NF | ACS | ETA |
|
27075000 |
||||||||
| 27076000 |
X |
|||||||
| 27077000 | ||||||||
| 28631XXX |
X |
|||||||
| 28632XXX |
X |
|||||||
| 27880000 | ||||||||
| 27882000 |
X |
|||||||
| 27884000 | ||||||||
| 27886000 |
X |
|||||||
| 27895000 | ||||||||
| 27898000 |
