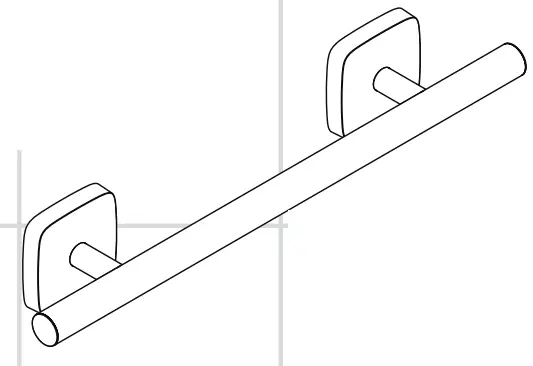

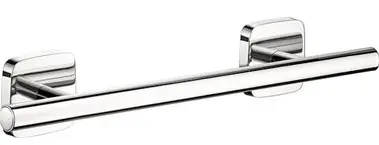

hansgrohe PuraVida Handrail
Contents
OTHER MODELS
- PuraVida 41501000
- PuraVida 41513000 41506000
- PuraVida 41512000
- PuraVida 41518000
- PuraVida 41503000
- PuraVida 41502000
- PuraVida 41508000
- PuraVida 41504000
- PuraVida 41505000
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
Intended use of the handle 41513XXX: The handle is not a medical product, it is not intended for physically impaired persons, but only for general private use.
Use only the handle for support, the remaining products are not intended to be used as supports.
Check the proper attachment and tight seating of the installed products periodically (annually
Installation Instructions
Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
Symbol description
Do not use silicone containing acetic acid!

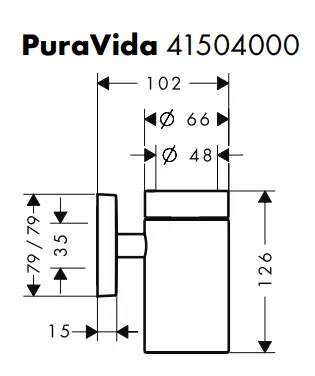

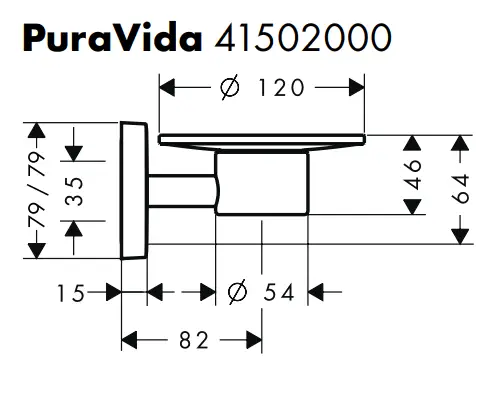

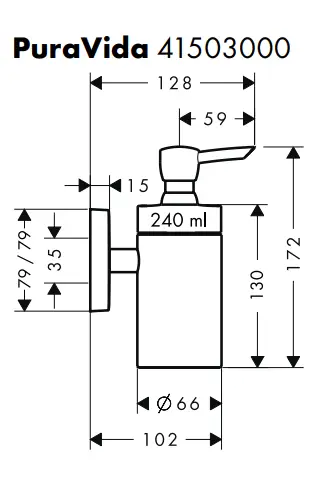

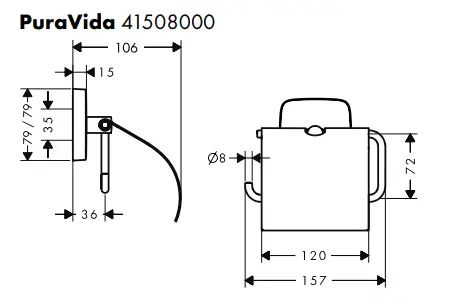

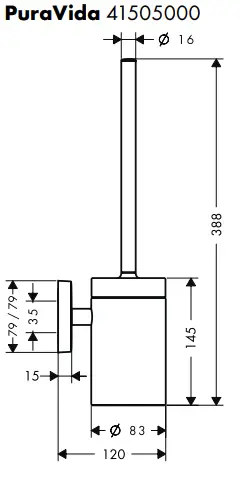

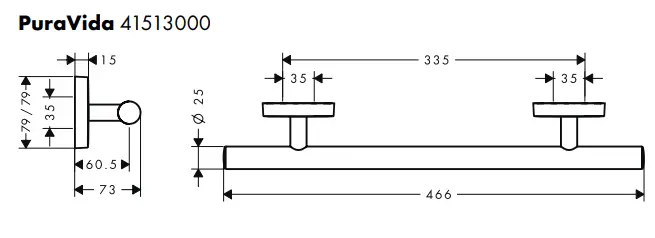

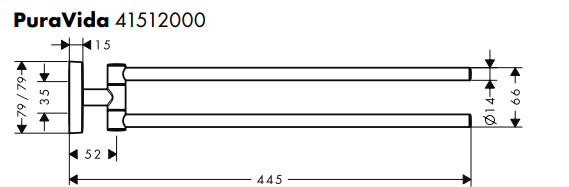

Dimensions
(see page 16-17)
The glass could be of a different size as illustrated due to it being blown by mouth.

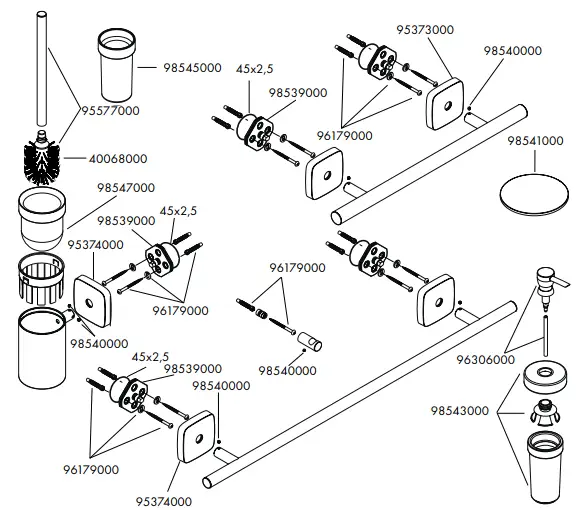

Spare parts
(see page 20)
Cleaning
(see page 20) enclosed brochure

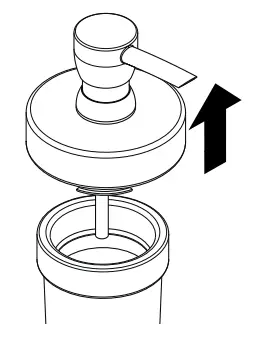

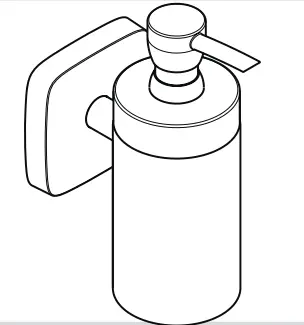

Lift off pump and lid for filling and cleaning

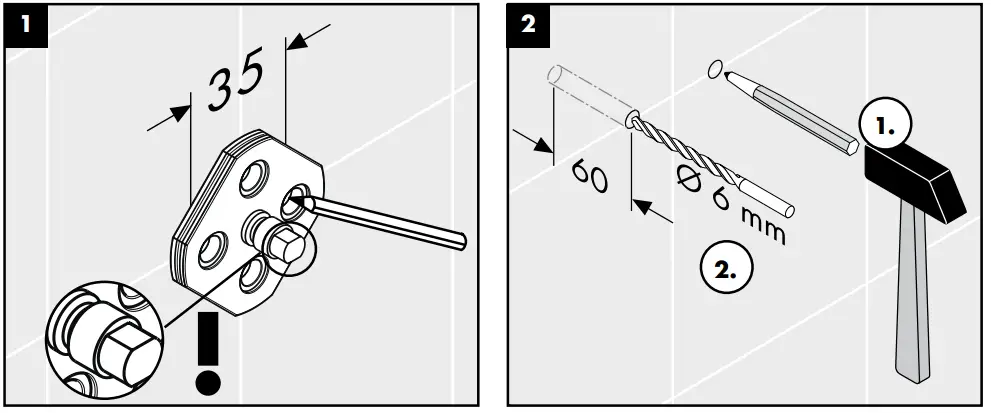

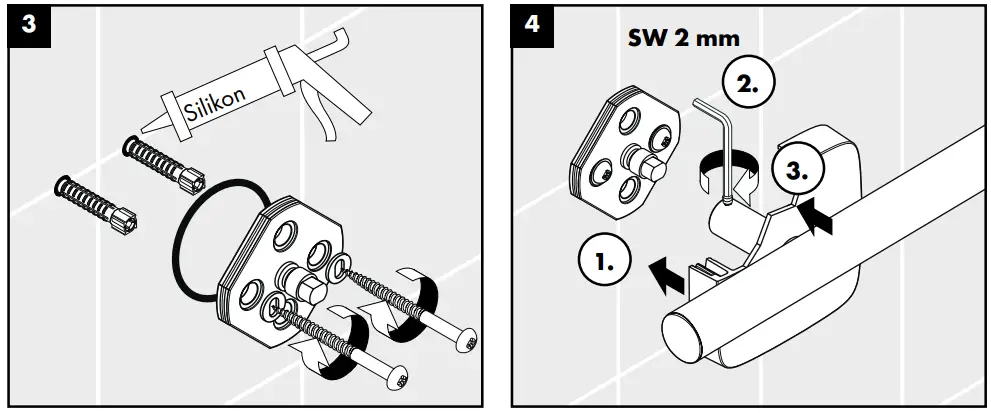

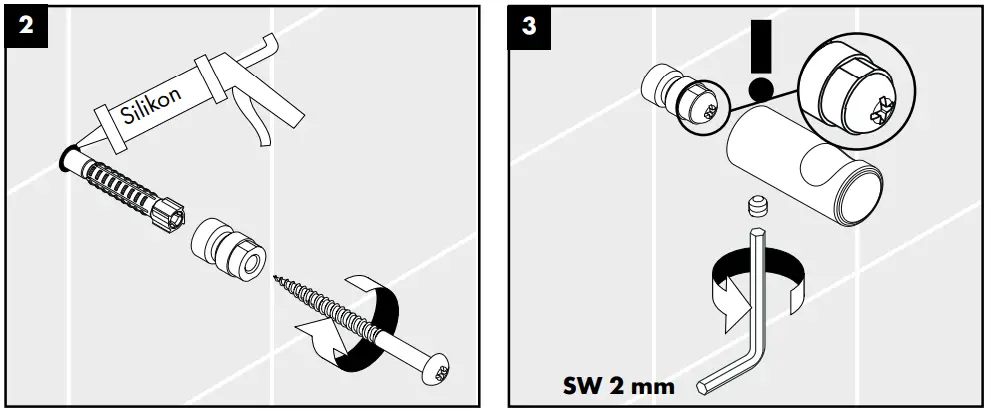

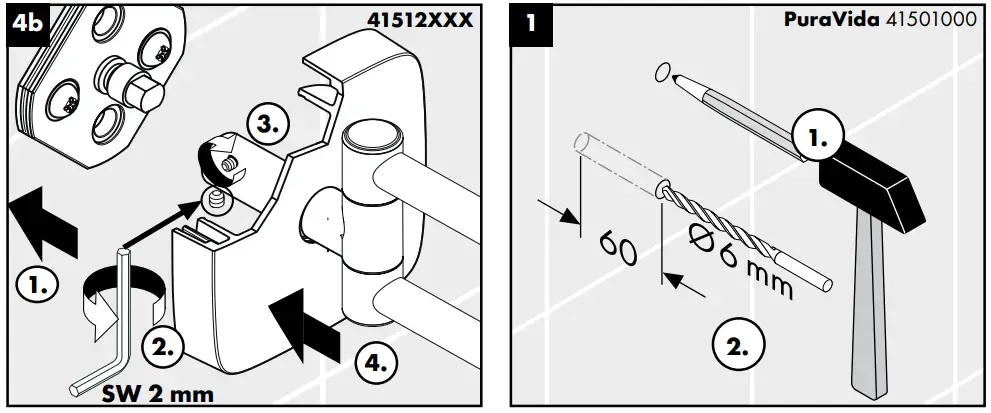

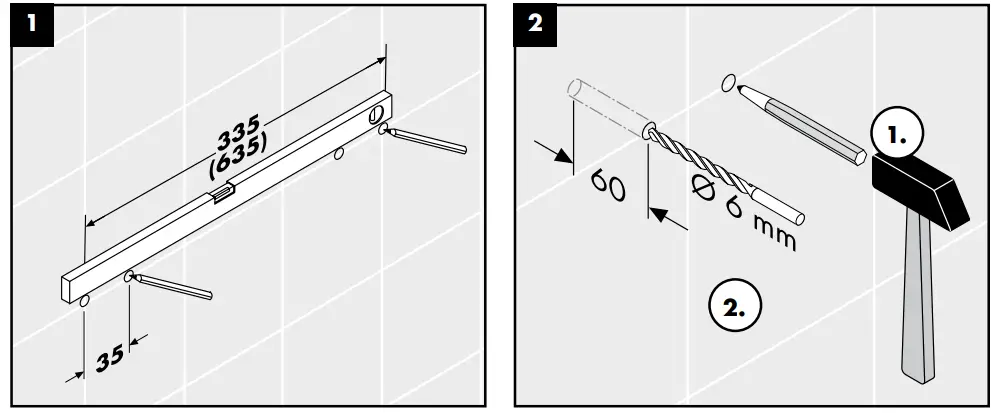

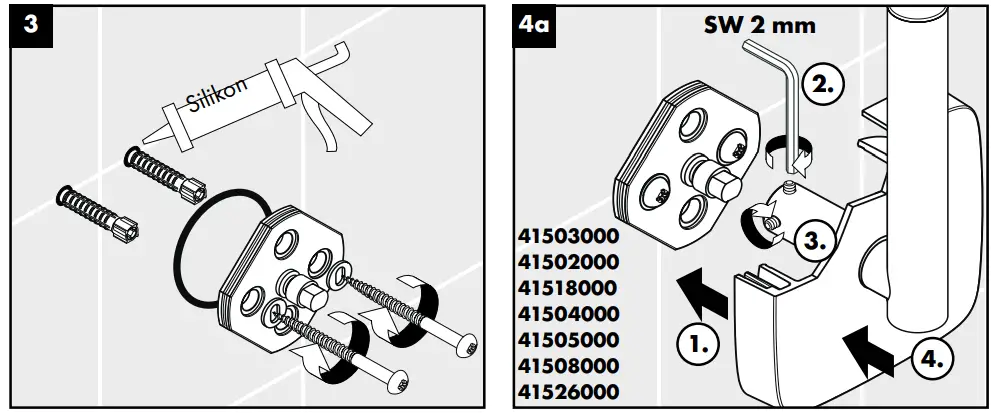

Assembly
(see page 18)
PuraVida 41512000/41503000/41502000/41518000/41504000/41505000/41508000/4152600
PuraVida 41506000/41513000
Customer Service
Hansgrohe · Postfach 1145
D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
