hansgrohe LOGIS Classic Holders
Contents
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
Intended use of the handle 41613XXX: The handle is not a medical product, it is not intended for physically impaired persons, but only for general private use.
Use only the handle for support, the remaining products are not intended to be used as supports.
Check the proper attachment and tight seating of the installed products periodically (annually).
Installation Instructions
Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
Symbol description
- Do not use silicone containing acetic acid!
- Dimensions
- Spare parts
- Cleaning

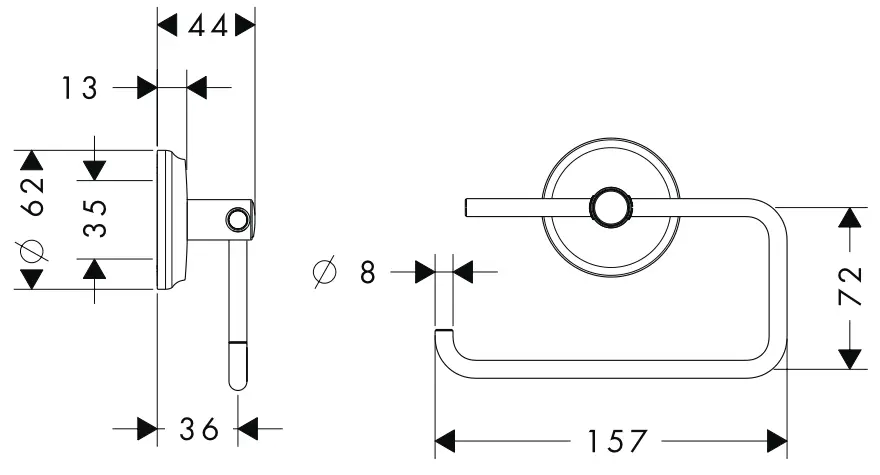

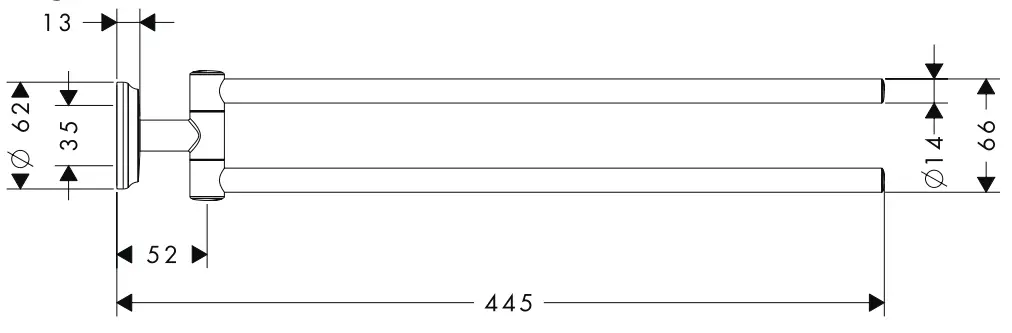

Dimensions
The glass could be of a different size as illustrated due to it being blown by mouth.
Logis C 41623XXX
Logis C 41626XXX
Logis C 41617XXX
Logis C 41632XXX
Logis C 41618XXX
Logis C 41612XXX
Logis C 41614XXX
Logis C 41615XXX
Logis C 41611XXX
Logis C 41613XXX
Logis C 41613XXX
Logis C 41616XXX

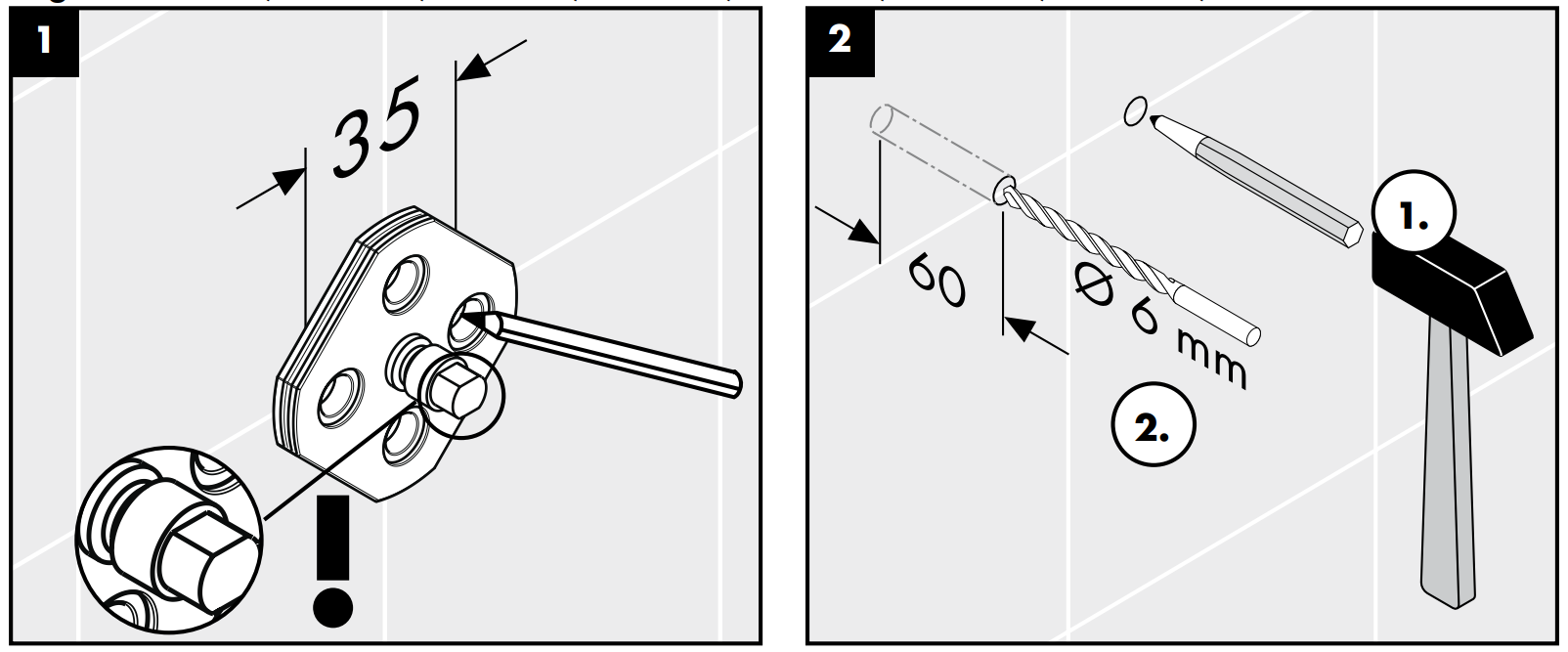

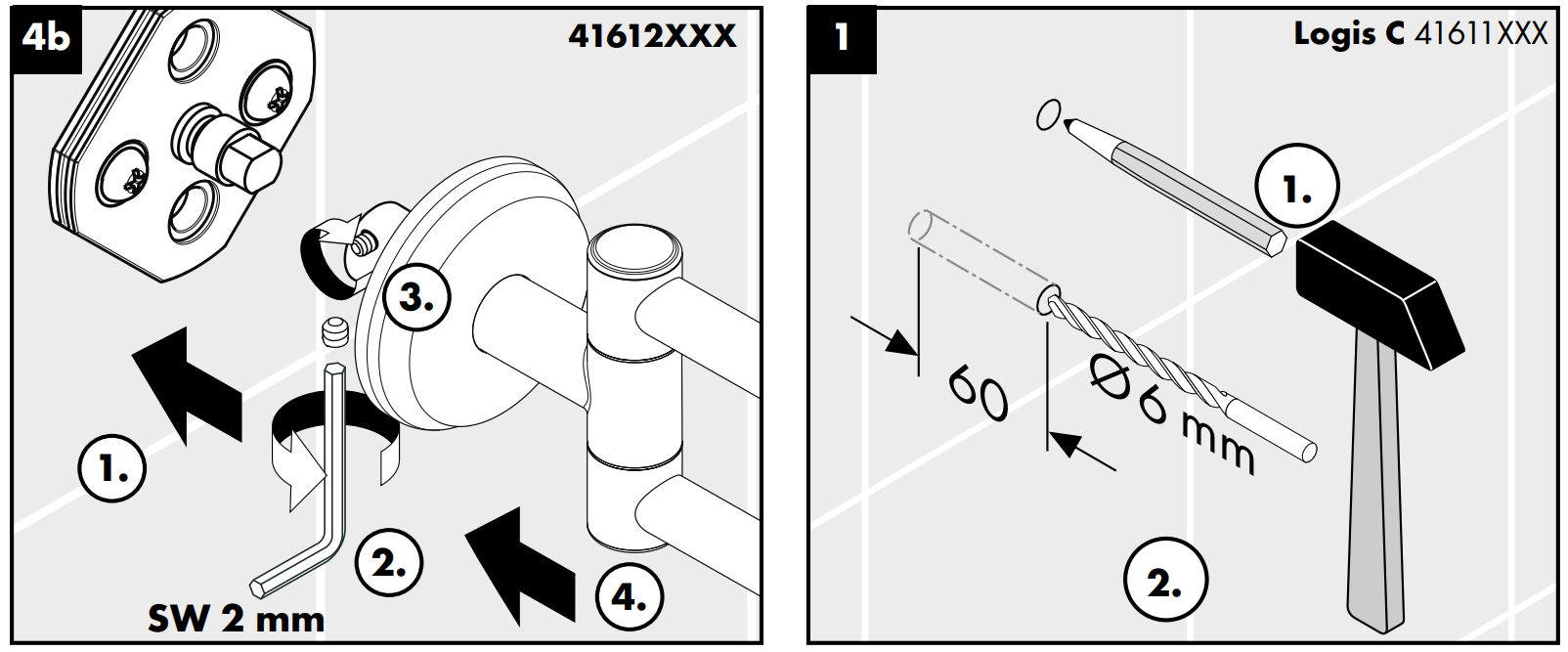

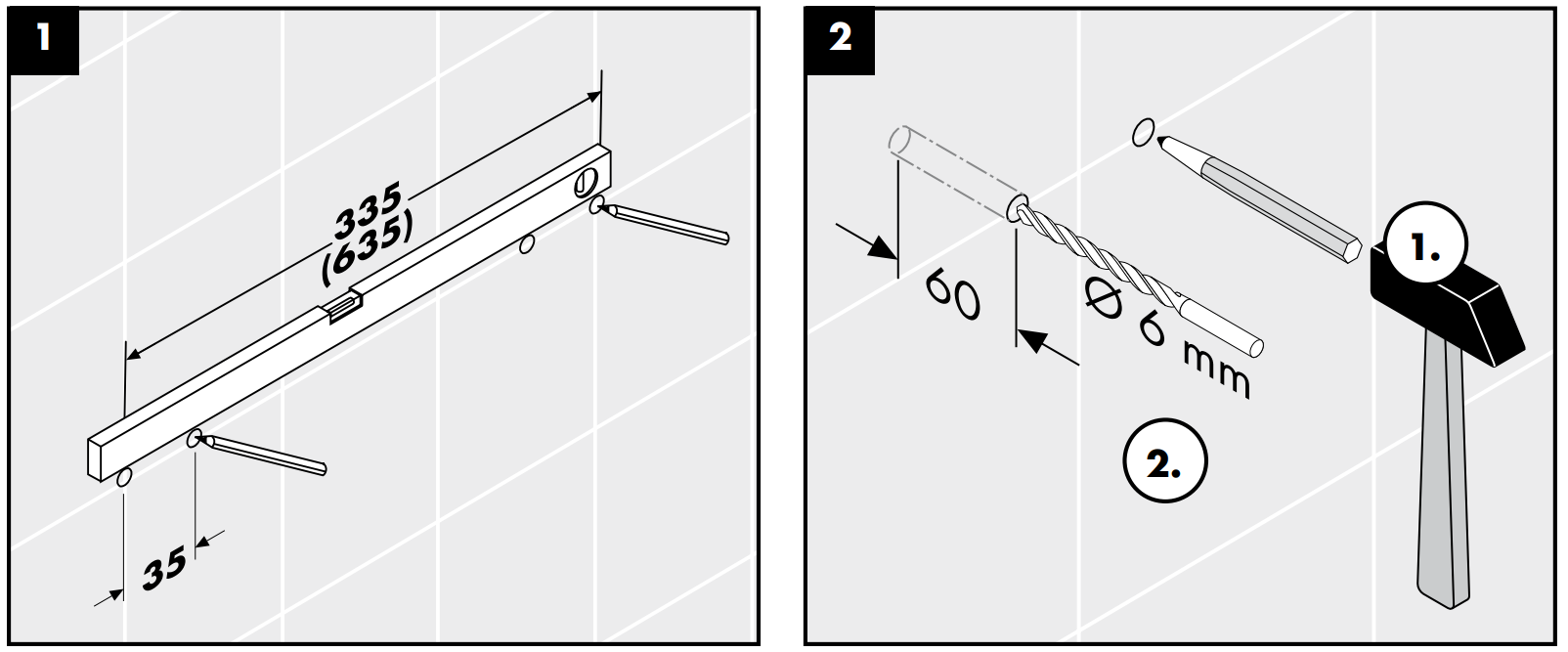

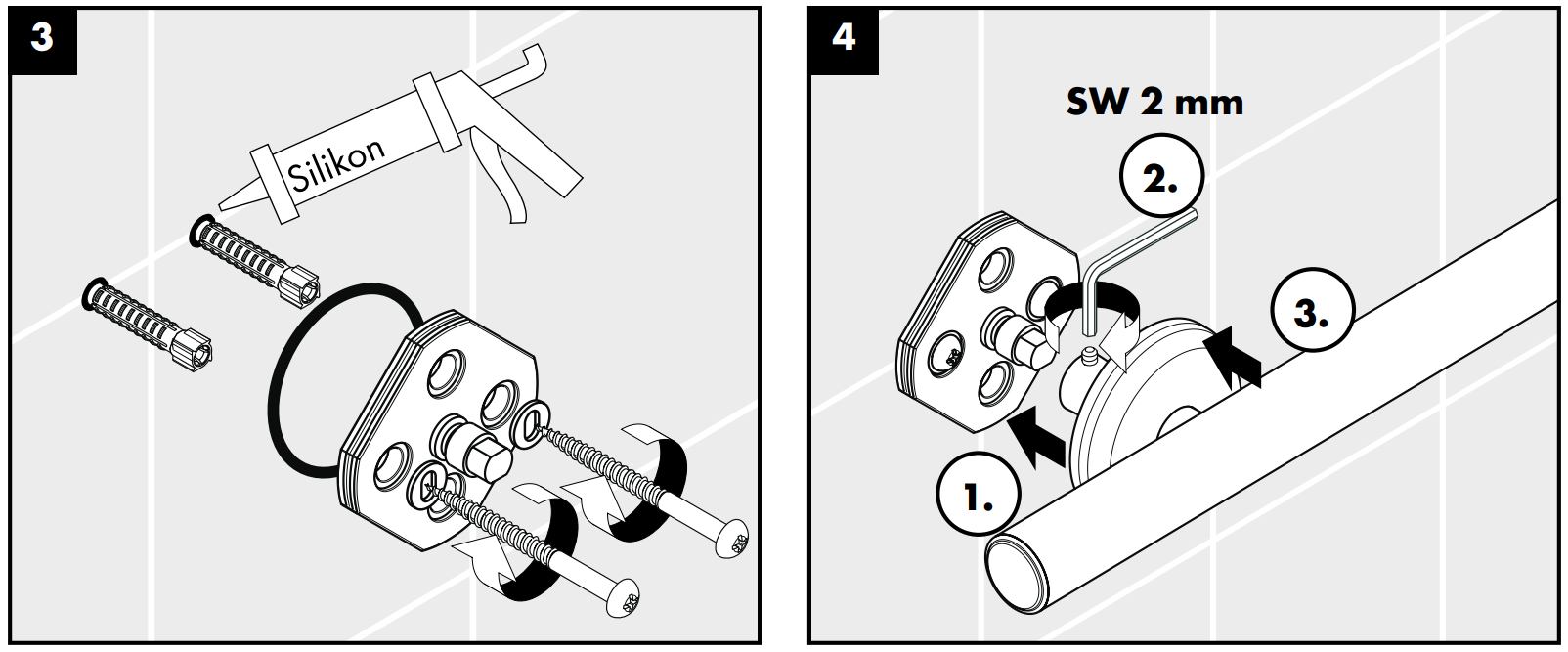

Assembly
Logis C 41612XXX/41614XXX/41615XXX/41617XXX/41618XXX/41623XXX/41626XXX/41632XXX
Logis C 41613XXX/41616XXX
Spare parts
XXX = Colors
000 = chrome plated
820 = brushed nickel
Cleaning

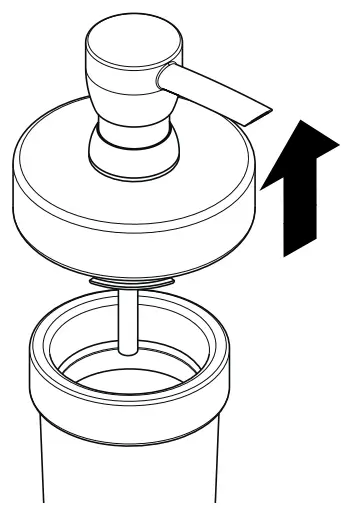

Lift off pump and lid for filling and cleaning
