Instructions for use / assembly instructions

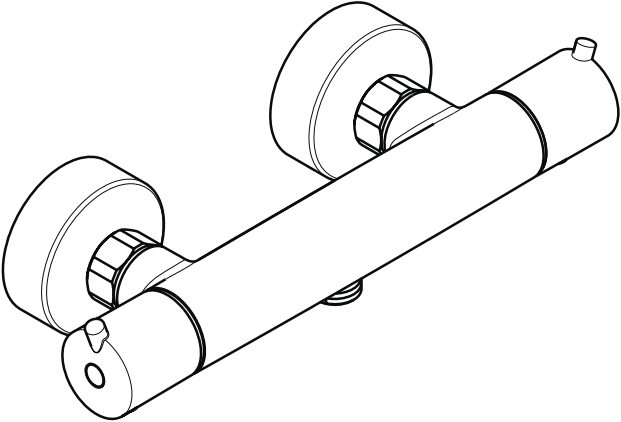

Ecostat E
13125000 / 13126000

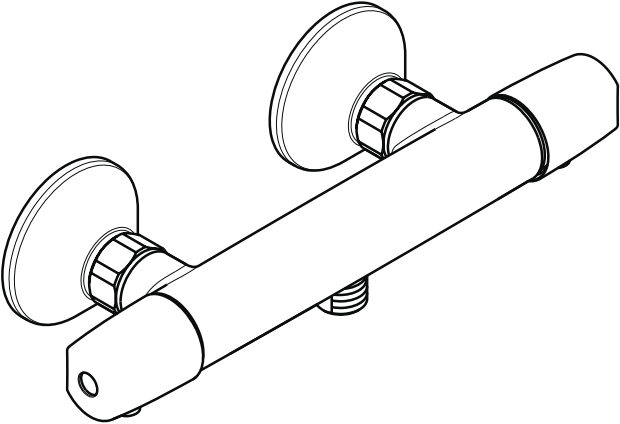

Ecostat S
13235000 / 13236000

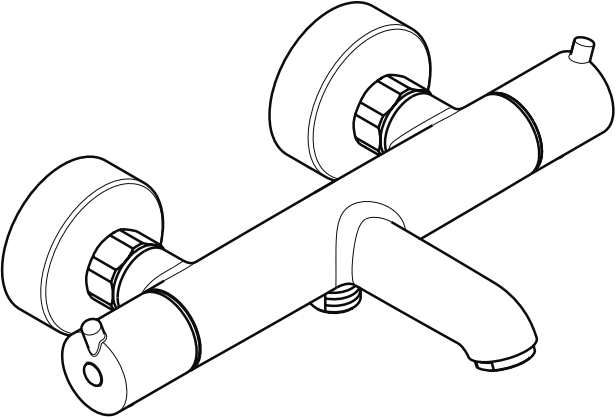

Ecostat E
13145000 / 13124000

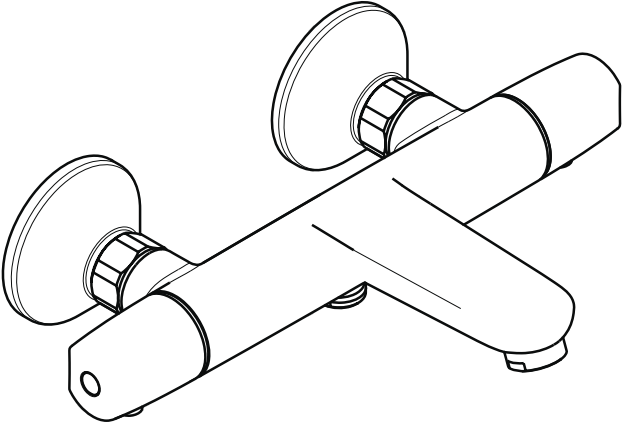

Ecostat S
13245000 / 13144000
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
Children as well as adults with physical, mental and/ or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
The hot and cold supplies must be of equal pressures.
Installation Instructions
The fitting must be installed, flushed and tested after the valid norms!
Thermostatic mixer in conjunction with combination boilers
- If fitting a hand shower remove the water limiter from the shower.
- If the continuous water heater causes any problems, or you have different water pressures you must install a water limiter to the cold supply, (ordered separately, article number 97510000).
- Thermostatic mixer Shower: When mounting the ECOSTOP limit stop washer (Art. No. 98916000) in connection with flow heaters, turn it axially through 180° before attaching it.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5MPa
Test pressure: 1,6MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
anti-pollution function
Symbol description
Do not use silicone containing acetic acid!

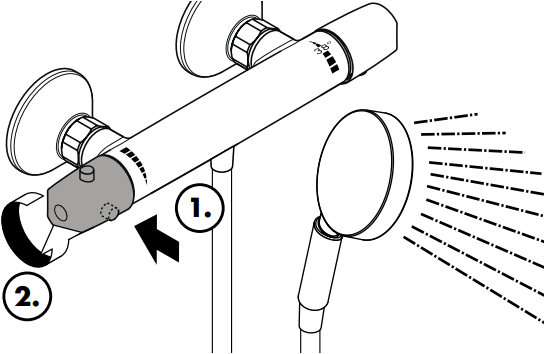

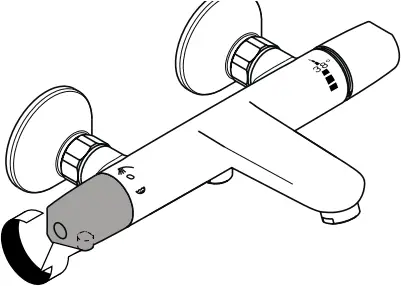

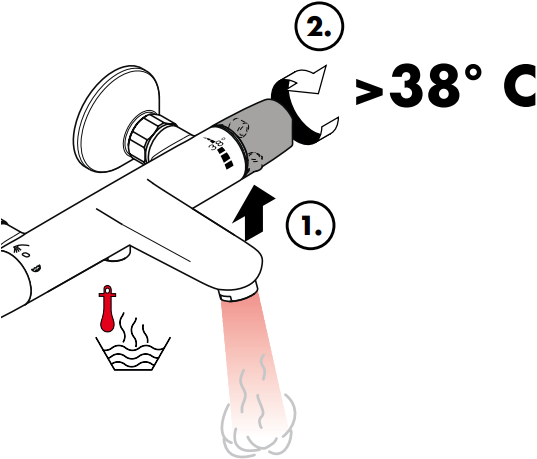

Safety Function
The desired maximum temperature for example max. 42º C can be pre-set thanks to the safety function.

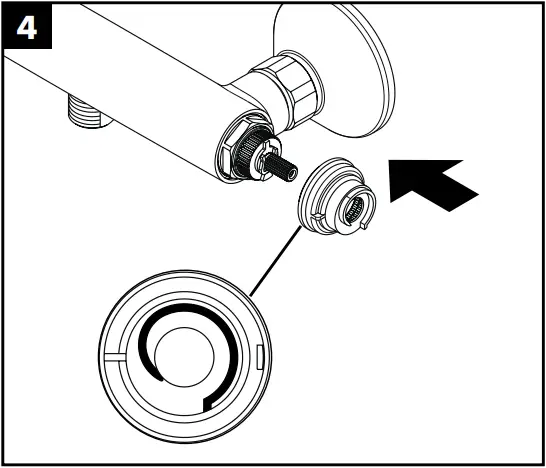

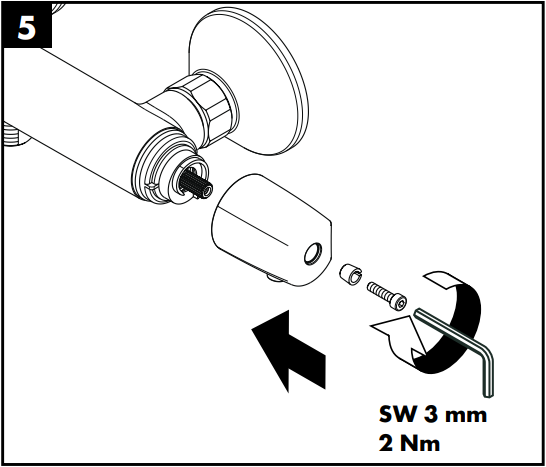

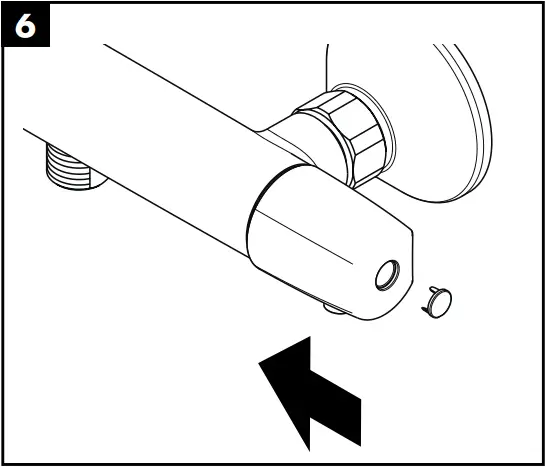

Adjustment
After the installation, the output temperature of the thermostat must be checked. A correction is necessary if the temperature measured at the output differs from the temperature set on the thermostat.
ECOSTOP
Maintenance
- To guarantee the smooth running of the thermostat, it is necessary from time to time to turn the thermostat from total hot to total cold.
- The mixer is equipped with non return valves. The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).

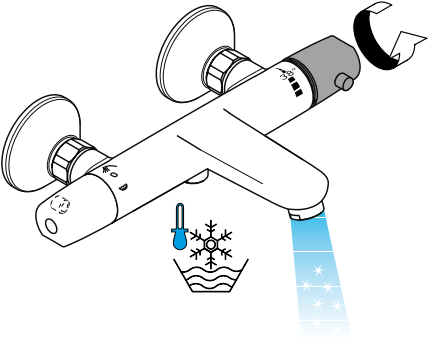

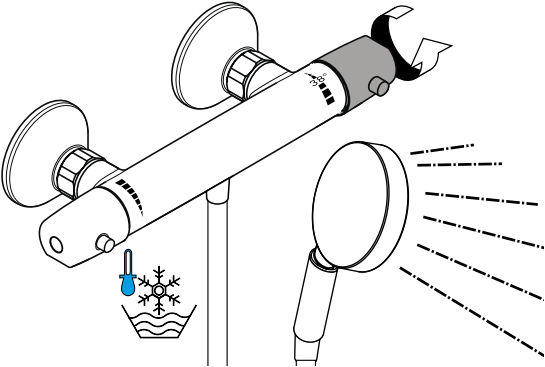

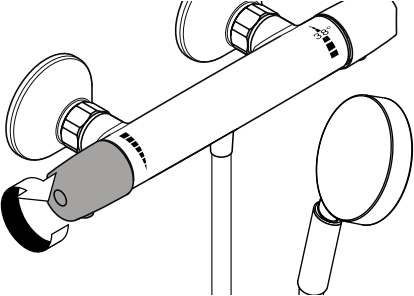

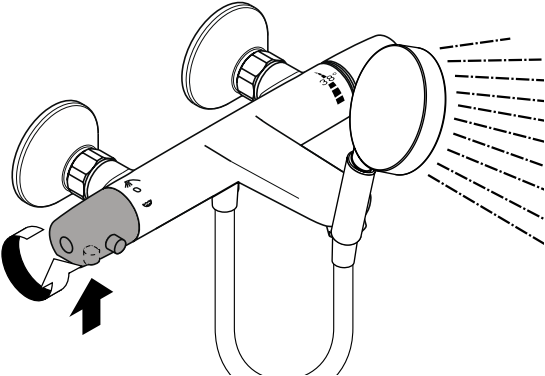

Operation
Dimensions
Flow diagram
(1) Shower
(2) Bath tub
Spare parts
Test certificate
| Fault | Cause | Remedy |
| Insufficient water | – Supply pressure inadequate | – Check water pressure (If a pump has been installed check to see if the pump is working). |
| – Filters are dirty (96922000) | – Clean filter in front of the mixer and on the MTC-thermo cartridge (96922000) | |
| – Shower filter seal dirty | – Clean filter seal between shower and hose | |
| Crossflow, hot water being forced into cold water pipe, or vice versa, when mixer is closed | – Backflow preventers dirty or leaking | – Clean backflow preventers, exchange if necessary |
| Spout temperature does not correspond with temperature set | – Thermostat has not been adjusted | – Adjust thermostat |
| – Hot water temperature too low | – Increase hot water temperature to 42 ºC to 65 ºC | |
| Temperature regulation not possible | – thermo cartridge calcified | – Exchange thermo cartridge |
| Shower or spout dripping | – Dirt or sedimentation on valve seat, shut-off unit damaged | – Clean or exchange shut-off unit |
| Instantaneous heater didn’t work with thermostat | – Ecostop limit stop – washer not turned – axially through 180 |
– Turn the limit stop washer – (98916000) axially through 180° |
| – Flow limiter in handshower isn’t removed | – Remove flow limiter | |
| – Filters are dirty | – Clean the filter / exchange filter | |
| – Non return valve hasn’t moved back | – Exchange non return valves |
Assembly
Assembly
Safety Function
Adjustment
ECOSTOP
Maintenance
Operation
open
hot
cold
close
open
hot
cold
close
Dimensions
Ecostat E 13125000
Ecostat E 13126000
Ecostat E 13124000
Ecostat E 13145000
Ecostat S 13235000
Ecostat S 13236000
Ecostat S 13144000
Ecostat S 13245000
Flow diagram
Ecostat E
13124000 / 13145000
Ecostat S
13144000 / 13245000
Ecostat E
13125000 / 13126000
Ecostat S
13235000 / 13236000
Spare parts
Ecostat E 13145000 / 13124000
Ecostat E 13125000 / 13126000
Ecostat S 13245000 / 13144000
Ecostat S 13235000 / 13236000
Test certificate
|
PA-IX |
DVGW | SVGW | ACS | WRAS | KIWA |
ETA |
|
| 13124000 | |||||||
| 13125000 |
PA-IX 18988/IB |
BT0641 | X | X | X | X |
X |
| 13126000 | |||||||
| 13144000 | |||||||
| 13145000 |
PA-IX 18986/ICB |
BT0641 | X | X | X | X |
X |
| 13235000 |
PA-IX 18988/IB |
BT0641 | X | X | X | X |
X |
| 13236000 | |||||||
| 13245000 |
PA-IX 18987/ICB |
BT0641 | X | X | X | X |
X |
