hansgrohe AXOR STARCK X
Product Information
The user manual provides information in multiple languages regarding the assembly instructions of various products.
The products listed in the manual are:
- Starck 10410XXX
- Urquiola 11430000 11431000
- Terrano 37410XXX
- Bouroullec 19415000 19416000
- Starck X 10426000
- Citterio M 34410000 34411000
- Uno 38410XXX
- Arco 11410XXX
- Steel 35412800
- Citterio 39410XXX 39411XXX
The manual also provides information on the recommended water pressure and the relevant certifications for each product.
Product Usage Instructions
The assembly instructions for each product are not provided in the manual. However, the manual does mention the use of silicone for installation purposes. It is recommended to use silicone that is free from acetic acid, vinegar-free, or eddikesyre-fri. The manual also mentions that DIN 4109 P-IX certification is required for some products.
It is important to follow the manufacturer’s instructions and use the recommended tools and materials during installation. If you are unsure about any part of the installation process, seek professional help.

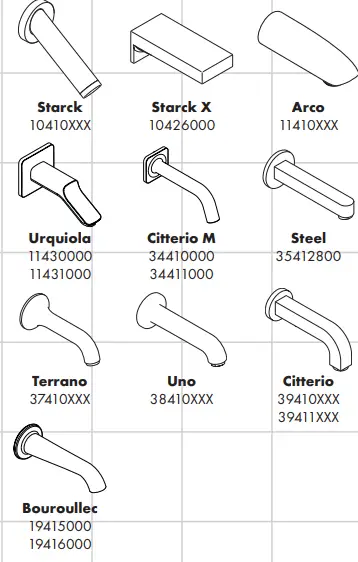

PARTS

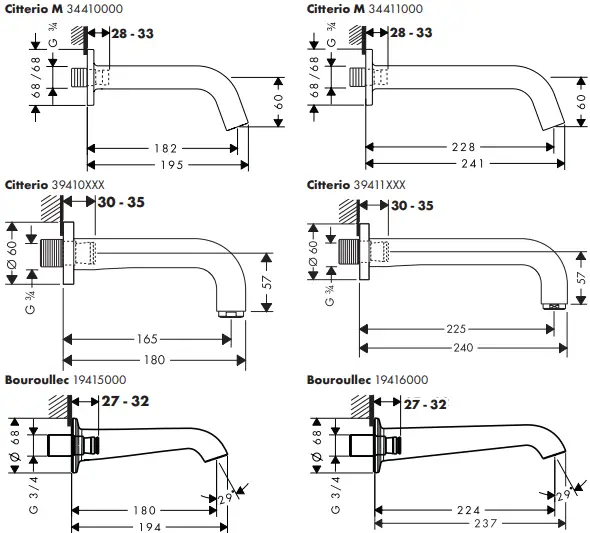

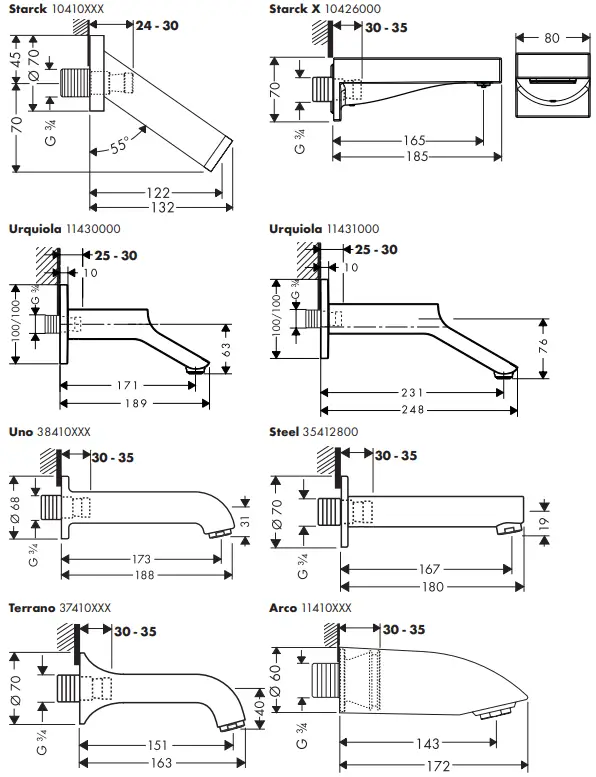

DIMENSIONS
| P-IX | SVGW | ACS | WRAS | |
| 10410000 | X | |||
| 10426000 | 9918/IIO | X | X | |
| 11430000 | 19241/IB | X | X | X |
| 11431000 | 19241/IB | X | X | X |
| 38410000 | 18850/IB | X | X |
| 35412800 | X | ||
| 34410000 | X | X | X |
| 34411000 | X | X | X |
| 37410000 | X | ||
| 11410000 | X | ||
| 39410000 | X | ||
| 39411000 | X | ||
| 19415000 | |||
| 19416000 | |||

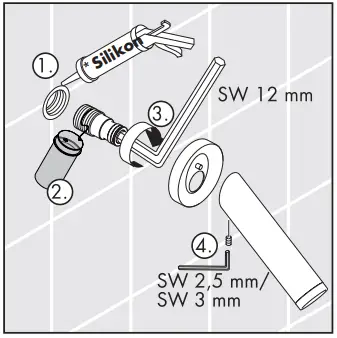

INSTALLATION
