hansgrohe AXOR Starck Holders
Contents
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
The product may not be used as a holding handle.
A separate handle must be installed.
Check the proper attachment and tight seating of the installed products periodically (annually).
Installation Instructions
Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points. The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer’s indications of the dowel manufacturer have to be taken into account.
Symbol description
- Do not use silicone containing acetic acid!
- Dimensions
- Spare parts
- Cleaning
see enclosed brochure.
Dimensions
Starck 40821XXX
Starck 40833XXX
Starck 40834XXX
Starck 40835XXX
Starck 40836XXX
Starck 40837XXX
Assembly
Starck 40821XXX / 40833XXX / 40834XXX / 40835XXX / 40837XXX
Starck 40836XXX
Spare parts
XXX = Colors
000 = chrome plated
820 = brushed nickel
Other Models
Starck
40821XXX
Starck
40833XXX
Starck
40834XXX
Starck
40837XXX
Starck
40835XXX

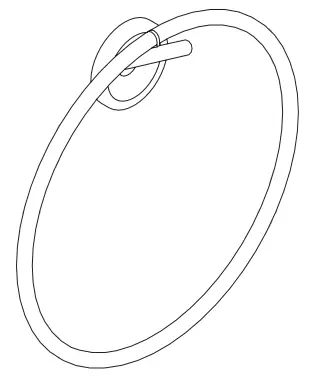

Starck 16
40836XXX
