hansgrohe AXOR 34134000 Citterio M Instruction Manual

Contents

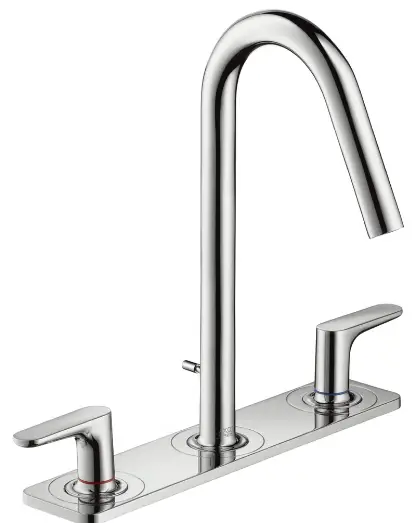

hansgrohe AXOR 34134000 Citterio M

Product Information

The product is a shower system with installation and usage instructions available in multiple languages including German, French, English, Italian, Spanish, Dutch, Danish, Polish, Chinese, Russian, Swedish, Lithuanian, Croatian, Turkish, Romanian, Greek,
Slovenian, Estonian, Latvian, Serbian, Norwegian and Bulgarian.

The product has technical specifications including:

Operating pressure: max. 1 MPa
Recommended operating pressure: 1.6 MPa
Test pressure: 1.6 MPa
Hot water temperature: Recommended hot water temp.

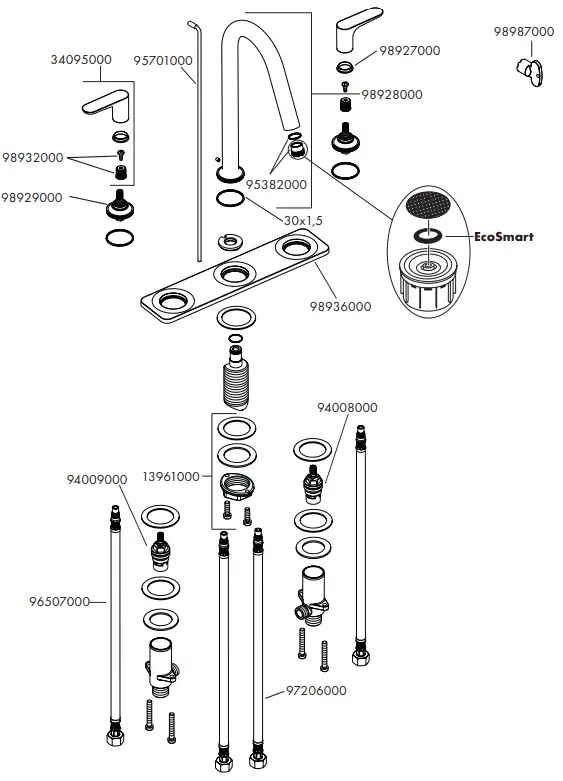

The shower system also comes with spare parts and special accessories including a special tool (58085000) that needs to beordered separately and an installation kit that is not included in the delivery.

Product Usage Instructions

When installing the product, it is recommended to wear protective gloves to prevent crushing and cutting injuries. The shower system should only be used for bathing, hygienic and body cleansing purposes. It is important to ensure that the hot and cold water supplies have equal pressures.

The product comes with a flow diagram that needs to be referred to during installation. The product should not be used with silicone containing acetic acid. The recommended hot watertemperature should be followed when using the shower system.

The operation and cleaning instructions are also available in the enclosed brochure that comes with the product. The assembly instructions are provided on page 31 of the user manual.

Safety Notes

Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.

Installation Instructions

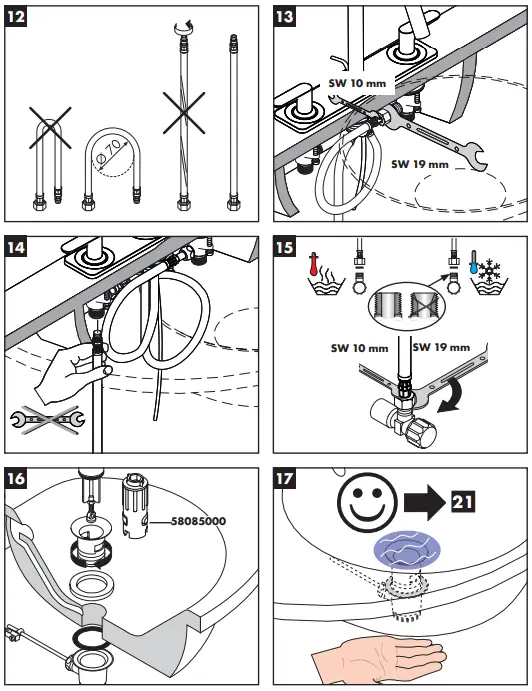

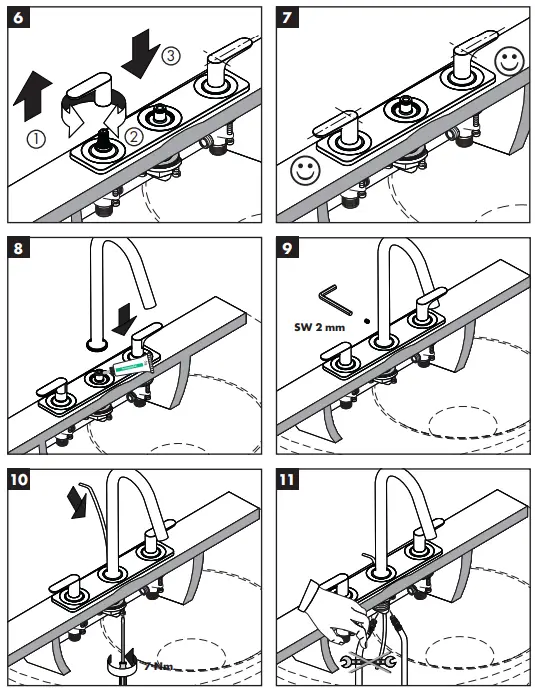

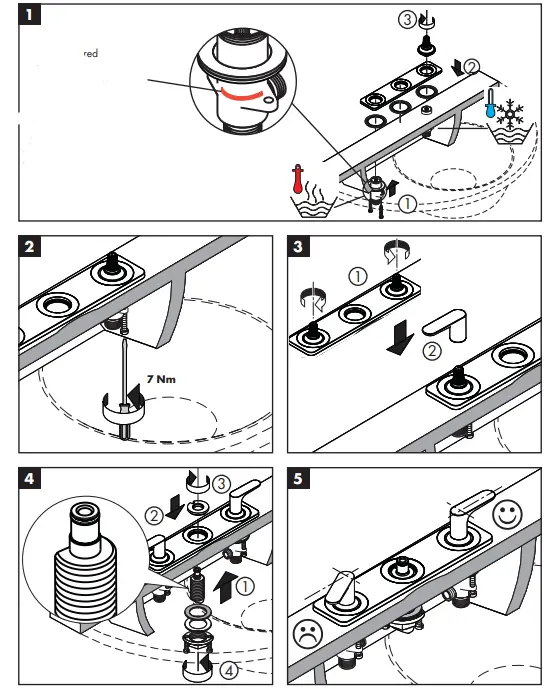

The fitting must be installed, flushed and tested after the valid norms.

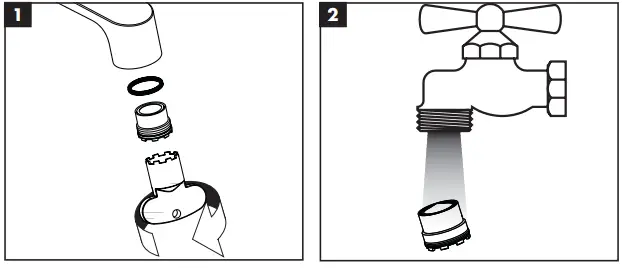

If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.

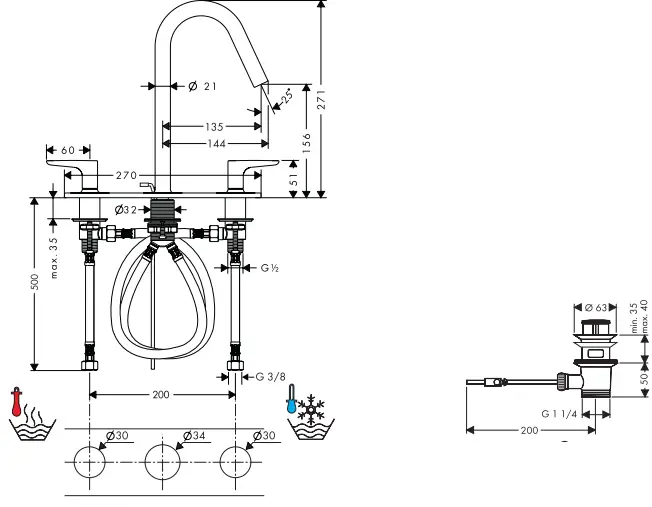

Technical Data

This mixer series-produced with EcoSmart® (flow limiter)

Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 – 0,5 MPa
Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C

Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

Symbol description

Do not use silicone containing acetic acid!
