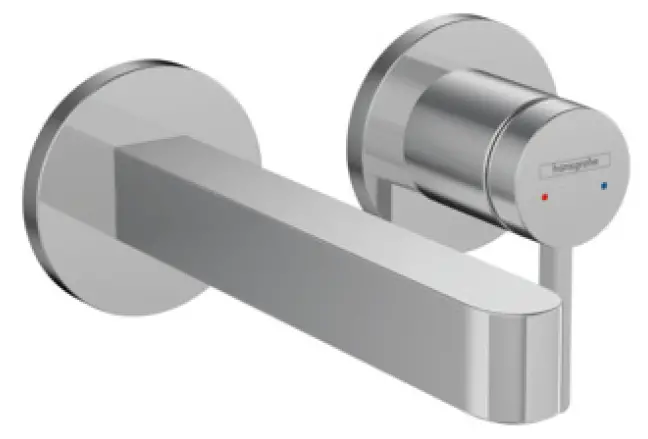

hansgrohe 76051000 Finoris Single Lever Basin Mixer
Product Features
- Consists of: single lever basin mixer for concealed installation, waste set
- Spout 168 mm long
- Handle variant: Lever
- Wall-mounted
- Spray pattern: laminar spray
- Maximum flow rate (at 3 bar): 5 l/min
- Ceramic cartridge
- Free flow non-closing waste
- Material waste set: metal
- Handle can be positioned on the right or left, depending on the basic set installation

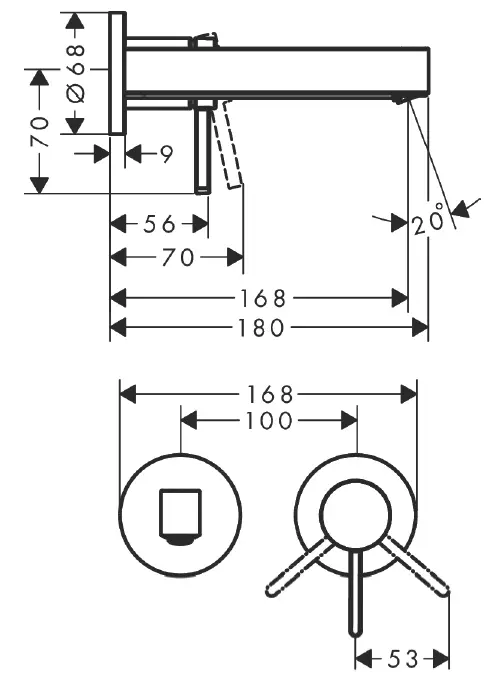

Scale drawing

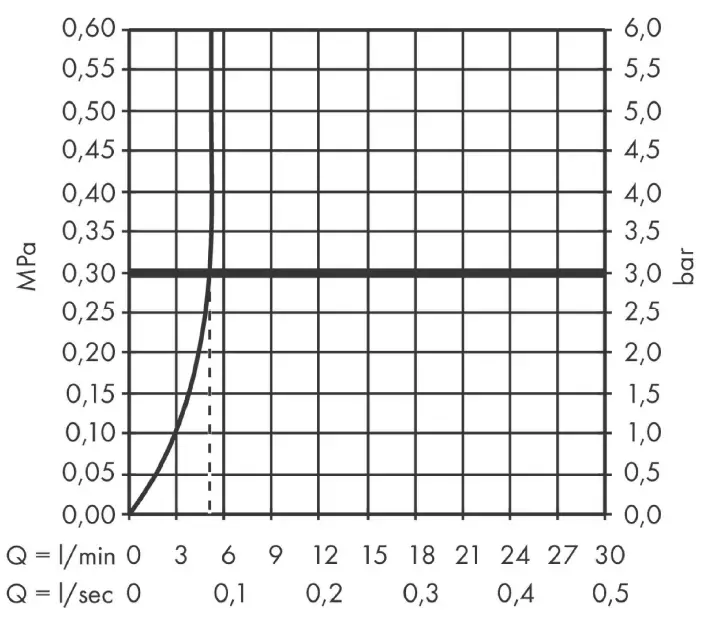

Flowchart

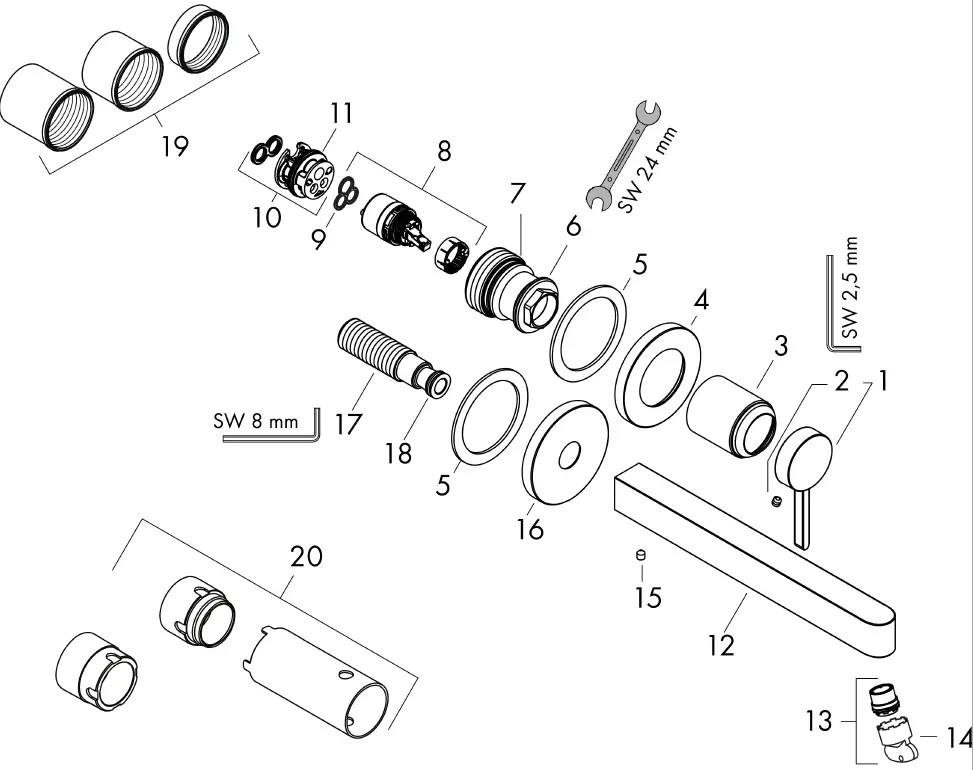

Exploded Drawing
Year of production: >06/21
Spare part list
| Spare part list | ||||
| Year of production: >06/21 | ||||
| Pos. | Description | Art. no. | Price | PU |
| 1 | handle | 93986000 | – | 1 |
| 2 | hollow set screw M5x5 | 98446000 | – | 1 |
| 3 | sleeve | 93989000 | – | 1 |
| 4 | escutcheon for handle | 93988000 | – | 1 |
| 5 | washer | 97600000 | – | 1 |
| 6 | nut | 94752000 | – | 1 |
| 7 | O-ring 34×2 | 98383000 | – | 1 |
| 8 | cartridge, assy | 93760000 | – | 1 |
| 9 | seal | 98865000 | – | 1 |
| 10 | adapter for cartridge | 95634000 | – | 1 |
| 11 | O-ring 26×2 | 98147000 | – | 1 |
| 12 | spout 165 mm | 93984000 | – | 1 |
| 13 | spray former | 93973000 | – | 1 |
| 14 | special tool | 98987000 | – | 1 |
| 15 | hollow set screw M5x6 | 97768000 | – | 1 |
| 16 | escutcheon for spout | 93987000 | – | 1 |
| 17 | connecting thread G½ | 95626000 | – | 1 |
| 18 | O-ring 13×2 | 98128000 | – | 1 |
| 19 | fixing set | 97971000 | – | 1 |
| 20 | extension set 25 mm for 13622180 | 31971000 | – | 1 |
| a | base body | 13622180 | – | 1 |
| b | adapter for exchanged connections | 93819000 | – | 1 |
| c | waste | 50001000 | – | 1 |
