Instructions for use
Assembly instructions
 Metropol32532XXX |
 Metropol74532000 |
� Safety Notes
� Gloves should be worn during installation to prevent crushing and cutting injuries.
� Children as well as adults with physical, mental and/or sensoric impairments must not use this product without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this product.
� The product may only be used for bathing, hygienic and body cleaning purposes.
� Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
� The product may not be used as a holding handle. A separate handle must be installed.
� The hot and cold supplies must be of equal pressures.
Contents
Installation Instructions
- Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
- The plumbing codes applicable in the respective countries must be observed.
- The mesh washer must be insert to protect the shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.
Operating pressure: max. 1 MPa Recommended operating pressure: 0,1 – 0,5 MPa Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)Hot water temperature: max. 70°C Recommended hot water temp.: 65°C Thermal disinfection: max. 70°C / 4 min - Safety against backflow
- The product is exclusively designed for drinking water!
Symbol description
Do not use silicone containing acetic acid!

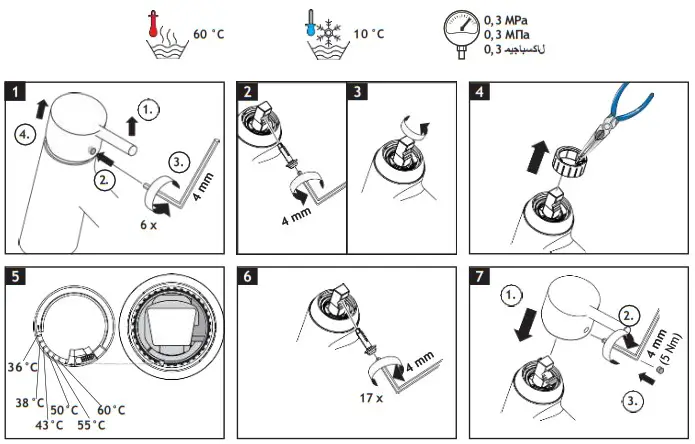

Adjustment (see page 33)
To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not recommended.
Maintenance (see page 35)
The check valves must be checked regularly according to EN 806-5 in accordance with national or regional regulations (at least once a year).
Hot and cold supplies are reversed (see page 38)
Dimensions (see page 36)
Flow diagram (see page 36)
1. Hand shower
2. Bath Spout
Spare parts (see page 37)
XXX = Colors
000 = Chrome Plated
140 = Brushed Bronze
340 = Brushed Black Chrome
670 = Matt Black
700 = Matt White
990 = Gold Plated
Special accessories (order as an extra)
extension 60 mm #93882000 (see page 37)
Cleaning (see page 34)
Operation (see page 33)
Test certificate (see page 37)
| Fault | Cause | Remedy |
| Insufficient water | – Shower filter seal dirty | – Clean filter seal between shower and hose |
| Mixer stiff | – Cartridge defective, calcified | – Exchange cartridge |
| Mixer dripping | – Cartridge defective | – Exchange cartridge |
| Spout temperature does not correspond with temperature set |
– Hot and cold supplies are reversed | – Install function block turned through 180º (see page 38) |
| Instantaneous heater didn’t work | – Shower filter seal dirty – Flow limiter in handshower isn’t removed |
– Clean filter seal between shower and hose – Remove flow limiter |

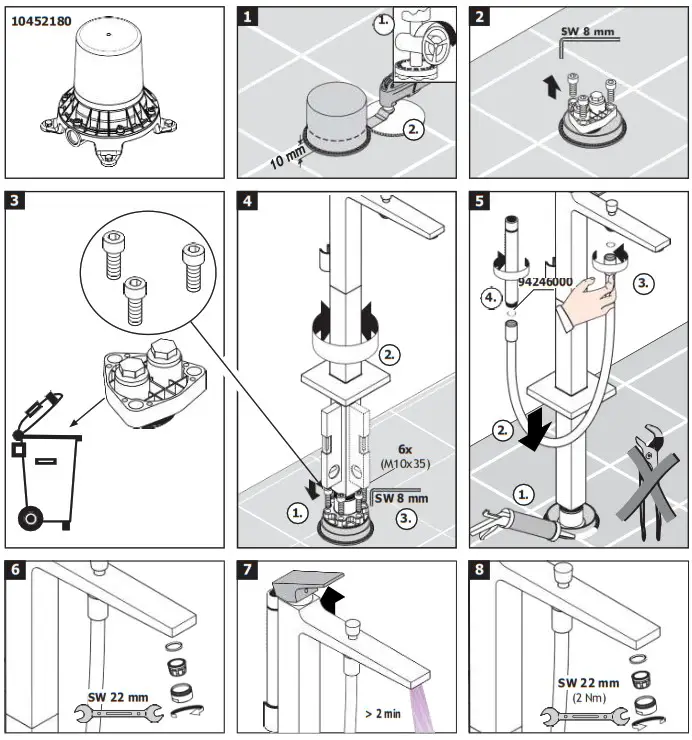

Assembly

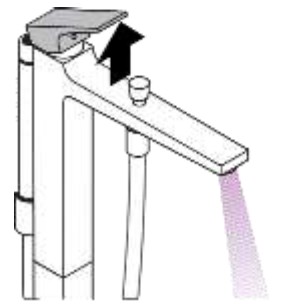

Operation
  open |
close |
 hot |
 cold |
Cleaning
 |
 |
| www.hansgrohe.com/cleaning-recommendation | www.hansgrohe.com/cleaning-recommendation |
 |
 |
| www.hansgrohe.com/cleaning-recommendation | www.hansgrohe.com/cleaning-recommendation |
Cleaning recommendation / Warranty / Contact
Just clean: simply rub over the spray nozzles to remove lime scale.

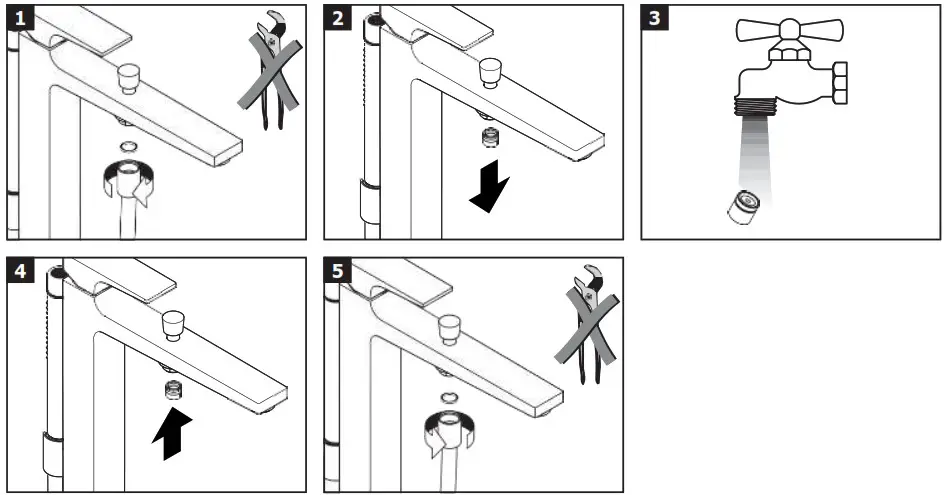

Maintenance
Dimensions
Flow diagram
Metropol
32532XXX / 74532000
Spare parts
Metropol
32532XXX / 74532000
Test certificate
Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
09/2020
9.05251.03
Cleaning recommendation / Warranty
Cleaning Recommendation for Hansgrohe Products
Today, modern sanitary and kitchen tapware, showers, accessories, washstands, sinks, tubs and radiators consist of very different materials to comply with the needs of the market with regard to design and functionality.
To avoid damage and reclamations, it is necessary to consider certain criteria when cleaning.
With regard to caring for the Hansgrohe products, the following must in principle be heeded:
- Only use cleaning material which is explicitly provided for this type of application.
- Never use cleaning materials, which contain hydrochloric acid, formic acid, concentrated caustic soda, chlorine pale lye or acetic acid, as they cause considerable damage.
- Phosphorus acidic cleaners are only conditionally applicable.
- Mixing cleaning agents is not permitted, generally.
- Never use cleaning materials or appliances with an abrasive effect, such as unsuitable cleaning powders, sponge pads or micro fibre cloths.
- The safety instructions of the cleaning agent manufacturers must be strictly followed.
- Cleaning has to be carried out with a specified cleaner dosage, contact time, object-related and adapted to the needs.
- The building up of calcifications has to be removed by cleaning regulary.
- When using spray cleaners, spray the cleaning solution onto a soft cloth or sponge, never directly onto the Hansgrohe products, as the atomised spray could enter openings and gaps in the Hansgrohe products and cause damage.
- After cleaning rinse thoroughly with clean water to remove any cleaner residue.
- The use of steam cleaners is not permitted. The high temperatures can damage the products.
Important
Residues of toiletries such as liquid soaps, shampoos and shower gels, hair dyes, perfumes, aftershave and nail varnish can also cause damage.
Here too: Carefully rinse with water after use to remove residues.
Likewise, do not store any cleaning agents or chemicals under the products, for example in a vanity unit, as the vapours may damage the products.
The damage of already damaged surfaces will deteriorate under the effect of the cleansers.
& Components with damaged surfaces must be exchanged, otherwise there could be an injury danger.
Damage caused by improper treatment will not be covered by our guarantee.
Warranty
Hansgrohe guarantees to the consumer that this product is free of production faults.
If nevertheless any defect is detected within 5 years from date of purchase, Hansgrohe will remedy this defect free of charge. You will find the conditions and details of this guarantee at www.hansgrohe-int.com/guarantee. Please contact your contracting party to claim your rights under this guarantee. This guarantee does not affect the customer’s rights under the respective national legislation.
QuickClean
The QuickClean cleaning function only needs a small manual rub over to remove the lime scale from the spray channels.
Just clean: simply rub over the spray nozzles to remove lime scale.
