hansgrohe 72458670 Rebris Bath Mixer Set
Product Information
Specifications
- Product Name: Rebris E Single lever bath mixer set for concealed installation
- Finish: Matt Black
- Art. no.: 72458670
- Year of Production: >06/22
Product Description
The Rebris E Single lever bath mixer set is designed for concealed installation and comes in a stylish Matt Black finish. It offers a modern and sleek look to your bathroom.
Product Usage Instructions
- Ensure that the installation area is suitable for concealed installation.
- Follow the provided scale drawing for accurate installation measurements.
- Refer to the spare part list for any replacements or additional components needed.
- For detailed installation steps, visit our website for more information.
Rebris E
Single lever bath mixer set for concealed installation
Finish: Matt Black___Art. no. : 72458670
Description
product features
- Consists of: single lever bath mixer, basic set
- designed to run 2 outlets
- Maximum flow rate (at 3 bar): 30.7 l/min
- Flow rate for bath spout (at 3 bar): 30.7 l/min
- Flow rate of hand shower (at 3 bar): 27.4 l/min
- ceramic cartridge
- Maximum temperature can be adjusted on installation
- diverter with automatic resetting
- concealed installation
- Noise class: II
- Connection type: basic set
- wall-mounted
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- WRAS 2306302
Article Details
Price excl. VAT £ 238.00
Design awards
Certificates / Sustainability
Product image
Scale drawing
Flowchart

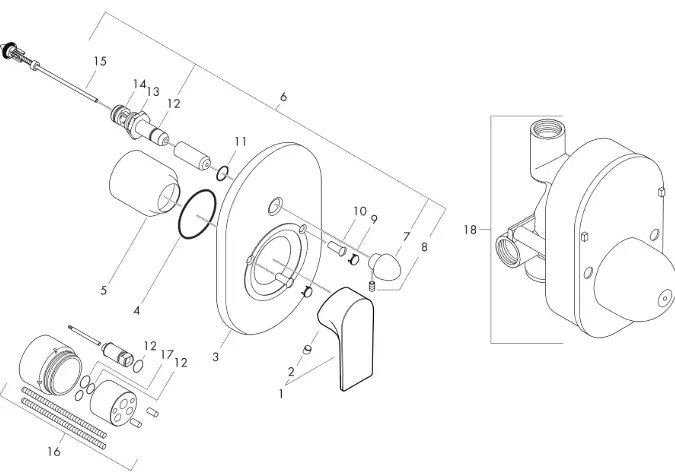

Exploded Drawing
Year of production: >06/22
Spare part list
Year of production: >06/22
|
Pos. |
Description |
Art. no. |
Price |
PU |
| 1 | handle | 94655670 | – | 1 |
| 2 | screw cover | 96338610 | – | 1 |
| 3 | escutcheon bath/shower mixer | 95011670 | – | 1 |
| 4 | O-Ring 48×3 | 95508000 | – | 1 |
| 5 | flange | 96348670 | – | 1 |
| 6 | diverter assy with sleeve and handle | 95015000 | – | 1 |
| 7 | diverter knob cpl. | 95013670 | – | 1 |
| 8 | hollow set screw M4x10 | 97667000 | – | 1 |
| 9 | cover cap | 95433670 | – | 1 |
| 10 | hollow screw | 96065000 | – | 1 |
| 11 | O-ring 14×3 | 98130000 | – | 1 |
| 12 | O-ring 10×1,5 | 98123000 | – | 1 |
| 13 | O-ring 16×2,5 | 98134000 | – | 1 |
| 14 | O-ring 13×2 | 98128000 | – | 1 |
| 15 | selector assy | 96937000 | – | 1 |
| 16 | extension set 28 mm tub mixer | 32498000 | – | 1 |
| 17 | O-ring 12×1,5 | 98430000 | – | 1 |
| 18 | concealed item | 31741180 | – | 1 |
More details online on.the website..We look forward for your visit
FAQ
Can I use this bath mixer set for exposed installations?
No, this bath mixer set is specifically designed for concealed installations.
Are there alternative finishes available?
Currently, the Rebris E Single lever bath mixer set is available only in the Matt Black finish.
How do I clean and maintain the bath mixer set?
Use a mild soap solution and a soft cloth to clean the surface of the mixer set. Avoid abrasive cleaners that may damage the finish.
