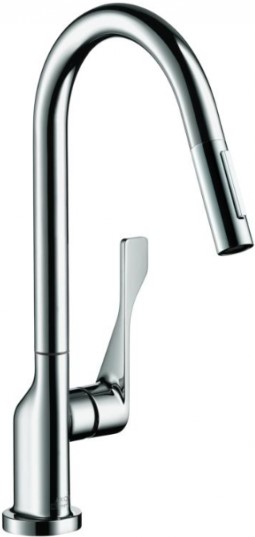

hansgrohe 39835800 AXOR CITTERIO Lever Kitchen Faucet Instruction Manual
Contents
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
The hot and cold supplies must be of equal pressures.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms!
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5 MPa
- Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 80°C
- Recommended hot water temp.: 65°C
- Rate of flow by 0,3 MPa:
- Handspray flow rate: 11 l/min
- Aerator flow rate: 10 l/min anti-pollution function
Hansgrohe mixers can be used together with hydraulically and the misally controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Maintenance
(see page 32)
The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).
To adjust the hot water limiter on single lever mixers, please see page 35. No adjustment is necessary when using a continuous flow water heater.
Do not use silicone containing acetic acid!
Dimensions
(see page 33)
Spare parts
(see page 36)
Operation
(see page 34)
Do not rotate the spout further than 360º or damage to the hose will result.
Cleaning
(see page 32) and enclosed brochure
If the waterflow drops, clean the filter located between hose and handspray.
Test certificate
(see page 34)

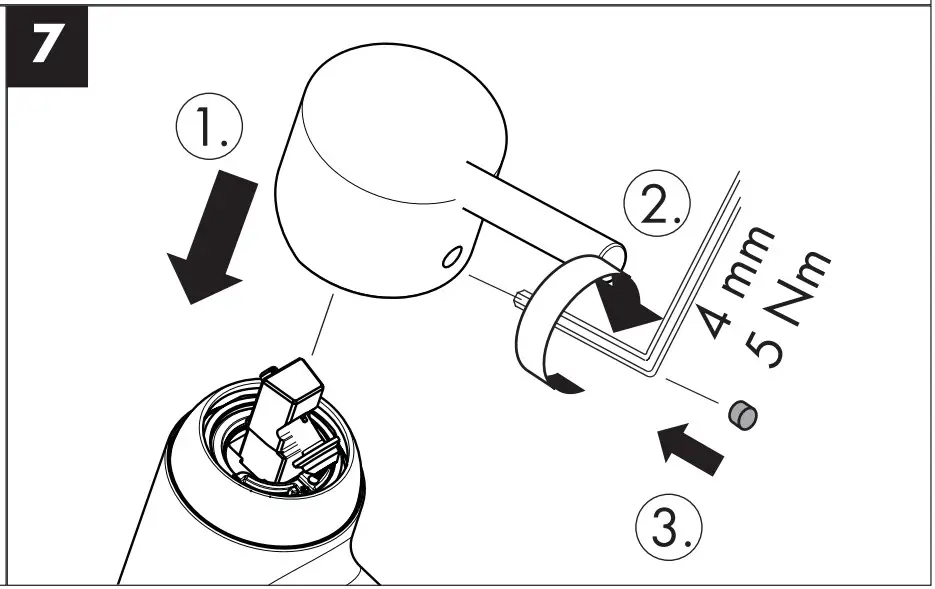

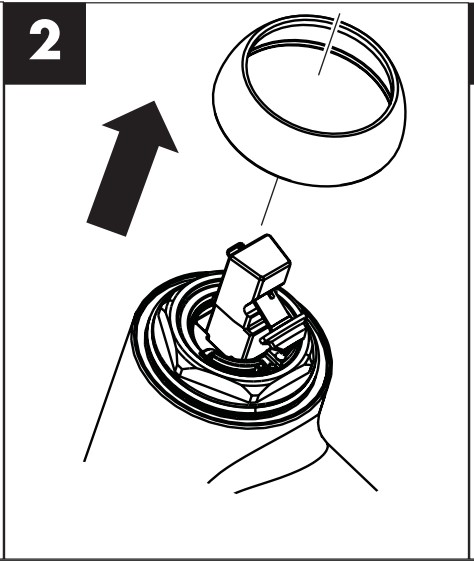

Assembly
