hansgrohe 39655000 AXOR Citterio Shower Mixers Instruction Manual
Contents

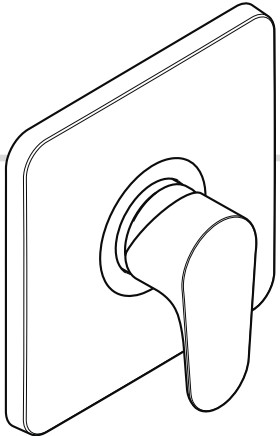

Models
- Starck 10616000
- Starck X 10645000
- Citterio M 34625000 34625003
- Uno² 38625000
- Citterio 39655000 39655003
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5 MPa
- Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 80°C
- Recommended hot water temp.: 65°C
Symbol description
Do not use silicone containing acetic acid!
To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.
Dimensions
- Stack 10616000
- Starck X 10645000
- Uno² 38625000
- Citterio M 34625000 / 34625003
- Citterio 39655000 / 39655003
(see page 34)
Flow diagram
- Starck 10616000 / Starck X 10645000 / Uno² 38625000 / Citterio 39655000 / 39655003
- Citterio M 34625000 / 34625003
(see page 34)
Operation
(see page 35)
Cleaning
Cleaning recommendations, see enclosed brochure.
Spare parts
(see page 36)
Test certificate
(see page 35)
| Fault | Cause | Remedy |
| Mixer stiff |
|
|
| Mixer dripping |
|
|
| Hot water temperature too low, no cold water. Instantaneous water heater starts up when cold water is selected. |
|
|
|
|

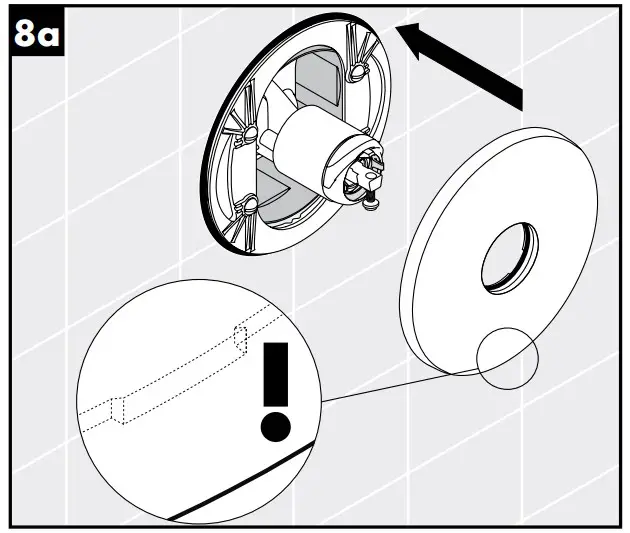

Assembly
see page 31
