hansgrohe 39133000 AXOR CITTERIO Washbasin Mixers
Product Information
The product is a shower system with the model numbers Citterio39133000 and Citterio 39153000. It is available with instructions in multiple languages, including German, French, English, Italian, Spanish, Dutch, Danish, Polish, Chinese, Russian, Swedish, Lithuanian, Croatian, Turkish, Romanian, Greek, Slovenian, Estonian, Latvian, Norwegian, and Bulgarian. The shower system comes with technical specifications that include a flow limiter. The rate of flow is 5 l/min at 0.3 MPa withEcoSmart and 10 l/min at 0.3 MPa without EcoSmart. The recommended operating pressure is 1.6 MPa with a maximum operating pressure of 1 MPa. The hot water temperature should be set according to the recommended temperature. Spare parts and dimensions are also available for reference in the user manual.
Product Usage Instructions
Before installation, make sure to wear protective gloves to prevent crushing and cutting injuries. The shower system should only be used for bathing, hygienic, and body cleansing purposes. It is important to ensure that the hot and cold water supplies have equal pressures to avoid any issues. The fitting must be installed, flushed, and tested according to valid norms. If using Hansgrohe mixers together with hydraulically and thermally controlled continuous flow heaters, make sure the flow pressure is at least 0.15 MPa. Refer to the user manual for spare parts and dimensions as well as instructions for service and operation.
MODELS
Safety Notes
- Gloves should be worn during installation to prevent crushing and cutting injuries.
- The shower system may only be used for bathing, hygienic, and body cleansing purposes.
- The hot and cold supplies must be of equal pressure.
Important! The fitting must be installed, flushed, and tested after the valid norms.
Technical Data
This mixer series-produced with EcoSmart® (flow limiter).
- Rate of flow with EcoSmart: 5 l/min 0,3 MPa
- Rate of flow without EcoSmart: 10 l/min 0,3 MPa
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5 MPa
- Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 80°C
- Recommended hot water temp: 65°C
Hansgrohe mixers can be used together with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0,15 MPa. If the continuous water heater causes any problems or there is not enough flow of water, the EcoSmart® located behind the aerator must be removed.

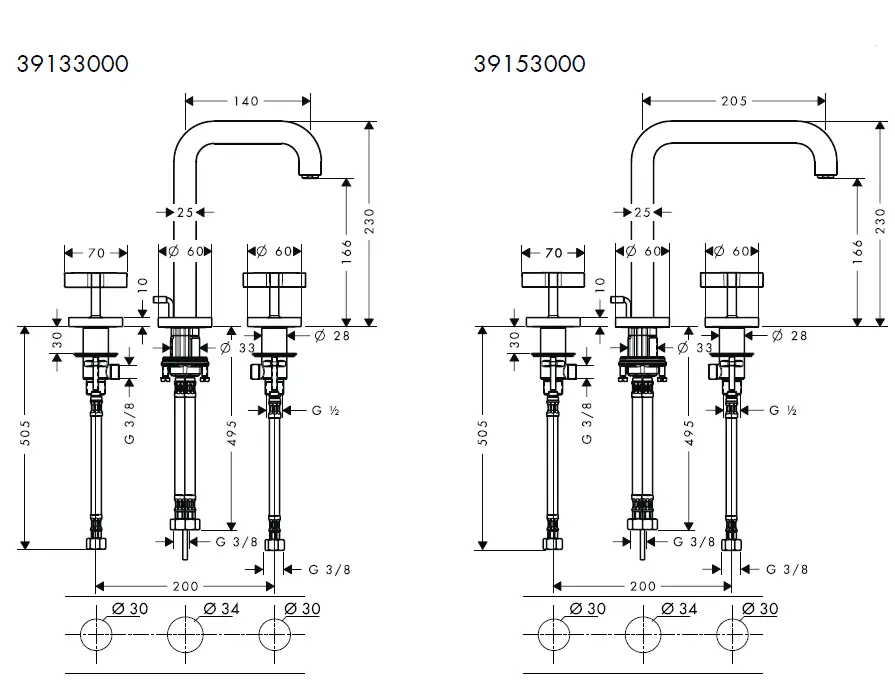

Dimensions

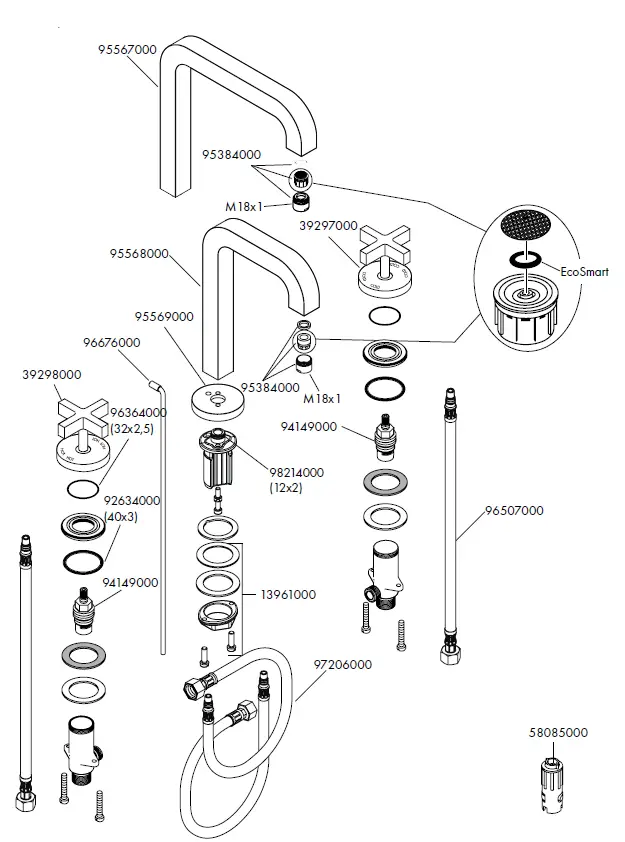

Spare parts

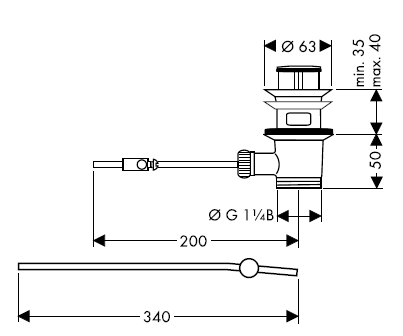

Special accessories
- 58085000 special tool set (order as an extra)

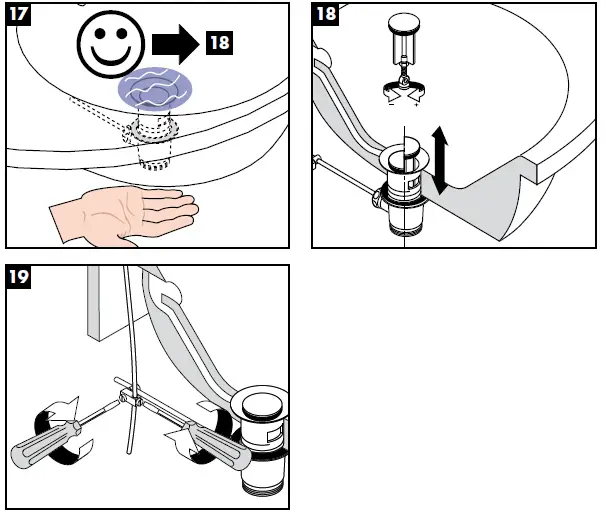

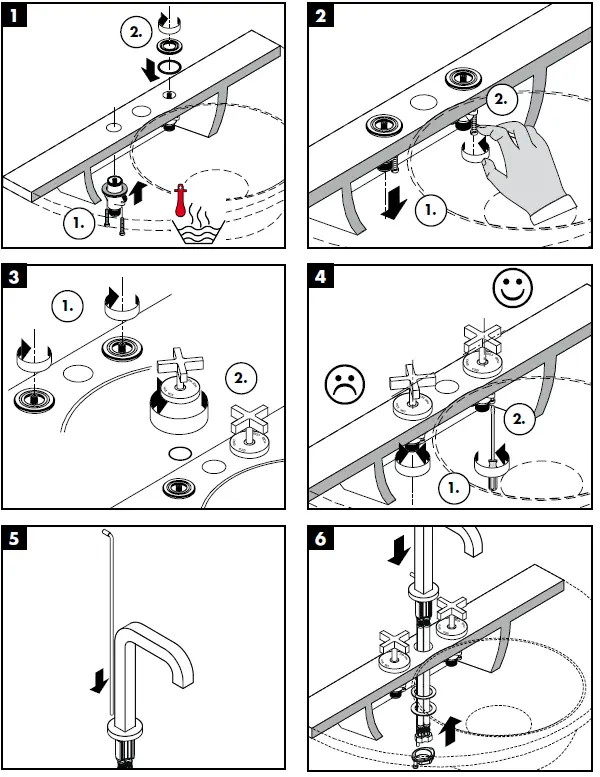

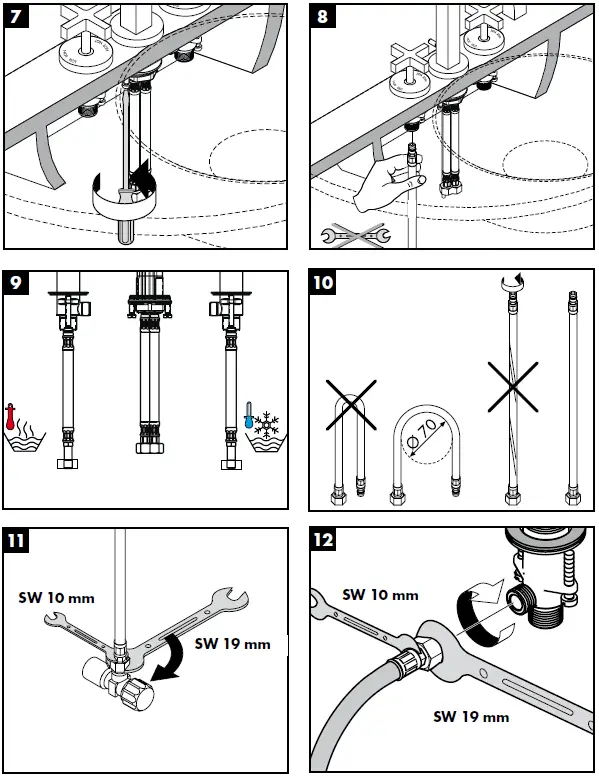

Installation Instructions

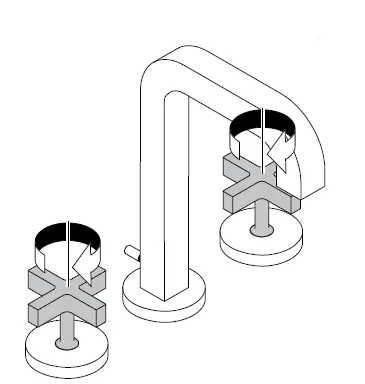

Operation
Open
Close

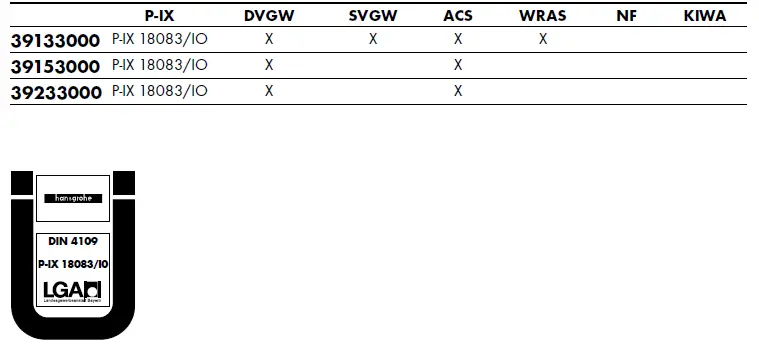

Test certificate
