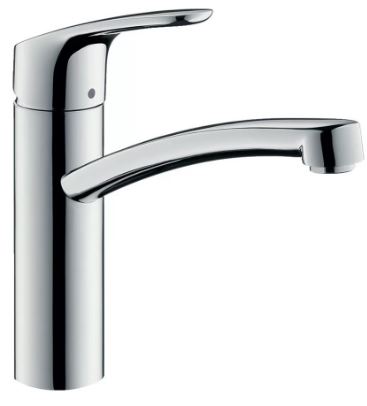

hansgrohe 31780000 FOCUS E Kitchen Water Mixer
MODELS
- Focus E² 31806XXX
- Focus S 31786000
- Focus E 31780000
Safety Notes
- Gloves should be worn during installation to prevent crushing and cutting injuries.
- The hot and cold supplies must be of equal pressure.
Installation Instructions
- The fitting must be installed, flushed, and tested after the valid norms.
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5 MPa
- Test pressure: 1,6 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 80°C
- Recommended hot water temp.: 65°C
Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Symbol Description
- To adjust the hot water limiter on single lever mixers, please see page 32. No adjustmentis necessary when using a continuous flow water heater.
- Do not use silicone-containing acetic acid!

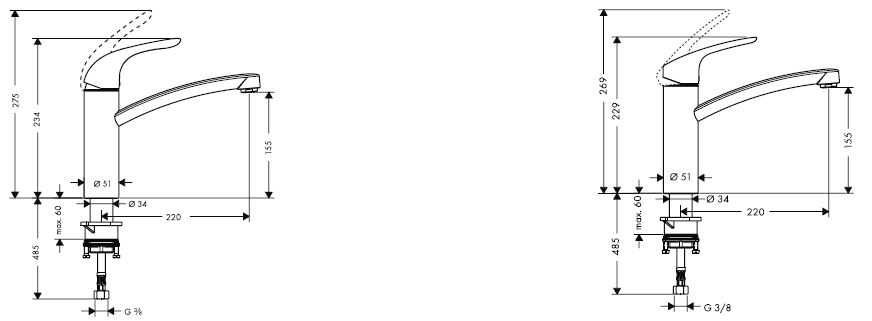

Dimensions
- Focus E 31780000
- Focus E² 31806XXX
- Focus S 31786000

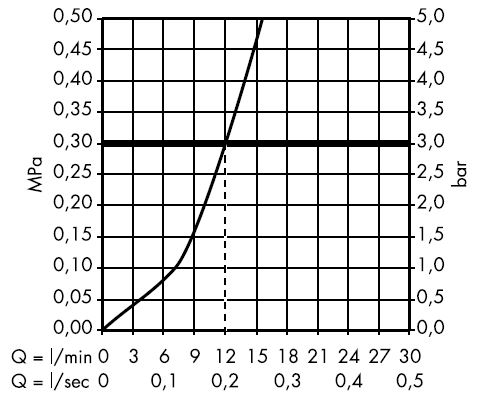

Flow diagram
- Focus E 31780000
- Focus S 31786000
- Focus E² 31806XXX
Spare parts
- Focus E 31780000
- Focus S 31786000
- Focus E² 31806XXX
- XXX Colors
- 000 chrome plated
- 800 stainless steel optic

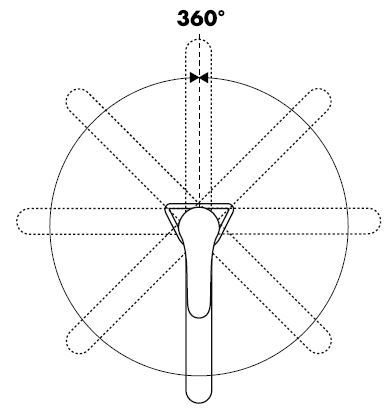

Operation
- open
- close
- cold
- hot
- Cleaning enclosed brochure
Test certificate
Assembly
