hansgrohe 31159000 Metris S Washbasin Mixers
Contents
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- If the instantaneous water heater causes problems or if you wish to increase the water flow, the EcoSmart® (flow limiter) located behind the aerator can be removed.
- Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.
Technical Data
This mixer series-produced with EcoSmart® (flow limiter)
| Operating pressure: | max. 1 MPa |
| Recommended operating pressure: | 0,1 – 0,5 MPa |
| Test pressure: (1 MPa = 10 bar = 147 PSI) | 1,6 MPa |
| Hot water temperature: | max. 80°C |
| Recommended hot water temp.: | 65°C |
Symbol description
Adjustment
To adjust the hot water limiter on single lever mixers, please see page 31. No adjustment is necessary when using a continuous flow water heater.
 |
Do not use silicone containing acetic acid! |
Special accessories
special tool order as an extra
Cleaning
Cleaning recommendations, see enclosed brochure.
 |
Installation kit order as an extra |
operating Instructions
Assembly
Dimensions
Flow diagram
Operation
Spare parts
Test certificate
operating Instructions

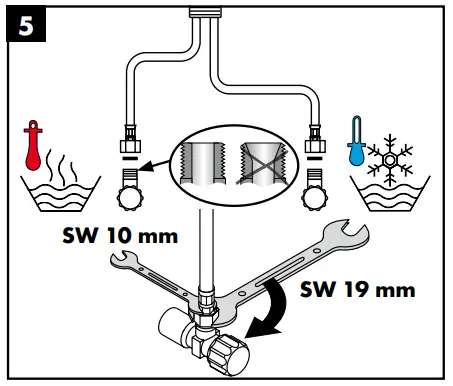

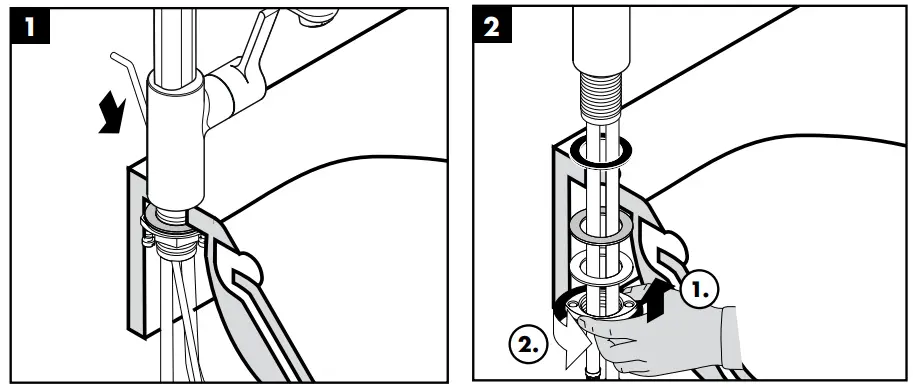

Assembly
Dimensions

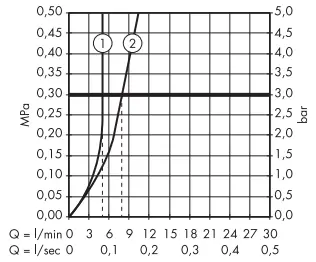

Flow diagram
- with EcoSmart®
- without EcoSmart®
Talis S² 32080000 / 32082000 / 32084000
Metris S 31159000 / 31161000
Operation
- open
- close
- cold
- hot

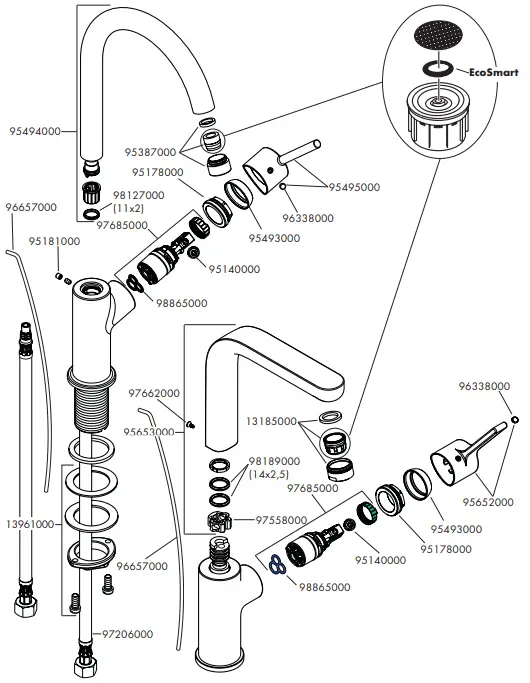

Spare parts
Test certificate
| P-IX | DVGW | SVGW | ACS | WRAS | ETA | KIWA | |
| 31159000 | |||||||
| 31161000 | P-IX 19373/IO | ||||||
| 32080000 | |||||||
| 32082000 | |||||||
| 32084000 |
Others Model
Talis S²
32080000 / 32082000 / 32084000
Customer Support
Hansgrohe · Postfach 1145 · D-77761 Schiltach ·
Telefon +49 (0) 78 36/51-1282 ·
Telefax +49 (0) 7836/511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
