hansgrohe 28588000 Raindance Select Hand Shower
Product Information: Product Name: Raindance Select 28588000 / 28588400 Languages: DE, FR, EN, IT, ES, NL, DK, PL, ZH, RU, SV, LT, HR, TR, RO, EL, SL, ET, LV, SR, NO, BG, AR
Product Usage Instructions
Safety Notes:
- Wear gloves during installation to prevent crushing and cutting injuries.
- Avoid letting the streams of the shower touch sensitive body parts, such as your eyes. Maintain an adequate distance between the shower and your body.
- Use the shower only for bathing, hygiene, and body cleansing purposes.
Installation Instructions:
- Insert the mesh washer to protect the overhead shower against incoming dirt from the pipework. Incoming dirt can cause defects or damage to parts of the shower.
- Failure to insert the mesh washer may void liability and guarantee claims.
Technical Data:
- Operating pressure: max. 0.6
- MPa – Recommended operating pressure: 0.2 – 0.4 MPa
- Hot water temperature: Thermal disinfection
Symbol Description:
- Dimensions: Refer to page 18 for symbol description and dimensions.
- Spare parts: Refer to page 17 for information on spare parts.
- Cleaning: Refer to page 19 for cleaning instructions.
- Test certificate: Refer to page 20 for information on the enclosed brochure and test certificate. Please refer to the specific language section of the user manual for further details and instructions on product usage and assembly.
Safety Notes
- Gloves should be worn during installation to prevent crushing and cutting injuries.
- Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
- The shower may only be used for bathing, hygiene and body cleansing purposes.
Installation Instructions
The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guaran-tee claims.
Technical Data
- Operating pressure: max. 0,6 MPa
- Recommended operating pressure: 0,2 – 0,4 MPa (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 60°C
- Thermal disinfection: max. 70°C / 4 min
As a standard, the product is equipped with an EcoSmart® (flow limiter). If a higher flow rate is desired, the EcoSmart® may be dismantled.
Symbol description
Dimensions

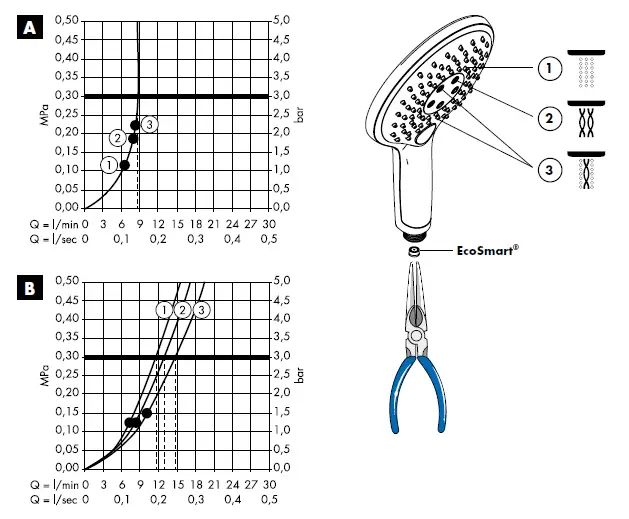

Flow diagram
- A with EcoSmart®
- B without EcoSmart®
Operation
Spare parts
Cleaning and en-closed brochure
Test certificate
Assembly
Assembly
Operation
Spare parts
Dimension
Flow Diagram
Cleaning
Test Certificate
