Hansgrohe 28414180 Raindance Rainmaker Instructions

hansgrohe PuraVida Handrail

Other Models

• Rainmaker 28414180

• Rainmaker 28417000 / 28418000


Safety Notes

• The shower system may only be used for bathing, hygienic and body cleansing purposes.
• Children as well as adults with physical, mental and/or sensoric impairments must not use this shower system without proper supervision. Persons under the influence of alcohol or drugs are prohibited from using this shower system.
• Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
• The hot and cold supplies must be of equal pressures

Electrical connection

• The electrical connection may only be carried out by an electrician!
• Preinstall electrical power 230 V/N/PE/50 Hz (length: 0.3 m)
• The system must be protected via a leakage current protective device (RCD/ FI) with a measurement difference current of ≤ 30 mA.

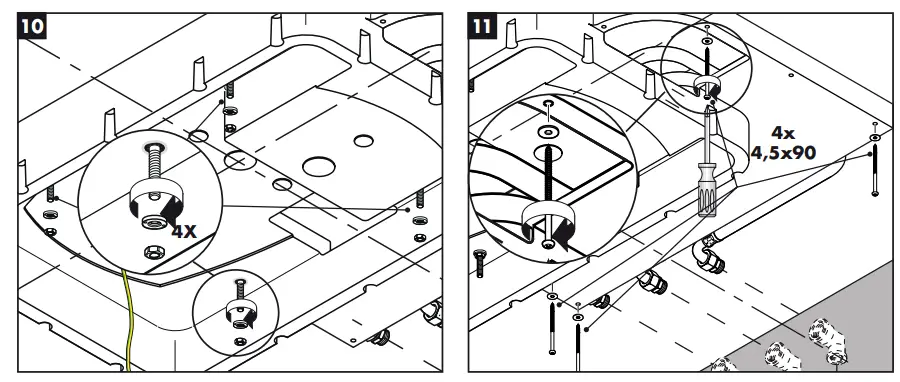

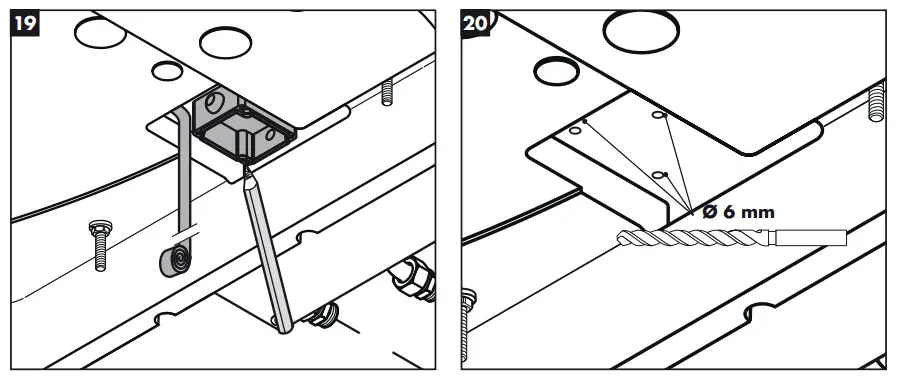

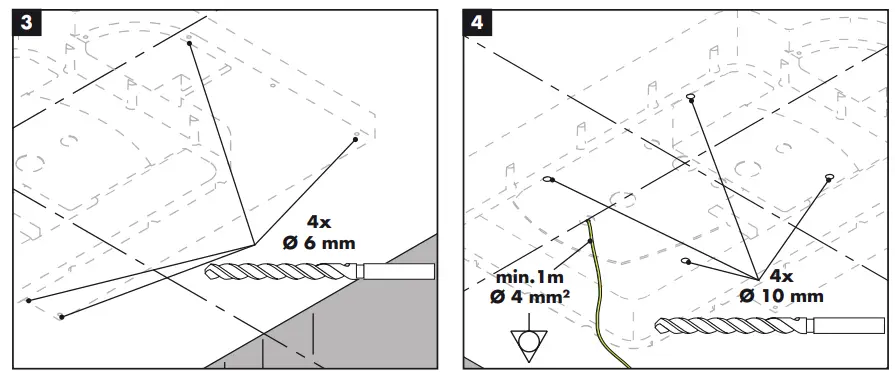

Assembly basic kit

(see page 68)

Rainmaker 28414180

Assembly Finish set

(see page 73)

• Important! The fitting must be installed, flushed and tested after the valid norms.
• Where the contractor mounts the product, he should ensure that the entire area of the wall to which the mounting plate is to be fitted, is flat (no projecting joints or tiles sticking out), that the structure of the wall is suitable for the installation of the product and has no weak points.
• The enclosed screws and dowels are only suitable for concrete. For another wall constructions the manufacturer‘s indications of the dowel manufacturer have to be taken into account.
• The performance of the waste must be of sufficient size.
• The shower may only be connected following (downstream from) a shut-off valve of the sanitary fitting.

Maintenance Instructions

• The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).

Technical Data

Operating pressure in front of the shower fitting: max. 1 MPa
Recommended operating pressure: 0,3 – 0,5 MPa (1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60 °C
Recommended hot water temp.: 42 °C
safety lock: 38 °C
Warning: Exceeding this temperature can cause burns!

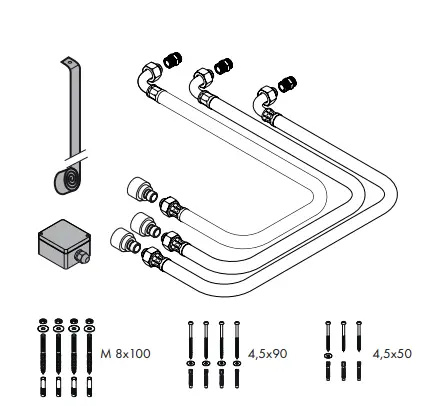

Fittings

(see page 60)

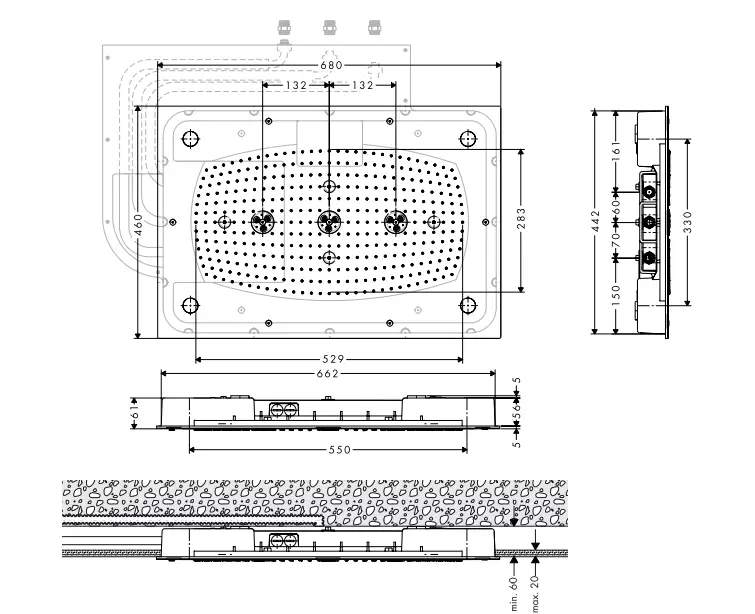

Dimensions

(see page 60)

Rainmaker 28414180

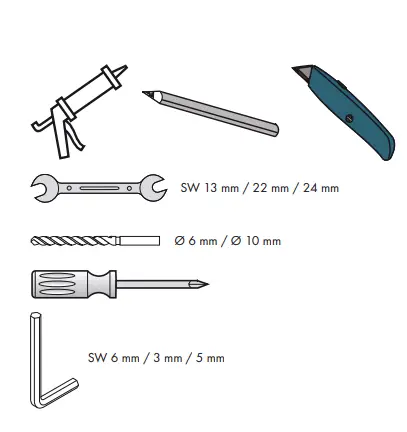

Installation tool

(see page 60)

Installation example

Installation examples with measurements and pipe dimensions can be found starting on page 62

Operation

(see page 76)

Rainmaker 28417000

Rainmaker 28418000

Spare parts

(see page 76)

Service Replace illuminant

(see page 77)

Cleaning

(see page 78)

Electrician

The installation and testing work must be performed by a skilled electrician in observance of VDE 0100 part 701 and IEC 60364-7-701.

Assembly

see page 60

SYMBOLS

	Water connection DN 20 Warm water
	Water connection DN 20 Cold water
	Robinet d‘arrêt encastré
	Quattro 4-Way Diverter Valve
	Trio 2-Way Diverter Valve with integrated Shut-off valve
	Thermostatic mixer HighFlow
	From • the function is guaranteed.
	The waste drain performance must be Safety gloves must be worn more than 50 l/min.
	Waste
X	Center shower tub
	Turn on water
	turn off water
	Installation sequence
	Silicone (free from acetic acid!)
	Wiring conduit for power supply cable
	Grease
	Hot surface!
	Safety gloves must be wo
	Eye protection must be wo
	natural sponge
	Decalcifier (Citric acid base) Avoid contact with eyes and skin. If this product contacts your eyes, rinse thorougly with wate
QUICK C L E A N	The QuickClean cleaning function only needs a small manual rub over to remove the lime scale from the spray channels.
	Electricity on / off
	Electricity on / off
	Potential equalisation
N	neutral conductor
L	conductor
	FI protective switch
	junction box
	light switch
	transformer
	connectors
	distributor box
	Illuminant
