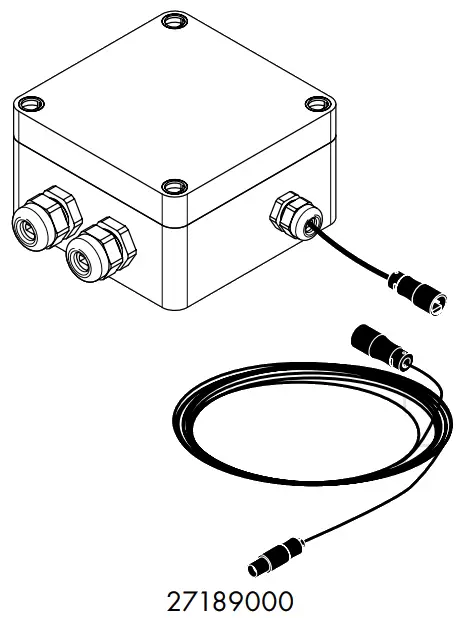

27189000 PURAVIDA Rain Brain
Instruction Manual
Instructions for use / assembly instructions
Contents
27189000 PURAVIDA Rain rain

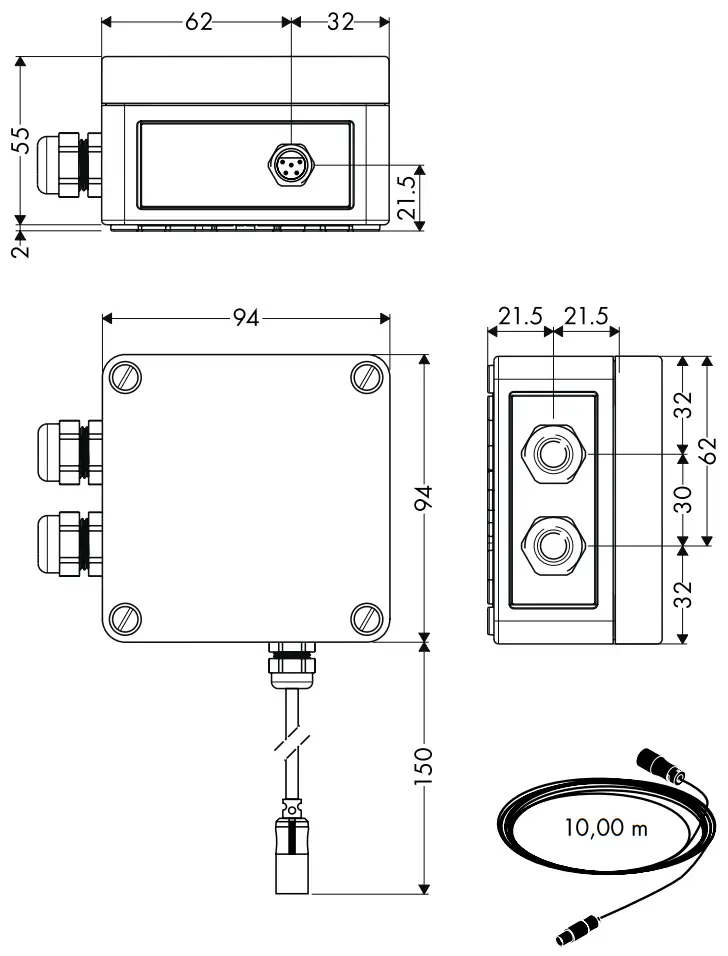

Dimensions (see page 2)
Assembly
- The installation and testing work must be performed by a skilled electrician in observance of VDE 0100 part 701 and IEC 603647-701.
- Preinstall are l’alimentazione electrical a 230V/N/PE/50Hz (lunghezza: 0,3 m).
- The system must be protected via a leakage current protective device (RCD/ FI) with a measurement difference current of ≤ 30 mA.

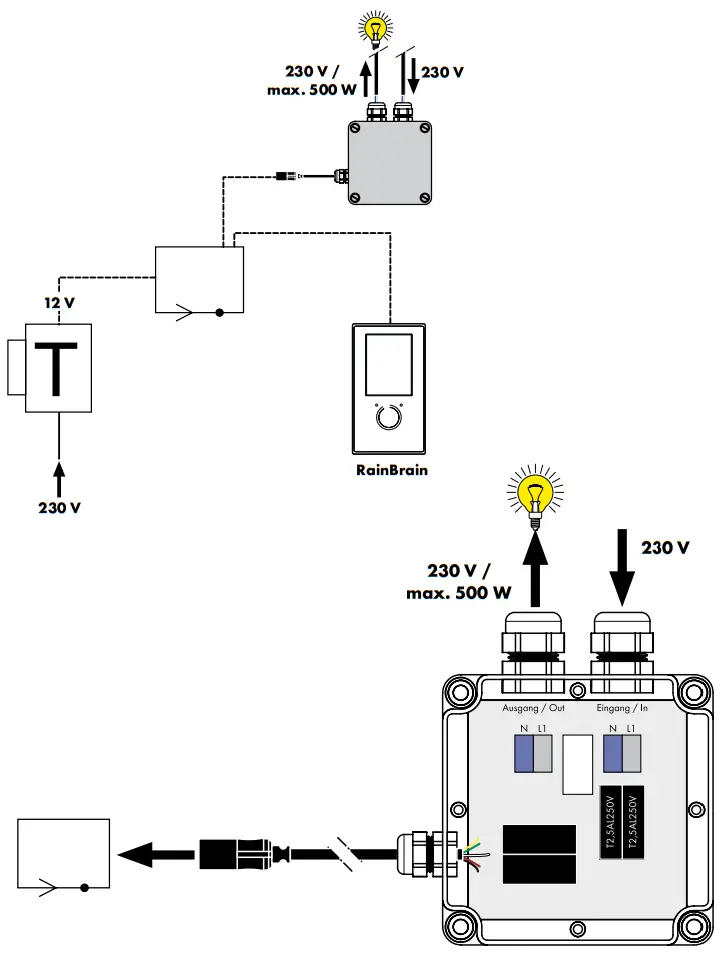

Installation example
(see page 13)
Symbols
 |
Light |  |
iControl |
 |
230V |  |
Light |
 |
12V |  |
Support |
 |
Transformer |  |
Fuse |
 |
Receiver |  |
Rain Brain |
