26843XXX Rainfinity Wall Connection with Shower Holder
Instruction Manual
Instructions for use / Assembly instructions
Contents
26843XXX Rainfinity Wall Connection with Shower Holder
Safety Notes
Installation Instructions
- Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- The pipes and the fixture must be installed, flushed and tested as per the applicable standards.
- The plumbing codes applicable in the respective countries must be observed.
Technical Data
| Operating pressure: | max. 1 MPa |
| Recommended operating pressure: | 0,1 – 0,5 MPa |
| Test pressure: | 1,6 Mpa (1 MPa = lobar= 147 PSI) |
| Hot water temperature: | max. 60°C |
| Thermal disinfection: | 70°C / 4 min |
| Rate of flow by 0,3 MPa: | 22 1/min |
The product is exclusively designed for drinking water!
Symbol description
Do not use silicone containing acetic acid!
Dimensions (see page 18)
Spare parts (see page 18)
XXX = Colors
000 = Chrome Plated
140 = Brushed Bronze
340 = Brushed Black Chrome
670 = Matt Black
700 = Matt White
990 = Polished Gold-Optic
Cleaning (see page 21)
Maintenance (see page 22)

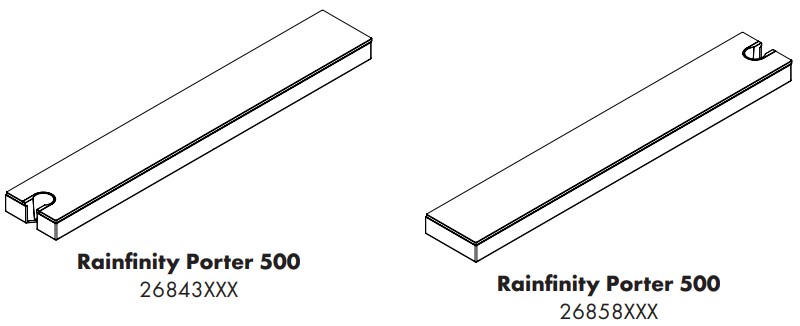

Assembly (see page 19) Rainfinity Porter 500
26843XXX
Rainfinity Porter 500
26858XXX
Rainfinity Porter 500
26843XXX
Rainfinity Porter 500
26858XXX
www.hansgrohe.com/cleaning-recommendation
Cleaning recommendation / Warranty / Contact
Hansgrohe · Auestraße 5 – 9
D-77761 Schiltach
Telefon +49 (0) 78 36/51-1282
Telefax +49 (0) 7836/511440
E-Mail: [email protected]
Internet: www.hansgrohe.com
9.06882.01
