Carlton
17444XXX
Instructions for use / assembly instructions
Contents
Safety Notes
Gloves should be worn during installation to prevent crushing and cutting injuries.
The shower system may only be used for bathing, hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressures.
Do not allow the streams of the shower touch sensitive body parts (such as your eyes). An adequate distance must be kept between the shower and you.
The product may not be used as a holding handle. A separate handle must be installed.
Installation Instructions
- The fitting must be installed, flushed and tested after the valid norms.
- The mesh washer must be insert to protect the overhead shower against incoming dirt by pipework. Incoming dirt leads to defects or/and can damage parts of the shower; such caused faults voids all liability and guarantee claims.
Technical Data
| Operating pressure: | max. 1 Mpa |
| Recommended operating pressure: | 0,1 – 0,5 Mpa |
| Test pressure: | 1,6 Mpa |
| (1 MPa = 10 bar = 147 PSI) Hot water temperature: | max. 80°C |
| Recommended hot water temp.: | 65°C |
| Connections G 1/2: | cold right – hot left anti-pollution function |
Symbol description
Maintenance non return valve (see page 38)
The non return valves must be checked regularly according to DIN EN 1717 in accordance with national or regional regulations (at least once a year).
Maintenance Secuflex hose (see page 38)
Repeat cleaning when pull out becomes difficult.
 |
Do not use silicone containing acetic acid! |
 |
Dimensions (see page 35) |
 |
Flow diagram (see page 35) 1. Hand shower 2. Bath Spout |
 |
Spare parts (see page 37) XXX = Colors 000 = chrome plated 090 = chrome plated/gold plated |
 |
Operation (see page 36) |
 |
Cleaning (see page 40) and enclosed brochure |
 |
Test certificate (see page 34) |
 |
Assembly see page 31 |
| P-IX | DVGW | SVGW | ACS | WRAS | MCA | KIWA |
17444000 P-IX 9087/ICB
Carlton 17444XXX
Carlton 17444XXX
 |
|

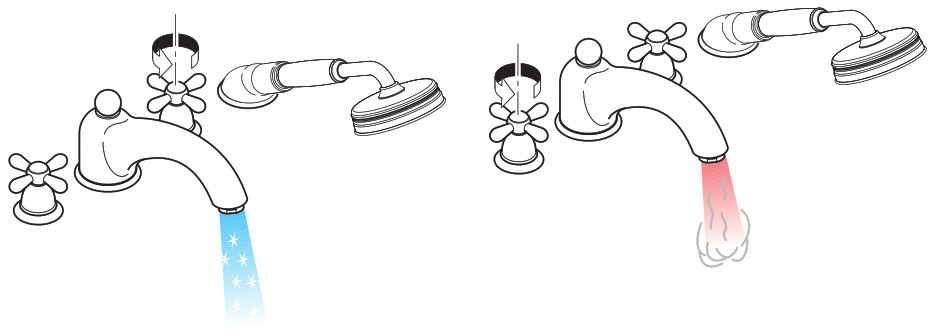

| open | close |
 |
|
| cold | hot |
