hansgrohe 10416000 Starck Concealed Lever Bath Faucet
Product Information
The product is a shower system that can be used for bathing, hygienic, and body cleansing purposes. It is a single lever mixer with a warm water limiter and an anti-pollution function. The recommended operating pressure is 1.6 MPa and the hot water temperature should be adjusted according to the instructions provided on page 33. The shower system has two outlets – one for the shower and the other for the tub.
Product Usage Instructions
Safety Notes Gloves should be worn during installation to prevent crushing and cutting injuries. The hot and cold supplies must be of equal pressures.
- The fitting must be installed, flushed and tested after the valid norms.
- Hansgrohe mixers can be used together with hydraulically and thermically controlled continuous flow heaters if the flow pressure is at least 0,15 MPa.

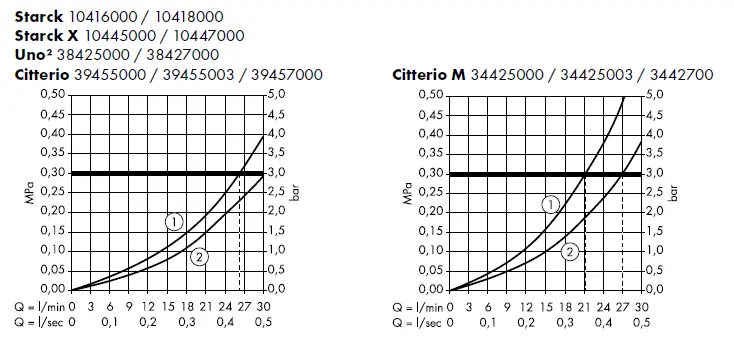

Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0,1 – 0,5 MPa
- Test pressure: 1,6 MPa
- (1 MPa = 10 bar = 147 PSI)
- Hot water temperature: max. 80°C
- Recommended hot water temp.: 65°C
- anti-pollution function
| Fault | Cause | Remedy |
| Mixer stiff | – Cartridge defective, calcified | – Exchange cartridge |
| Mixer dripping | – Cartridge defective, sedimentation | – Exchange cartridge |
| Diverter not operating | – Residue | – Clean converter / grease O-rings |
| – Water pressure to low | – Increase water pressure | |
| – Diverter defective | – Exchange diverter | |
| Hot water temperature too low, no cold water. Instantaneous water | – Hot water limiter incorrectly set | – Set hot water limiter |
Installation Instructions
The installation instructions are provided in multiple languages on pages 2-28. Please refer to the appropriate language section for detailed instructions.

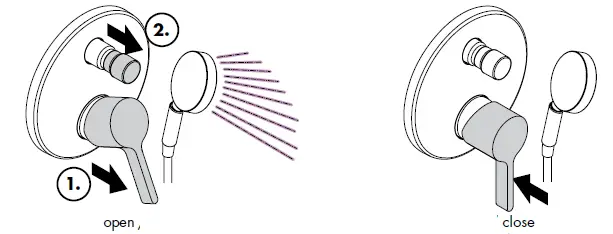

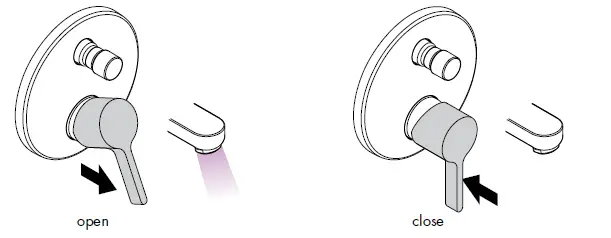

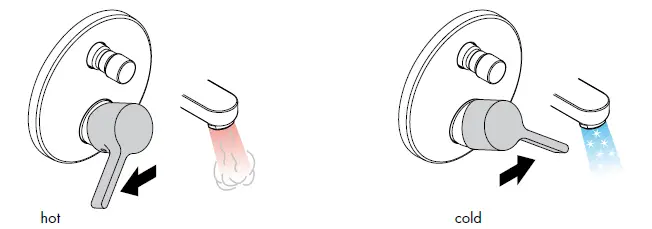

Operation
To use the shower system, turn on the hot and cold water supplies and adjust the lever to the desired temperature. The shower and tub outlets can be selected using the system’s single lever mixer. Please refer to page 35 for detailed instructions.
Maintenance
The shower system requires regular maintenance to ensure proper functioning. Please refer to page 36 for detailed instructions on maintenance, cleaning, and replacing parts.
Troubleshooting
If you experience any issues with the shower system, please refer to the troubleshooting section on pages 31-33. The section provides information on common issues and their solutions, such as low water pressure or defective cartridges.

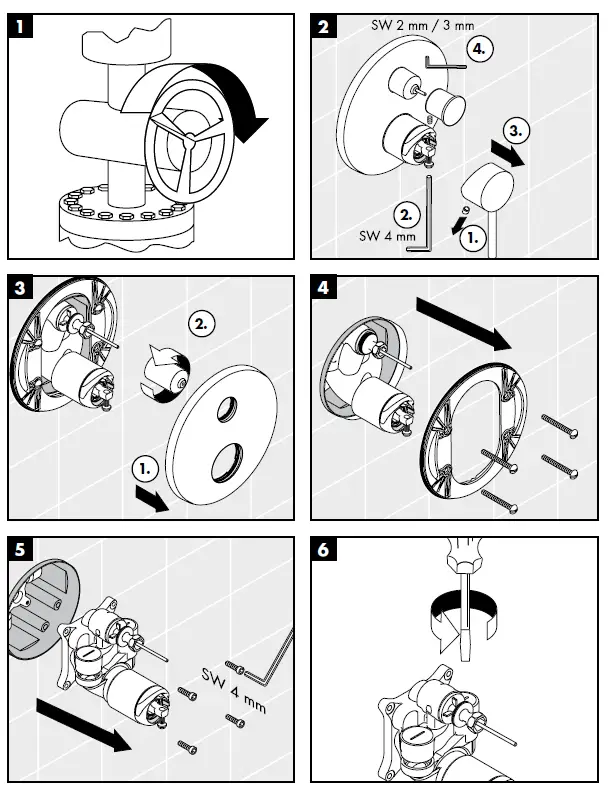

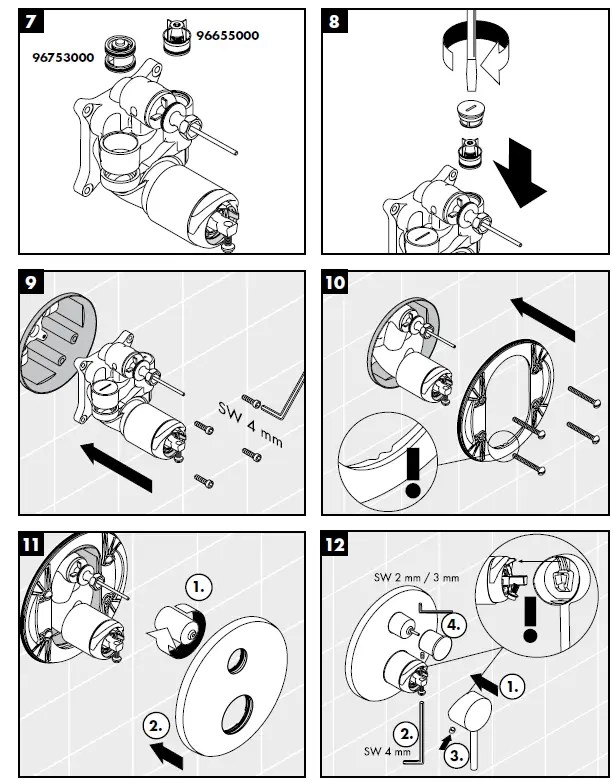

ASSEMLING
To adjust the hot water limiter on single lever mixers, please see page 33. No adjustment is necessary when using a continuous flow water heater.

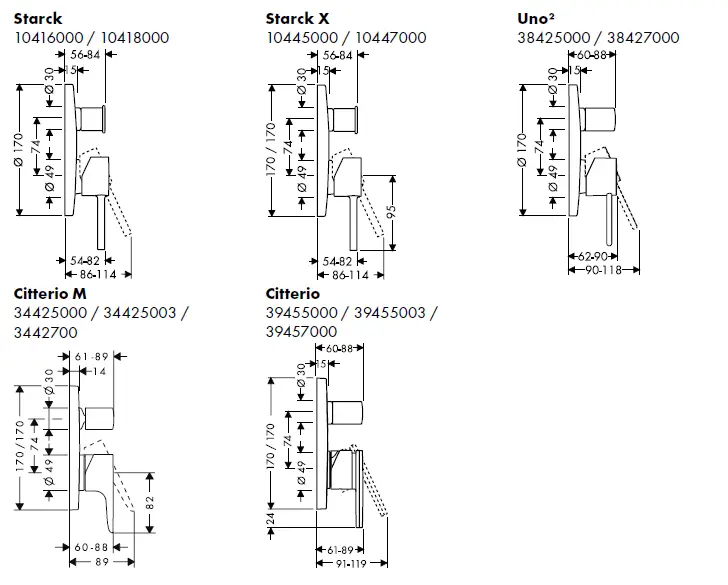

DIMENTIONS

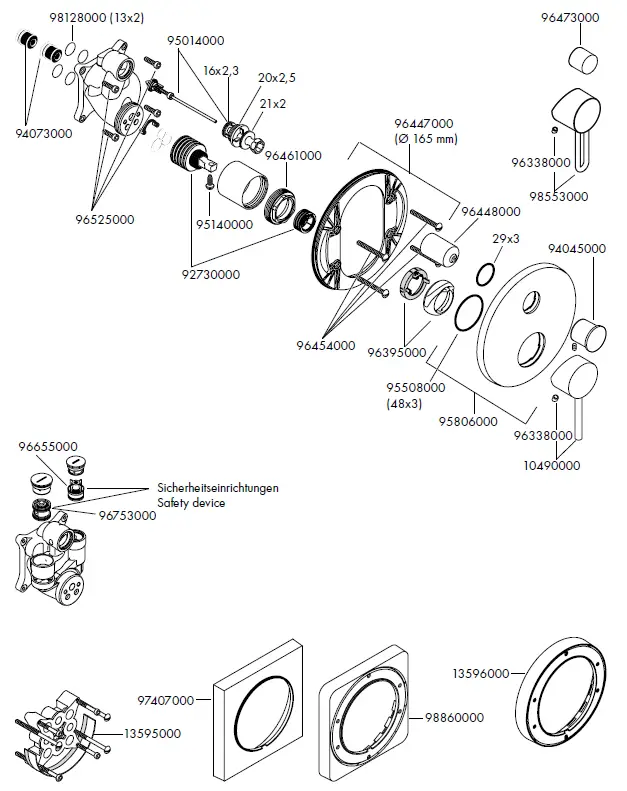

PARTS
| DVGW | P-IX | SVGW | ACS | WRAS | KIWA | ETA | |
| 10416000 | PA-IX 9709/ICC | X | X | X | X | ||
| 10418000 | BN0685 | PA-IX 18097/IDC | X | X | |||
| 10445000 | PA-IX 9709/ICC | X | X | X | X | ||
| 10447000 | BN0685 | PA-IX 18097/IDC | X | X | |||
| 34425000 | PA-IX 9709/ICC | X | |||||
| 34427000 | BN0685 | PA-IX 18097/IDC | X | ||||
| 38425000 | PA-IX 9709/ICC | X | X | X | X | X | |
| 38427000 | BN0685 | PA-IX 18097/IDC | X | X | X | ||
| 39455000 | PA-IX 9709/ICC | X | X | X | X | ||
| 39457000 | BN0685 | PA-IX 18097/IDC | X | X |
