habitat D001 Scottie King Bed Instruction Manual

SCOTTIE KING BED
Instruction Manual

Contents

Safety and Care Advice

Product Details

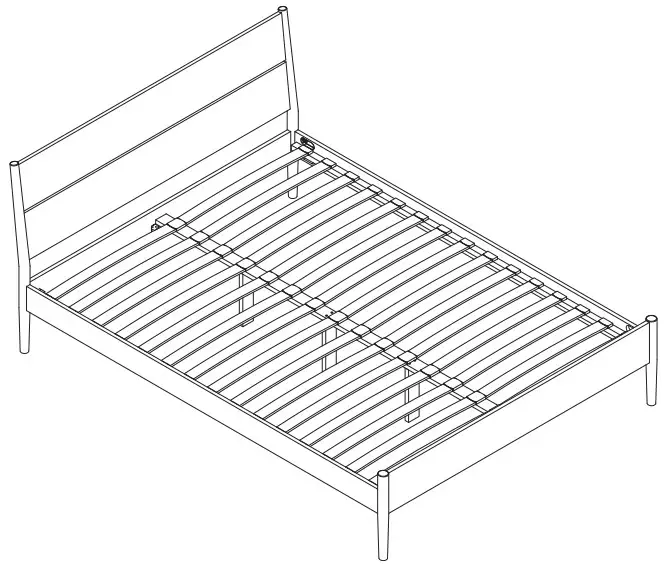

Scottie King Bed 1933774 Oak
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.

Keep children and animals away from the work area, small parts could choke if swallowed.
Make sure you have enough space to layout the parts before starting.
This product has been constructed to be used in the domestic environment only and not for commercial purposes.
Assemble the item as close to its final position (in the same room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
We do not recommend the use of power drill/drivers for inserting screws as this could damage the unit.
Only use hand screwdrivers.
Parts of the assembly will be easier with 2 people.
Dispose of all packaging carefully and responsibly.

Care and maintenance

Only clean using a damp cloth and mild detergent. Do not use abrasive cleaners.
Use a dry cloth to clean the product, furniture polish is not recommended.
From time to time check that there are no loose screws, nuts or bolts.
If there are please re-tighten.
This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Additional Guidance

Assemble all parts and bolts loosely during assembly, only once the product is complete should you fully tighten the bolts.
Regularly check and ensure that all bolts and fittings are tightend properly.
Max individual user weight 100kg
This product is compliant EN1725
Any additional or replacement parts are obtained from the manufacturer.

Argos Limited, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County Meath, Ireland.

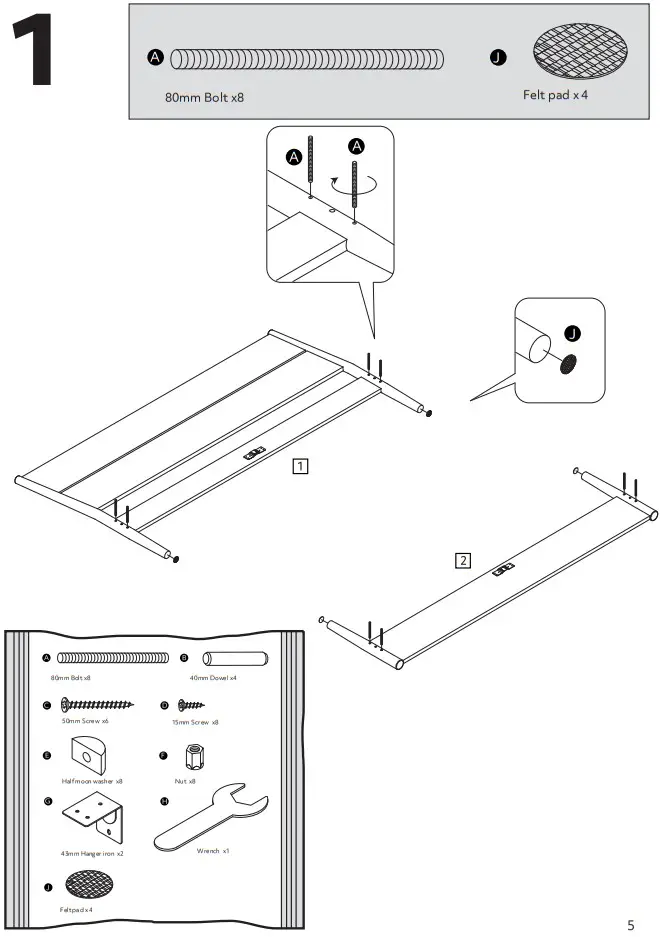

Fittings (Shown to scale)

Bag 1

Tools required
Phillips screwdriver (small & medium)

Panels

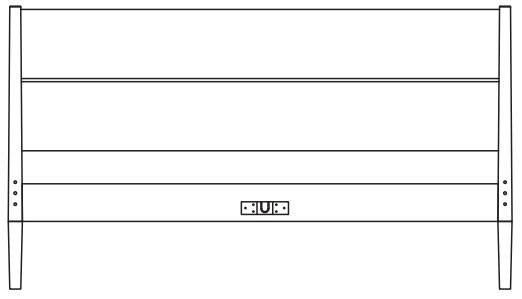

1. Head Board x 1 (1585 x 900mm)
2. Foot Board x 1 ( 1585 x 420mm)
3. Side Panel x 2 ( 2010 x 130mm)

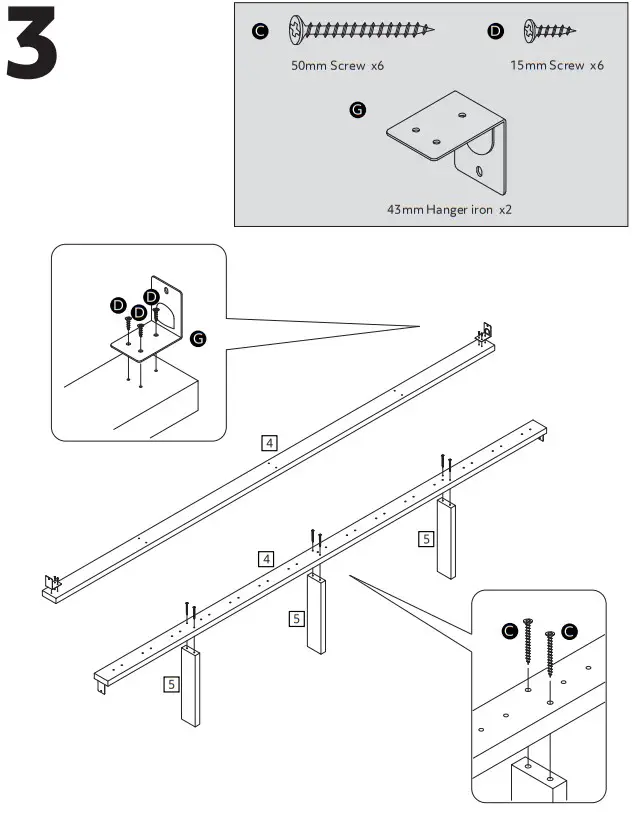

4. Center rail x 1 ( 2025 x 60mm)
5. Support Leg x 3 (265 x 60mm)
6. End Cap x 30
7. Slats x 30 (755 x 55mm)
8. Connector x 15
