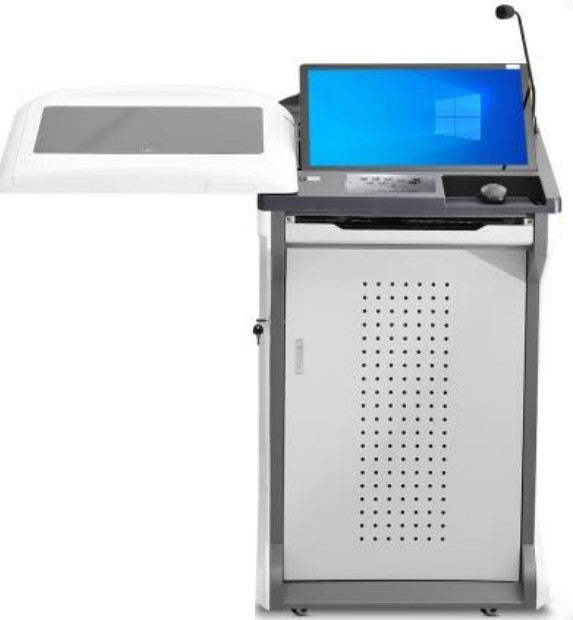

Interactive DP-400B Smart Podium
Smart Podium
Globus Impact Series – DP 400B
A modern and well-organized presentation & lecture device for seamless presentations that makes two-way interaction between the presenter and audience even more efficacious.
Aesthetically-pleasing, premium design
Globus Interactive Podium is sleek, compact in form factor and premium in design, adding aesthetic value to the place it is installed. It is made up of ABS polycarbonate for a premium nish and robust design.
PCAP and Electromagnetic Touch Technology
Projected Capacitive (also PCAP) and Electromagnetic Touch Technology provide accurate and highly sensitive touch. It supports both pen as well as nger touch.
Microphones
The Gooseneck microphone comes with a dedicated On/Off button along with an LED indicator. It is powered by a Phantom Power Supply . This podium also comes with wireless microphones apart from gooseneck microphone, to make two way communication more impactful and convenient.
Single Lock for Both Slider and Cabinet
Our Smart Podium can be locked when not in use, using a single locking mechanism for both Slider and Cabinet.
Technical Specifications
| Parameters | Specifications |
| Type/Mounting | Free Standing |
| Construction | The enclosure made of Polycarbonate/Metal Body and Steel Frame with Soft wheels. The Top sliding(Opening/Closing) cover made of Polycarbonate Body. The construction of the podium such that, while the podium is locked and not in use, there not be any port exposed on the outer body for breakage/mishandling. |
| Display | Built-in highly sensitive Interactive Panel with adjustable Motorized tilt & a mechanism to make the Panel stable so that it does not shake while writing with following minimum features – |
| Technology | Interactive Panel have both EMR (Electro magnetic resonance) & P-CAP touch technologies to have finger and 2 mm thick touch stylus |
| Screen Type | LED |
| Size | 53.0 cm (21 inches) |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:09 |
| Computer interface | One USB, One VGA/DVI/HDMI Port |
| Interactive Resolution | 4000 Lpi (lines per inch) |
| Response Time | 5ms |
| Viewing Angles | 170(H) ; 160(V) |
| Touch | Finger and Stylus |
| Reading accuracy | ±0.5 mm (center) |
| Tracking speed | Approximately 200 points per second |
| Pen Pressure sensitivity | 1024 Levels |
| System Details | |
| Processor | Intel Core i5 (10th Gen processor) |
| Small Form Factor | 2 liters Volume |
| In-Built Wi-Fi /Wireless LAN Card | Inbulit Wi-Fi / Wireless LAN Card |
| RAM | 8 GB |
| Storage | 256 GB SSD |
| Ports (Min.) | HDMI x 1, USB ports x 4, LAN Port x 1 |
| Keyboard & Mouse | Wireless |
| Operating System | Windows 10 |
| Certifications | BIS Certifications |
| Multimedia Controller | |
| Ports on front Panel of Controller (Minimum) | VGA,HDMI,USB3.0x2,Audio IN |
| Buttons on front Panel of Controller (Minimum) | Push buttons to control Volume Up& Down, Volume Mute and to switch sources of HDMI Visual Presenter, VGA Visual Presenter, HDMI Laptop, PC HDMI,VGA Laptop, VGA PC and Controller Power On/Off, Display Power On and Power Off |
| Ports on Rear Panel of Controller (Minimum) | USB 3.0 X 2,VGA Input x 2, VGA Output x 2, RCA Audio IN X 1,RCA Audio Output x 2,HDMI Inputx2,HDMI Outputx2 , Programming Port (Phoenix connector) |
| Built in HDMI Repeater | Yes (HDMI Output port support 15mtr HDMI cable) |
| Controller Resolution Output | 4K (3840 x 2160) Native |
| Power | 5 V DC (Suitable Adaptor supplied with controller) |
| Built in devices | |
| Gooseneck Microphone | Gooseneck Microphone with XLR output.It Phantom powered so that there is no requirement of batteries thereby eliminating consumable cost. The goose neck length atleast 21.5cm with ON/OFF switch and with LED light indicating ON/OFF status. The gooseneck microphone shall be permanently polarised condensor, highly directional featuring hypercardioid /lobar directivity |
Document Camera for the Conference Room
| Specifications | Description |
| Camera Sensor | 1/4″CMOS Sensor F=2.8 |
| Effective Pixels | 8 Mega Pixel |
| Frame Rate | 30fps |
| Inbuilt Microphone | Available inbuilt Microphone |
| OCR function | Support OCR technology |
| Video Output | HDMI: Full HD (1080p), HD (720p), VGA (480p); USB: Full HD (1080p), SXGA (1280 x 1024), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480), QVGA(320 x 240); VGA: HD (1360 x 768), WXGA (1280 x 800), SXGA (1280 x 1024), XGA (1024 x 768) |
| Shooting Area | A3 (420MM x 297MM) to share information more flexibility. |
| Zooming Capability | 100x Zooming Capability to capture clear and loss-less magnified image. |
| Split Screen | Device allows the live image of an object being captured to be displayed alongside an image stored on the external memory. |
| Focus Adjustment | Option of Auto/ Manual Focus Adjustment |
| LED Light | Two Type LED system Top LED & Side LED strip |
| White Balance | Auto |
| LED Light Brightness Adjustment | Support LED Light Brightness Adjustment & Dimming capability |
| Image Rotation | 90°, 180°, 270° |
| Multimedia Function | Freeze, Focus Adjustment, LED on/off, Brightness Adjustment, Contrast, Negative, Black and WhileSplit Screen, Slideshow, Video Capture, Flicker Reduction, Image Rotation(0/180degrees), Source(PC/SD Card), Image Mirror, Picture in Picture. |
| Interactive features | Touch screen support to perform interactive features |
| SD Card | Support SD/SDHC card with min. 32 GB Capability |
| File Format | JPEG (1920 x 1080), VGA (720p) |
| Connectivity ports | 1x VGA In, 1x VGA out, 1x HDMI out, 1x USB, 1x SD Card |
| Safety | Kensington lock (K-Lock) |
| Portability | Device portable structure allows users to fold and easy to store. |
| Advance Features | PC Less Annotation, Image roaming drag Region zoom in, Split Screen function, Camera Rotation, Device Portability, Microscope Capability |
| Remote Control | Device available with fully functional remote control |
| Annotation | Device have on-board Annotation feature without using any other computing device. |
| On Screen Toolbar | Have on-Screen toolbar to perform Auto focus, Magnifier, Zoom in/out, Rotate, Mirror, Freeze, Division, Snap, Record, File Browse, PIP, Annotate, Settings |
| Key on Visualizer | It have minimum Zoom in/out, Res/Exit, Menu, VGA/HDMI, Light, Auto/OK, UP/Down buttons or more for ease of access |
| Certification | BIS certifications |
| Built in Amplifier Power | Amplifier : Class D Rated Power : 250 W Impedance : MIC input: 5mV / 600Ω balanced; AUX1,2 input: 350mV / 10KΩ unbalanced RCA connection terminal Mic Input : Minimum 4 input Line Input : Minimum 2 input Output : MIX OUT: 1000mV / 470Ω unbalanced RCA connector Tone : Bass: ± 10dB at 100Hz; Treble: ± 10dB at 10KHz Frequency Response : 80Hz ~16KHz (+ 1dB, -3dB) SNR : MIC1,2,3: 66dB; AUX1,2: 85dB THD : < 0.05% (at 1KHz, 1/3 rated power) Mute Function : MIC 1 is prior to MIC2-4, AUX1-2 audio input; EMC is prior to all audio inputs Channel Crosstalk Attenuation : ≥50dB Heat Dissipation : Side-in and rear-out forced fan cooling; fan starts automatically when the device is turned on; infinitely variable speed Protection : Overheat protection, overcurrent protection, short circuit protection Power Supply : AC ~ 220V / 50Hz Power Consumption : 300W |
| Speakers | Four speakers of Minimum 50 W each a part of standard supply. Speaker Type : 2 Way drivers Effective frequency range: 80 Hz – 20 kHz Rated power : 50 watts Sensitivity : 90 dB Impedance : 200Ω ohm IP Rated: IP66 LF transducer :5-inch woofer HF transducer : 1.5-inch tweeter |
| Wireless Microphone Units | One handheld Microphone and One Lapel Microphone with single receiver supplied with a range of 10 meters. |
| Sliding Trays | Provision for keeping Keyboard & Mouse |
| Power Supply | 180 -240V, 50Hz, AC Supply |
