Give-Bat 2.6 Lithium Iron Phosphate Battery
Instruction Manual
LITHIUM IRON PHOSPHATE
BATTERY INSTALLATION MANUAL
GENERATION 1 Give-Bat 2.6, Give-Bat 5.2, Give-Bat 8.2
Contents
Give-Bat 2.6 Lithium Iron Phosphate Battery
SMALL AND COMPACT
The perfect starter battery
The 2.6kWh battery pack is ideal for New Build and Social Housing Projects where smaller storage capacity is required to start that can then be increased over time. Due to its small and compact design, it is suitable for installation in loft spaces or hard to access areas. Can be banked together to reach the desired capacity for the household. Utilizing lithium iron phosphate technology, our batteries are extremely safe and can be installed in a wide range of locations. The battery chemistry does not contain any Cobalt, making it nonflammable and the battery pack is 99% recyclable.
Specifications
| Dimensions 299H x 205D x 480W (mm) Weight 35.5 Kg Usable capacity 2.6 kWh / 51 Ah Voltage 51.2V DC Current 30A |
Warranty 26 MWh / 10 Years Operating temperature -10 o C to 55 o C Operating voltage range 45V – 58V Depth of Discharge 80% |
AGILE AND VERSATILE
Championing Modular Design
The 5.2kWh battery pack is our most versatile battery and can be installed in a wider range of locations due to its compact design and can either be wall mounted or floor stood.
This battery is primarily used in a modular way ensuring the system can grow with the needs of the consumer. Utilizing lithium iron phosphate technology, our batteries are extremely safe and can be installed in a wide range of locations. The battery chemistry does not contain any Cobalt, making it non-flammable and the battery pack is 99% recyclable.
Specifications
| Dimensions 515H x 223D x 480W (mm) Weight 63 Kg Usable capacity 5.2 kWh / 102 Ah Voltage 51.2V DC Current 50A |
Warranty 52MWh / 10 Years Operating temperature -10o C to 55 o C Operating voltage range 45V – 58V DC Depth of Discharge 80% |
OUR BESTSELLER
An ideal middle ground
The 8.2kWh battery pack is the most popular Battery pack of its size for medium size properties. During the summer there is enough capacity to store up to 50% of your daily generated energy (based upon a 4kWp PV system) and in the winter the pack can deliver up to 80% of your daily household energy (based upon a household using 10kWh/Day).
Utilizing lithium iron phosphate technology, our batteries are extremely safe and can be installed in a wide range of locations. The battery chemistry does not contain any Cobalt, making it non-flammable and the battery pack is 99% recyclable. Our market leading battery warranty means you can use your battery as often as you need for 10 years and still be covered.
Specifications
| Dimensions 669H x 223D x 480W (mm Weight 94 Kg Usable capacity 8.2 kWh / 160 Ah Voltage 51.2V DC Current 80A |
Warranty Unlimited Cycles / 10 Years Operating temperature -10 o C to 55 o C Operating voltage range 45V – 58V DC Depth of Discharge 100% |
| Item | Item Name | Qty |
| A | Battery Module | 1 |
| B | Wall Mounting Bracket | 1 |
| C | Fixing Kit | 4 or 6* |
| D | Cable Pack (Power and Data 2m) | 1 |
| E | Waterproof Blanking Plug** | 1 |
| F | USB Stick** | 1 |
* Expansion bolts quantity varies. 4 included with GIV-BAT 2.6, 6 included with GIV-BAT 5.2 and above.
** This may be pre-installed
GENERAL INFORMATION
Introduction
All information contained in this booklet refers to the assembly, installation, commissioning, and maintenance of Generation 1 batteries. Please retain this manual for future reference.
Legal Disclaimer: This document is property of GivEnergy, reproduction is prohibited.
Installation Requirements
Installation of all GivEnergy equipment must be carried out by a GivEnergy Approved Installer.
Unit Information
The Generation 1 batteries are designed to work with a GivEnergy AC Coupled or Hybrid Inverter. The batteries work with renewable generation or import from the grid at off-peak times when prices are lower, and discharge during busier periods when prices are more expensive.
Storing the Battery
The units must be stored in their original packaging at temperatures between -30ºC – 60ºC. Please note that between -10ºC – 0ºC there may be reduced performance in charging and discharging. Do not stack more than 4 units on top of each other.
Packaging Contents
When unpacking, please check the following:
There are no missing accessories from the packaging list
The model and specification of the battery’s nameplate match the order specifications
If any damaged or missing parts are found, please contact GivEnergy on 01377 252 874 or email [email protected] immediately. Returns must be provided in original or equivalent packaging. The cardboard packaging is recyclable.

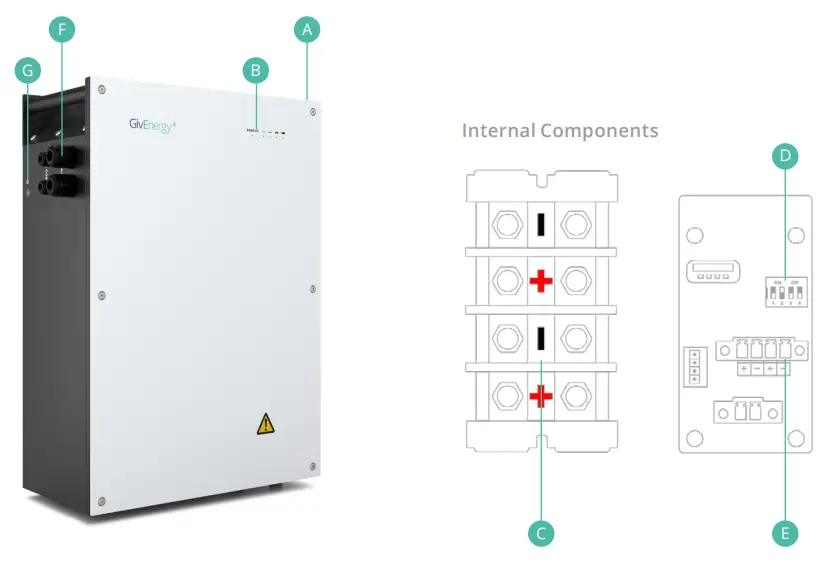

| Item | Item Name | Function |
| A | ON/OFF Switch | System Switch |
| B | STATUS | Status Indicators |
| C | Power Terminal | Power Connectors |
| D | Address Dip Switch | Battery ID Switch |
| E | Comms Sockets | Inverter/Battery Comms |
| F | Cable Entry Glands | Cable to Battery |
| G | Earthing Point | Earth Bonding |
SAFETY AND INSTALLATION
Safety Instructions
Extra care and attention must be taken when installing and maintaining any GivEnergy equipment.
The system is capable of retaining voltage, even when disconnected
- If you suspect something is wrong with the battery, contact GivEnergy on 01377 252 874 or email [email protected].
- If any damaged or missing parts are found, please contact GivEnergy on 01377 252 874 or email [email protected] immediately. Returns must be provided in original or equivalent packaging. The cardboard packaging is recyclable.
Installation Instructions
- All electrical installations must be carried out by a qualified and registered electrician and in accordance with the IEE Wiring Regulations
- Ensure batteries are always fixed to the wall using the mounting bracket, even when the weight of the product is on the floor
- All GivEnergy equipment must be installed by a GivEnergy approved installer
- Externally mounted batteries must always be wall mounted above the frost-line or a minimum of 50mm
- An earth bond must be installed between all batteries and inverters
- Do not remove the front cover unless instructed by the GivEnergy support team
 |
Do not use the battery if there are any deformities, such as bulging or leakages |
 |
Do not puncture the battery |
 |
Do not throw the battery or use forceful impact |
 |
Do not attempt to repair the battery yourself (please call your approved installer) |
 |
The battery must be installed vertically, never install horizontally, avoid tilting the unit |
STEP-BY-STEP INSTALLATION

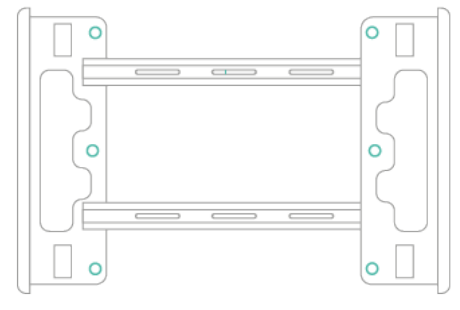

- Place the wall mounting bracket horizontally onto the wall and mark the position of the bracket holes.
- Drill 4 (Giv-Bat 2.6) or 6 (Giv-Bat 5.2 and above) holes at the marked positions, at least 75mm deep. Fix the mounting bracket to the wall using the expansion bolts.

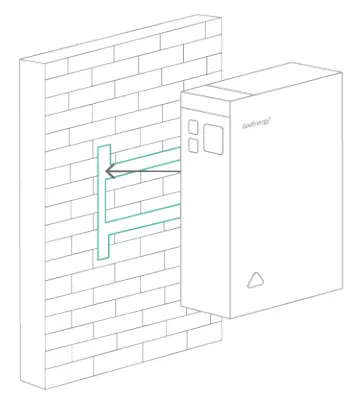

- Mount the battery onto the mounting bracket.
- For Generation 1 Inverters only
4A. A 100A DC circuit breaker must be installed inline between the inverter and battery pack. Only one circuit breaker is required, using the provided cable. The largest battery should always be installed between the inverter and any other batteries.
For Generation 2 Inverters only
4B. A 100A DC circuit breaker must be installed inline between the inverter and battery pack. Only one circuit breaker is required, using the provided cable. The largest battery should always be installed between the inverter and any other batteries.
For Generation 3 Inverters only
4C. If multiple Generation 1 batteries are installed, connect output B of the first battery to output A on the additional battery packs using a lug to plug cable.
For additional batteries
4D. If multiple Generation 1 batteries are installed, connect output B of the first battery to output A on the additional battery packs using a ring terminal cable. There must be no more than 5 batteries installed. This is applicable regardless of the generation of the inverter.
- Push the ‘On/Off’ button on the right hand side of the battery, the LEDs will light up.
- Commission the battery on the online portal and ensure the battery is operating normally.
DIP SWITCHES & STATUS INDICATORS
Switch 1
| Battery | Description | |
| Master |  |
0, 0, 0, 0 |
| Slave 1 |  |
1, 0, 0, 0 |
| Slave 2 |  |
0, 1, 0, 0 |
| Slave 3 |  |
0, 0, 1, 0 |
| Slave 4 |  |
0, 0, 0, 1 |
Status Indicators
What does the STATUS light mean?
| Green | Firmware update |
| Amber/Green, flashing | Healthy, good state of charge (SOC) |
| Green, flashing | Lower state of charge, outside of normal operating voltage |
| Red, flashing | Very low state of charge |
| Red | Fault. Logged in system. If the light is red, call GivEnergy for remote diagnostics. |
MANUFACTURER WARRANTIES
GivEnergy is the main supplier and manufacturer of the product. GivEnergy warrants that your product is (a) of acceptable quality and (b) does not have any latent defects.
If you suspect something is wrong with the battery, contact GivEnergy on 01377 252 874 or email
[email protected].
If any damaged or missing parts are found, please contact GivEnergy on 01377 252 874 or email [email protected] immediately. Returns must be provided in original or equivalent
packaging. The cardboard packaging is recyclable.
