Gibson KG7S 95.0 AFUE High Efficiency Furnace Gas Furnace Owner’s Manual

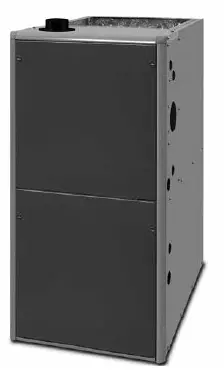

Gibson KG7S 95.0 AFUE High Efficiency Furnace Gas Furnace

Technical Specifications

Model: G7SD

• Type: High Efficiency, Single Stage Condensing, Up flow/Horizontal Gas Furnace
• AFUE: 95.0%
• Input: 38,000 – 120,000 But

Product Features and Benefits

• Flame Sensor
• Finish Flange
• Roll-Out Switch
• Burner Assembly
• Main Air Limit Switch
• Inducer Limit Switch
• Pressure Switch (Inducer)
• Inducer Assembly
• Blower Door Switch
• Igniter
• Gas Valve
• Furnace Control Board
• Pressure Switch (Condensate)
• Transformer
• Motor Choke
• Motor Control Board
• Blower Assembly

TECHNICAL SPECIFICATIONS

G7SD
High Efficiency, Single Stage
Condensing, Up flow/Horizontal
Gas Furnace Models
95.0 AFUE 38,000 – 120,000 But Input

• The high efficiency up flow gas furnace may be installed free standing in a utility room, basement, or enclosed in an alcove or closet. Up flow/horizontal units come ready for up flow or horizontal application. The extended flush jacket provides a pleasing “appliance appearance.” Design certified by CSA for application in Canada and the United States.
• For California installations in SCAQMD only: This furnace does not meet the SCAQMD Rule 1111 NOx emission limit (14 ng/J), and thus is subject to a mitigation fee of up to $450. This furnace is not eligible for the Clean Air Furnace Rebate Program: www.CleanAirFurnaceRebate.com.

FEATURES and BENEFITS

• 100% fired and tested: All units and each component are tested on the manufacturing line.
• Best packaging in the industry: Unique corner post design assures product will arrive to the homeowner dent free.
• 30 second blower delay at start-up assures a warm duct temperature at furnace start-up. Adjustable blower off settings (60, 90, 120 and 180 seconds).
• 30 second post purge increases life of heat exchanger.
• Hot surface igniter: Innovative application of a silicon nitride type igniter. Utilizes proven Smaltite® technology.
• Color coded wire harness: Designed to fit the components, all with quick-connect fittings for ease of service and replacement.
• Flexible category IV venting system: May be vertically or horizontally vented using either a one-pipe or two-pipe system for maximum flexibility in installation.
• High Static Blowers: All models equipped with high static blowers.
• Low Boy Height: Easy to apply in low ceiling applications, works well with taller high SEER coils, easier to handle and install.
• Tubular primary heat exchanger: Heavy gauge aluminized steel heat exchanger and stainless steel secondary heat exchanger assures a long life.
• 60 second fixed cooling cycle blower-off delay (TDR) increases cooling performance when matched with a Nortek Global HVAC coil.
• High efficiency blower kits maximize efficiencies. On select units, a SEER improvement of up to 1 point is realized.
• Multi-speed direct drive blower: Designed to give a wide range of cooling capacities. Switches on PCB, provide ultra easy motor speed selection.
• LP convertible: Simple burner orifice and regulator spring change for ease of convertibility.
• Diagnostic lights for easy troubleshooting without counting flashes: Dedicated light for flame signal strength and 2 lights in combination to indicate all other fault codes with easy to recognize states without counting flashes.
• Incorporates integrated control board with connections for electronic air cleaner and humidifier.
• Two piece door design enhances furnace appearance and uses captured screws to prevent losing door screws.
• Blower Compartment: Sealed door to reduce air leakage and insulated for ultra quiet operation.
• Sealed Vestibule reduces burner and inducer sound levels.
• Furnace Air Leakage: These furnaces comply with Energy Star cabinet air leakage requirement of less than or equal to 2%. Keep the conditioned air flowing to where it’s needed.
• Polypro by Duramen: These furnaces have been tested with and are approved to be installed with Draven’s Polypro venting system.

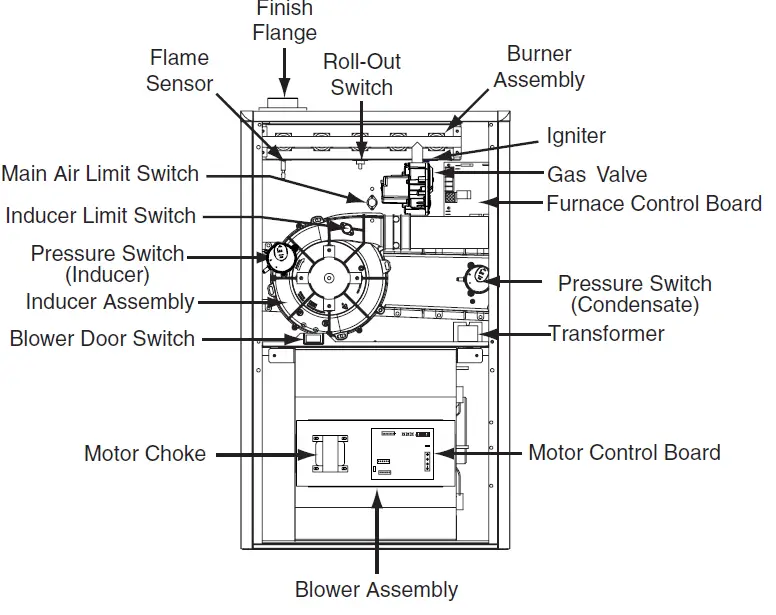

GAS FURNACE COMPONENTS

UPFLOW / HORIZONTAL FURNACE

*SD Series -Upflowed / Horizontal Furnace

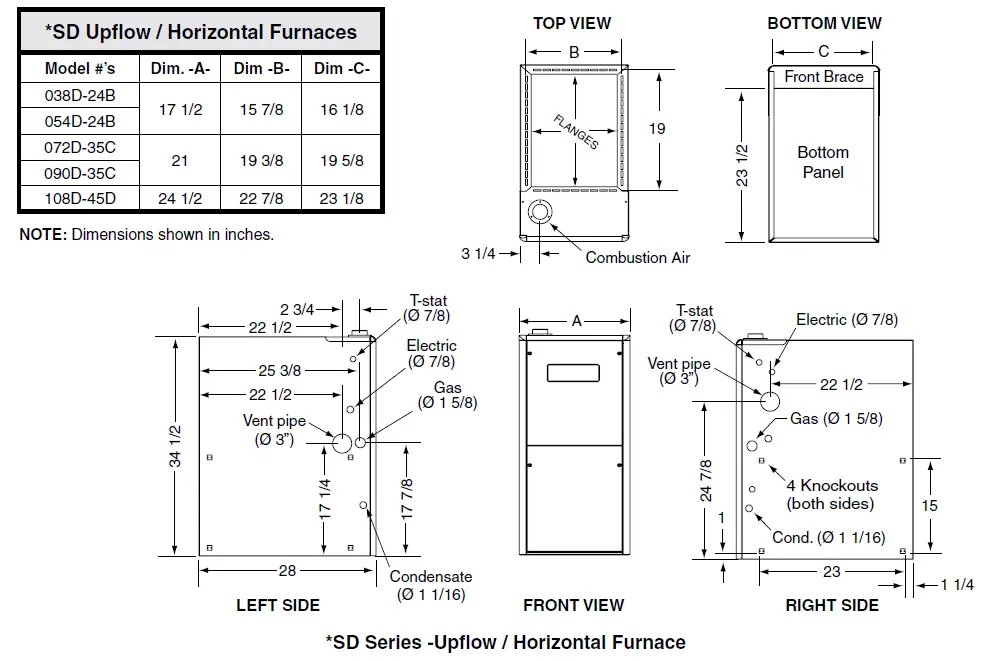

DIMENSIONS

*SD – UPFLOW / HORIZONTAL FURNACES
Model Number & Heating Input (B.Th.)	Motor Speed	External Static Pressure (Inches Water Column)
		0.1		0.2		0.3		0.4		0.5		0.6		0.7		0.8
		CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise
SD038D-24B Bottom Return (38,000)	HIGH* MED-H** MED-L LOW	1519 1238 1094 841	21 28	1483 1216 1082 817	22 28	1433 1188 1052 801	22 28	1397 1164 1034 786	23 29	1335 1136 1021 750	24	1272 1092 977 720	25	1214 1043 928 683	26	1130 973 865 639	27
											30 34 46		31 34 48		32 36 49		34 37 53
			31 40		32 42		32 43		33 45
SD038D-24B Side Return (38,000)	HIGH* MED-H MED-L** LOW	1664 1272 1130 869	18 26 29	1631 1255 1114 839	21 27	1596 1249 1100 809	21 27	1546 1217 1079 790	22 28	1489 1189 1048 764	23 29	1433 1145 1025 739	24	1366 1096 987 711	25	1285 1036 944 664	26
													30 33 47		31 35 48		33 36 52
					31 42		31 42		31 44		33 45
			39
SD054D-24B Bottom Return (54,000)	HIGH* MED-H MED-L** LOW	1519 1238 1094 841	33 40 46 59	1483 1216 1082 817	34 41 46	1433 1188 1052 801	35 42 48	1397 1164 1034 786	36 43 48	1335 1136 1021 750	37 44 49	1272 1092 977 720	39 46 51	1214 1043 928 683	41 48 54	1130 973 865 639	44 51 58
					61		62		64		67		69		73		78
SD054D-24B Side Return (54,000)	HIGH* MED-H MED-L** LOW	1664 1272 1130 869	30 39 44 58	1631 1255 1114 839	31 40 45 60	1596 1249 1100 809	31 40 45	1546 1217 1079 790	32 41 46	1489 1189 1048 764	34 42 48	1433 1145 1025 739	35 44 49	1366 1096 987 711	37 46 51	1285 1036 944 664	39 48 53
							62		63		65		68		70		75
SD072D-35C Bottom Return (54,000)	HIGH* MED-H** MED-L LOW	1933 1872 1320 1185	34	1857 1804 1299 1170	36 37 51 57	1780 1731 1264 1132	37 39 53 59	1695 1639 1233 1102	39 41 54 60	1599 1551 1183 1067	42 43 56 62	1498 1458 1126 1015	45 46 59	1396 1353 1059 947	48 49 63	1280 1237 963 856	52 54
			36 51 56
																	69 78
													66		70
SD072D-35C Side Return (54,000)	HIGH* MED-H** MED-L LOW	1916 1815 1259 1139	35 37 53 59	1848 1771 1241 1120	36 38 54 60	1773 1711 1224 1096	38 39 54 61	1692 1641 1192 1075	39 41 56 62	1613 1553 1163 1047	41 43 57 64	1515 1468 1115 1014	44 45 60	1426 1373 1056 959	47 49 63	1316 1270 982 884	51 52
																	68 75
													66		70
SCD72D-35C Side + Bottom or 2 Sides (72,000)	HIGH* MED-H** MED-L LOW	1954 1869 1287 1147	34	1890 1805 1262 1115	35 37 53 60	1824 1741 1231 1097	37 38 54 61	1741 1685 1197 1075	38 40 56 62	1656 1607 1166 1047	40 41 57 64	1564 1516 1117 1014	43 44 60	1470 1419 1061 959	45 47 63	1352 1308 966 884	49 51
			36 52 58
																	69 75
													66		70
SD090D-35C Bottom Return (90,000)	HIGH* MED-H** MED-L LOW	2288 2144 1874 1541	36 39 44 54	2236 2093 1845 1516	37 40 45 55	2161 2049 1806 1509	39 41 46 55	2092 1985 1766 1486	40 42 47 56	2017 1912 1717 1456	41 44 49 57	1934 1842 1661 1402	43 45 50 59	1841 1764 1582 1361	45 47 53 61	1748 1668 1503 1294	48 50 55 64
SD090D-35C Side Return (90,000)	HIGH* MED-H** MED-L LOW	2273 2084 1784 1482	37 40 47 56	2222 2039 1777 1470	38 41 47 57	2164 2007 1749 1444	39 42 48 58	2098 1955 1725 1432	40 43 48 58	2025 1895 1679 1405	41 44 50 59	1947 1832 1629 1375	43 45 51 61	1864 1750 1576 1339	45 48 53 62	1780 1665 1501 1286	47 50 56 65
SCD90D-35C Side + Bottom or 2 Sides (90,000)	HIGH* MED-H** MED-L LOW	2328 2124 1825 1509	36 39 46 55	2273 2108 1809 1488	37 40 46 56	2224 2052 1781 1468	37 41 47 57	2151 2018 1752 1440	39 41 48 58	2082 1954 1706 1422	40 43 49 59	2005 1884 1676 1379	42 44 50 60	1920 1813 1615 1351	43 46 52 62	1825 1725 1535 1292	46 48 54 64

BLOWER PERFORMANCE – G7SD Continued

*SD – UPFLOW / HORIZONTAL FURNACES
Model Number & Heating Input (Btuh)	Motor Speed	External Static Pressure (Inches Water Column)
		0.1		0.2		0.3		0.4		0.5		0.6		0.7		0.8
		CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise	CFM	Rise
SD108D-45D Bottom Return (108,000)	HIGH* MED-H** MED-L LOW	2276 2113 1819 1496	44 47 55 67	2228 2078 1789 1484	45 48 56 67	2173 2019 1757 1459	46 50 57 69	2108 1970 1706 1430	47 51 59 70	2035 1904 1666 1402	49 53 60	1961 1840 1610 1363	51 54 62	1876 1768 1551 1330	53 57 64	1778 1677 1486 1262	56 60 67
											71		73		75		79
SD108D-45D Side Return (108,000)	HIGH* MED-H** MED-L LOW	2306 2135 1845 1543	43 47 54 65	2247 2103 1834 1521	45 50 57 69	2192 2050 1805 1502	46 51 58 70	2121 1995 1776 1477	47 53 59	2044 1935 1719 1452	49 54 61	1979 1858 1663 1412	51 57 63	1892 1778 1605 1368	53 59 66	1787 1690 1533 1314	56 62 69
									71		73		75		77		80

VENTING

All models are approved for vertical non direct (1 pipe) and direct (2 pipe) venting applications. See Vent Table below for specified sizes and allowable lengths.

VENT TABLE

	SINGLE PIPE LENGTH (FT.) with 1 long radius elbow*		DIRECT VENT, DUEL PIPE LENGTH (ft.) WITH 1 long radius elbow on each pipe*
	OUTLET	OUTLET	INLET/OUTLET	INLET/OUTLET
MODELS	2”	3”	2”	3”
SD038	50	70	50	70
SD054	70	90	70	90
SD072	50	90	50	90
SD090	60	90	60	90
SD108	N/A	90	N/A	90

* NOTE

1. Subtract 2.5 ft. for each additional 2″ elbow and 3.5 ft. for each additional 3″ elbow.
2.  Two 45 degree elbows are equivalent to one 90 degree elbow.
3. One short radius elbow is equivalent to two long radius elbows.
4. Do not include termination elbows in calculation of vent length.
5. This table is applicable for elevations from sea level to 2000 ft. For higher elevations decrease vent pipe lengths by 8% per 1000 ft. of altitude.
6. Only the listed pipe materials are approved for use with FG7 Condensing Furnaces.

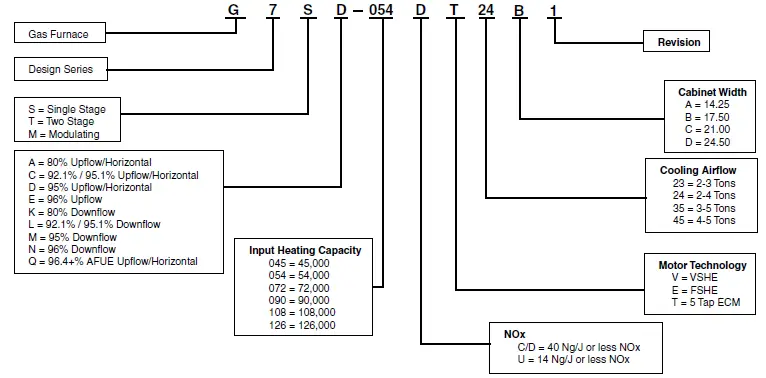

MODEL IDENTIFICATION CODE

SPECIFICATIONS

G7SD MODEL NUMBERS:	-038D-T24B1	-054D-T24B1	-072D-T35C1	-090D-T35C1	-108D-T45D1
Input – But (a)	38,000	54,000	72,000	85,000	108,000
Heating Capacity – But	36,000	51,000	68,000	81,000	103,000
AFUE (b)	95.0 / 94.0	95.0 / 90.0	95.0 / 90.0	95.0 / 94.0	95.0 / 90.0
Blower D x W	10 x 8	11 x 8	10 x 10	11 x 10	11 x 10
Motor H.P. – Speed – Type	3/4 – 5 – ECM	3/4 – 5 – ECM	3/4 – 5 – ECM	1 – 5 – ECM	1 – 5 – ECM
Motor FLA	8.8	8.8	8.8	11.5	11.5
Rated Ext. SP – In. W.C.	0.5	0.5	0.5	0.5	0.5
Temperature Rise Range – ºF	25-55	30-60	35-65	35-65	35-65
Shipping Weights	100lbs	120lbs	130lbs	135lbs	155lbs

Note

• All models are 115V, 60 Hz. Gas Connections are 1/2″ N.P.T. AFUE = Annual Fuel Utilization Efficiency
• Ratings to 2,000 ft. Over 2,000 ft. reduce 4% for each 1,000 ft. above sea level.
• AFUE for Up flow/Horizontal application.

ACCESSORIES

G7SD KITS
Description	SKU
2″ Concentric vent kit, Canadian and US approved	904952
3″ Concentric vent kit, Canadian and US approved	904953
2″ Side wall vent kit	904617
3″ Side wall vent kit	904347
U.S. LP Conversion kit (0 to 10,000 ft.)	905028
Canada LP Conversion kit (0 to 4,500 ft.)	905029
Bottom return filter 20 per box, “B” cabinet	904916
Bottom return filter 20 per box, “C” cabinet	904917
Bottom return filter 20 per box, “D” cabinet	904918
Side return filter kit	541036
Neutralizer kit	902377
“A” Cabinet variable speed, high efficiency, VSHE	904876
“B” Cabinet variable speed, high efficiency, VSHE	904877
“C” Cabinet variable speed, high efficiency, VSHE	904878
“D” Cabinet variable speed, high efficiency, VSHE	904879
Furnace Twinning Kit	1010035

GENERAL TERMS OF LIMITED WARRANTY

• Nortek Global HVAC, LLC will furnish a replacement for any part of this product which fails in normal use and service within the terms and conditions of the warranty.
• For complete details of the Limited Warranty, including applicable terms and conditions, see your local installer or contact the Nortek Global HVAC, LLC warranty department for a copy.
• Before purchasing this appliance, read important energy cost and efficiency information available from your retailer. Specifications and illustrations subject to change without notice and without incurring obligations. Printed in U.S.A (10/2021)
• 593F-1021 (Replaces 593F-0420)
• www.gibsonhvac.com
• GIBSON is a pending or registered trademark of Electrolux Home Products Inc. and used under a license from Electrolux Home Products, Inc. © Nortek Global HVAC, LLC. All Rights Reserved.
