GIANNI INDUSTRIES INC ML-350MVGL Electric Locks
Contents
Other Model
ML-350M
The GEM family of European electric locks are high performance locks for double swing doors. The ML-300- SW comes with a key cylinder as an option, and also the bolt deadlocks automatically when the door is closed to be secured.
Preload
The ML-350/360 Series has a robust stainless steel construction and is designed with its high preload release capability. It opens electrically with up to 500lbs of preload that allows smooth operation under varying loads on the doors and overcomes door preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.
Standard Features
- For double swing doors
- For narrow frames
- Brushed stainless steel faceplate
Other Features
- Field reversible fail-safe or fail-secure
(For ML-210N-SW series/ML-300-SW) - Lock and latch monitor (For ML-350M/360M series)
- Optional key/thumb turn override
(For ML-300/301-SW)
Patents, Approvals, and Listings
- CE: EN14846: 3Y5-0G101 (ML-350M/360M)
- CE: EC3O3155 (ML-350M/360M)
- CE: EC9D3005 (ML-300/210)
- NF S 61-937 compliant (ML-350/360)
- Patented in China (ML-300/210)
- Patented in US (ML-300/210)
- Fire resistance tested to BS EN 1634-1: 2014 and BS EN 1363-1: 2012 (ML-350M)
Electric Locks
| Models | Voltage | Current Draw | Lock Monitor | Door Status Monitor | Installation Direction | Fail-Safe | Reversible Fail-Safe Or Fail-Secure | Optional Accessory | Pre-Load (Side Load) 500 lbs. | Fire- Rated |
| ML-210N-SW ML-210N-SW-VGL ML-211-SW |
12 to 24 VDC/AC | 250mA/12VDC
150mA/24VDC |
 |
|
Horizontal or Vertical | |
||||
|
|
||||||||||
| ML-300-SW ML-301-SW | 12 to 24 VDC/AC | 250mA/12VDC 150mA/24VDC |
|
|
Vertical | |
Cylinder Key | |||
|
|
||||||||||
| ML-350 ML-360 | 24 VDC |
280mA/12VDC 140mA/24VDC |
Horizontal or Vertical | |
|
|||||
| ML-350M ML-360M ML-350MVGL |
12 or 24 VDC | 280mA/12VDC 140mA/24VDC |
|
|
ML-350M only |

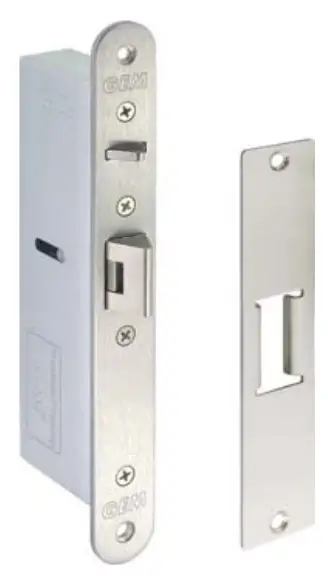

- ML-210N-SW
ML-211-SW

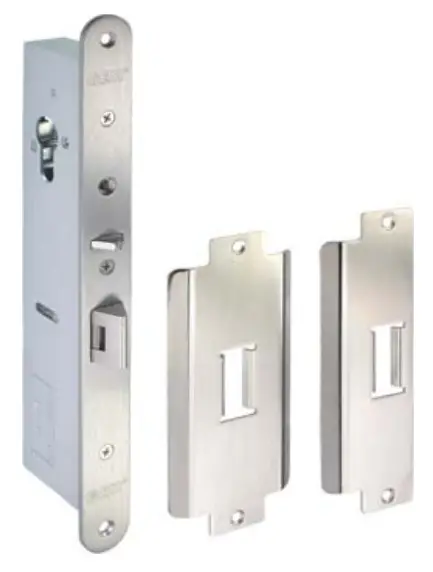

- ML-300-SW
ML-301-SW
Optional key/thumbturn override

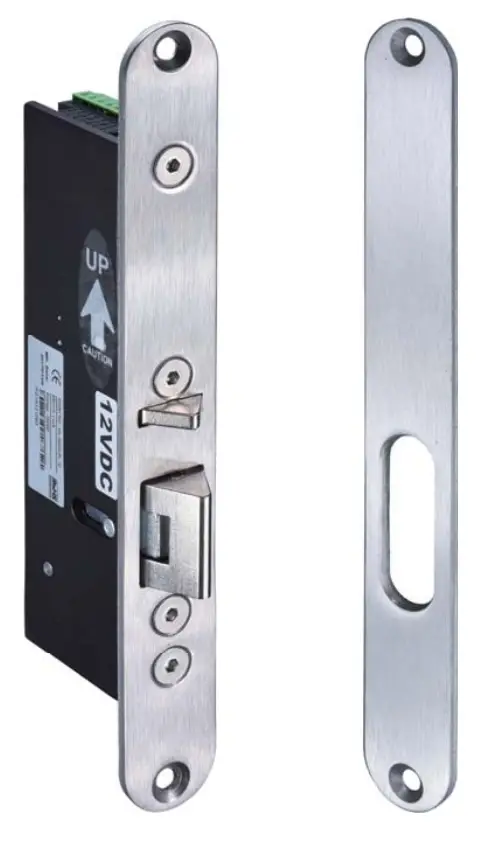

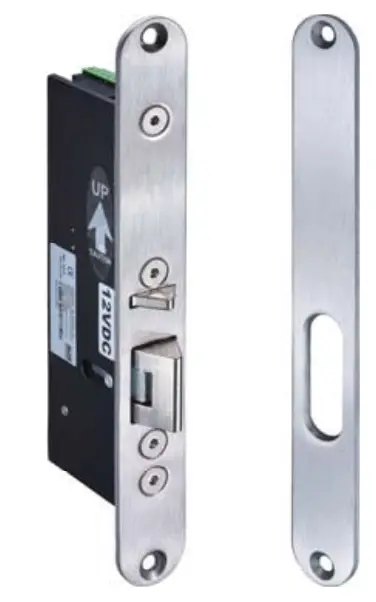

- ML-350(M)
Includes 5 stainless steel filler plates to compensate for wider door gaps (Ideal door gap no more than 5 mm)

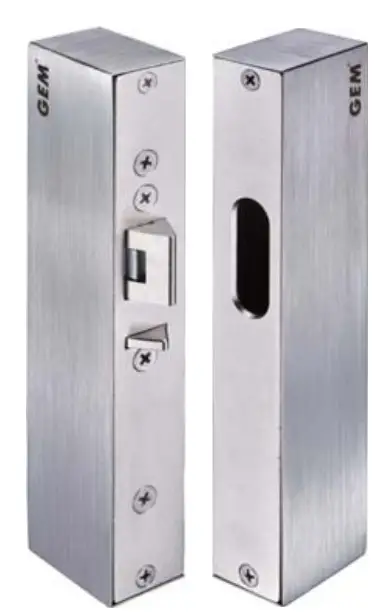

- ML-360(M)
ML-350(M) lock and surface mount stainless steel housing
- ML-210N-SW-VGL
ML-210N-SW lock, SMB-210 surface mount bracket and UBK-210 glass mount bracket

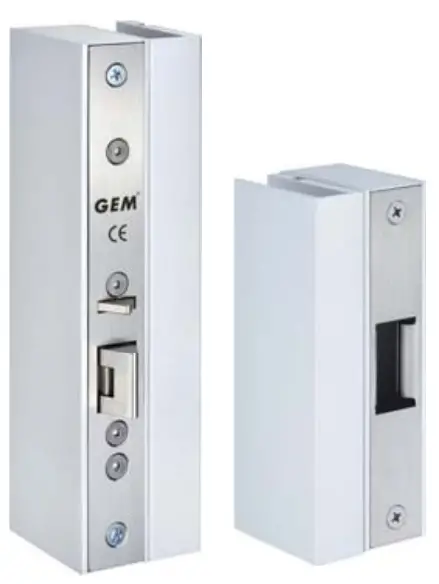

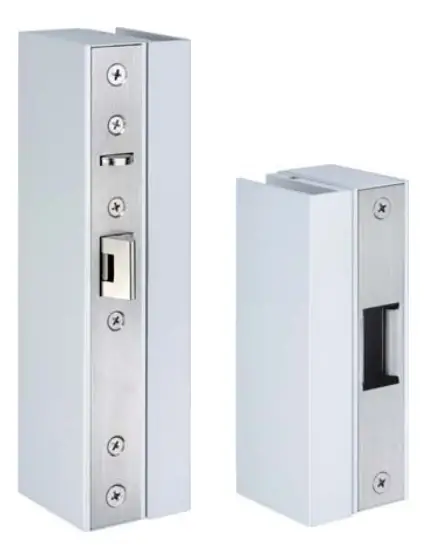

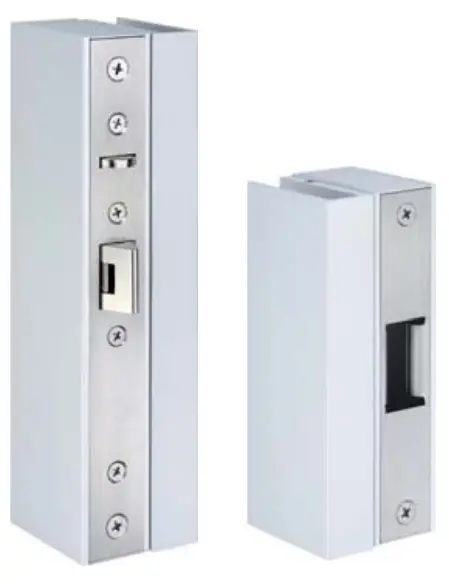

- ML-350MVGL
ML-350M lock and glass mount brackets
(For frameless glass doors & walls)

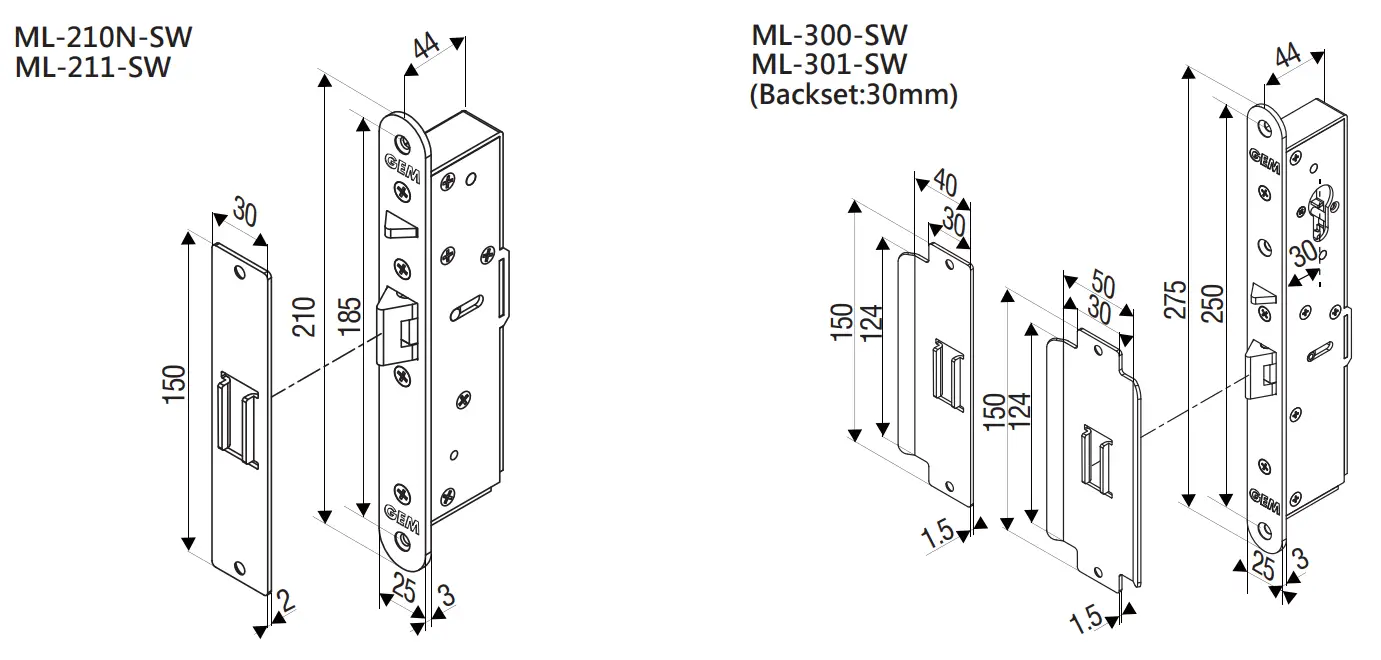

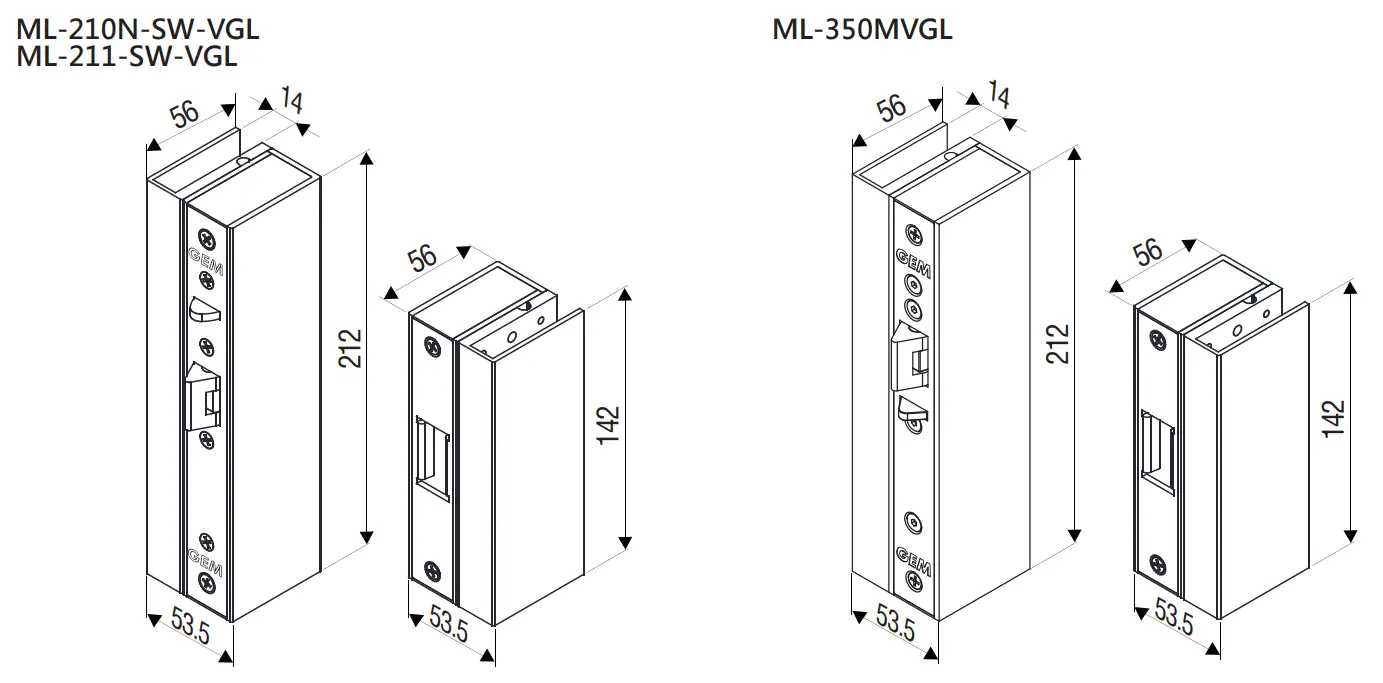

Dimensions
Optional Cylinder & Key Accessories (For ML-300/301-SW)

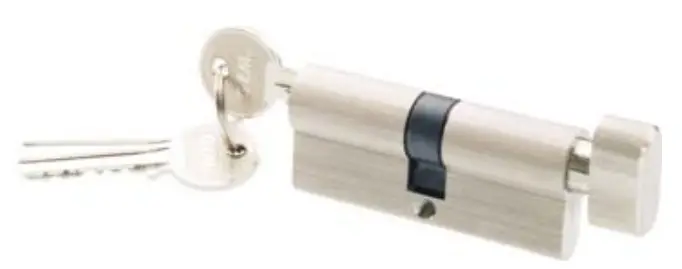

ECY-72S
Euro-profile thumbturn cylinder
(Oveall 72mm long, for maximum door leaf depth of 52mm )

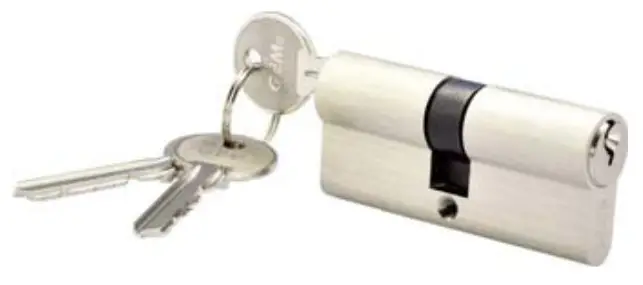

ECY-72D
Euro-profile double cylinder
(Oveall 72mm long, for maximum door leaf depth of 52mm)
Warranty
The product is warranted against defects in material and workmanship while used in normal service for a period of 1 year from the date of sale to the original client. The GEM policy is one of continual development and improvement; therefore GEM reserves the right to change specifications without notice.
Customer Support
FIRE Tested BSEN 1634-1: 2014
and BSEN 1363-1: 2012
Tel: +886-2-2267-7986 Fax: +886-2-2267-9876
www.gianni.com.tw [email protected]
