Before assembling the furniture, carefully read the assembly instructions!
Ref.: 1509
Congratulations! You have purchased a product of excellent quality, made from MDP or MDF wood veneer, extracted from renewable forests. It has high strength and current design.
Contents
ASSEMBLY INSTRUCTIONS
- Check all parts before starting assembly.
ATENTION - When starting the assembly, do not support the parts on the wall.
- When placing parts and hardware aside, be careful not to lose them
- The furniture must be mounted on the floor, to do this, use the box itself to protect and not damage the floor.
- Begin assembly by following the step-by-step instructions.
- It’s the assembler’s responsibility to follow the instructions in this manual, which are fundamental to the structure of the furniture.
CARE
- Care and cleaning should be done with a cloth slightly moistened with water.
- Do not use abrasive products, such as soap, detergents and steel sponge.
- Do not use wax or oil to shine the furniture.
- Do not expose the furniture to weather or excessive heat.
- When the assembly is finished, clean the room and the furniture.
TOOLS
 |
 |
| HAMMER | RUBBER HAMMER |
 |
 |
| MEASURING TAPE | PHILLIPS SCREWDRIVER |

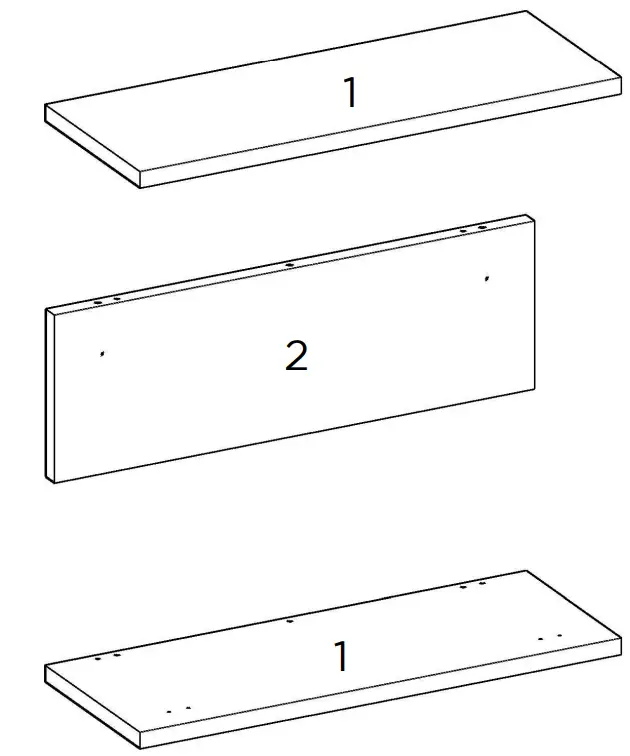

PARTS
| No | DESCRIPTION | OTY |
| 1 | BOTTOM / TOP | 2 |
| 2 | BACK PANEL | 1 |
| DESCRIPTION | OTY | |
| A |  WOODEN DOWEL |
4 |
| B |  MINIFIX SCREW |
6 |
| C |  MINIFIX DRUM |
6 |
| D |  SCREW 4X2Omm |
8 |
| E |  WIRE |
2 |
| P |  SCREW SX6Omm |
2 |
| G |  PLASTIC BUSHING |
2 |
| H |  HOLE COVER |
2 |
USE THE RULER TO IDENTIFY THE SCREWS
WEIGHT SUPPORTED
