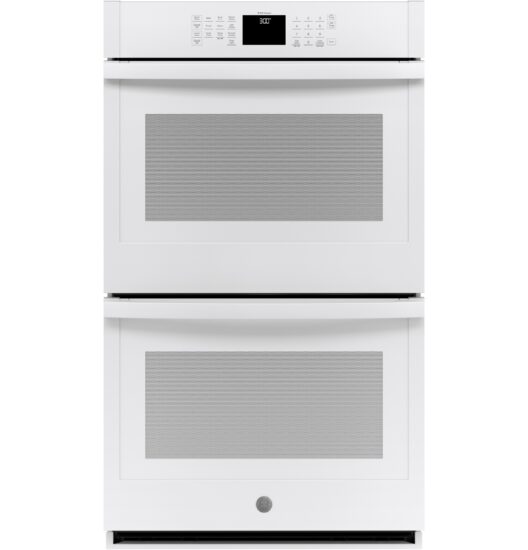

GE Profile JTD3000DN 30 Inch Smart Built In Self Clean Double Wall Oven User Guide

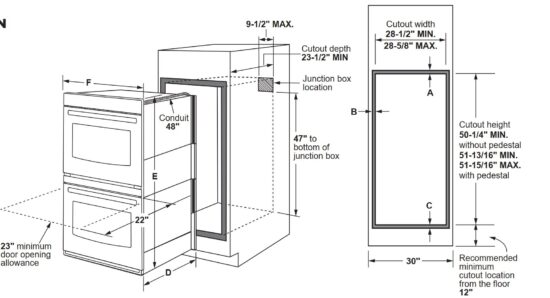

DIMENSIONS AND INSTALLATION INFORMATION
NOTE: Wall coverings, countertops and cabinets surrounding the wall oven must be able to withstand a temperature of up to 200°F (94°C).

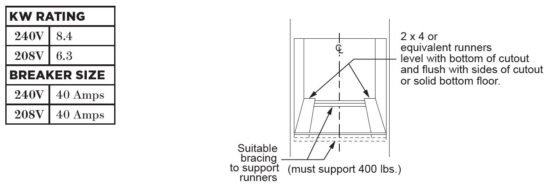

NOTE: If the cabinet in which the wall oven is installed does not have a solid bottom, two braces or runners must be installed to support the weight of the oven. The runners and braces must support up to 400 lbs (181 kg).
NOTE: Door handle protrudes 3″ from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions packed with product for current dimensional data.

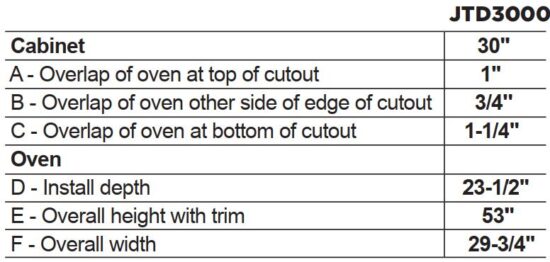

Dimension and installation information are shown in inches.
For answers to your GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
NOTE: 30″ Double electric wall ovens are approved for installation above 27″ and 30″ warming drawers.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions packed with ALL products for current dimensional and combination data.

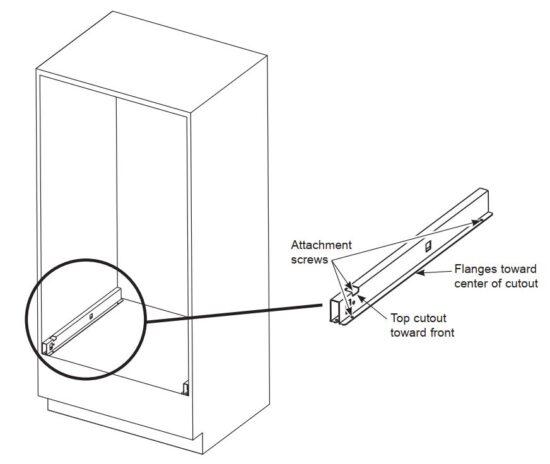

WHEN TO USE THE PEDESTAL RAILS: When replacing an older GE Appliances 30″ double wall oven with a new GE Appliances model. Cutout Height = 51-13/16″ to 51-15/16″. This is our traditional cutout height.
WHEN NOT TO USE THE PEDESTAL RAILS:
When replacing a 30″ double wall oven from another manufacturer (ie; Whirlpool) with a new GE Appliances model. Cutout height = 50-1/4″. You will need to verify that the existing cutout matches the 50-1/4″ dimension.
If the new GE Appliances 30″ double wall oven is being installed into new construction (ie; not a replacement), then the recommended installation is to use the pedestal rails.

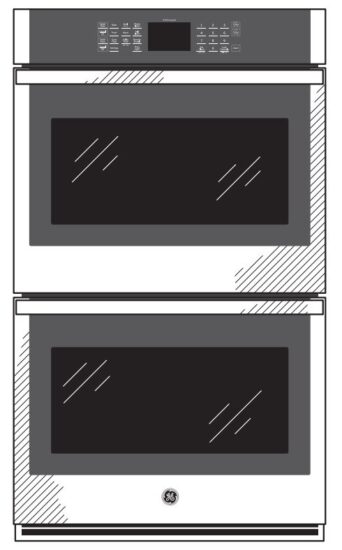

FEATURES AND BENEFITS
- Never-scrub, heavy-duty racks
- Easy-clean controls
- Self-clean with optional Steam Clean
- Anywhere control with remote notifications
- Scan-to-cook
- 10-pass hidden bake element
- 8-pass broil element
- Fit Guarantee
- Model JTD3000DNBB – Black
- Model JTD3000DNWW – White
- Model JTD3000ENES – Slate
- Model JTD3000SNSS – Stainless Steel
FIT GUARANTEE
Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.
Visit geappliances.com for more info
