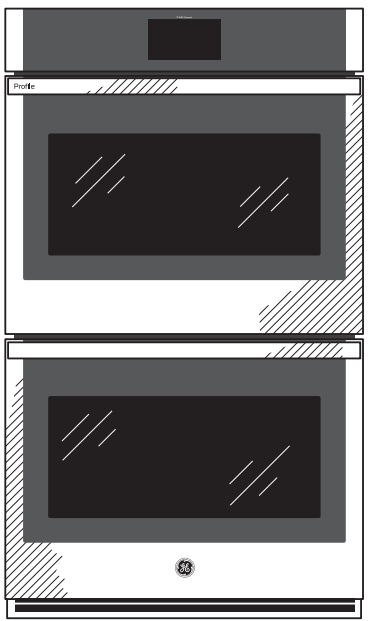

GE APPLIANCES PTD7000SNSS 30 Inch Smart Built-In Electric Double Wall Oven
Contents
FIT GUARANTEE
Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.
Visit geappliances.com for more info

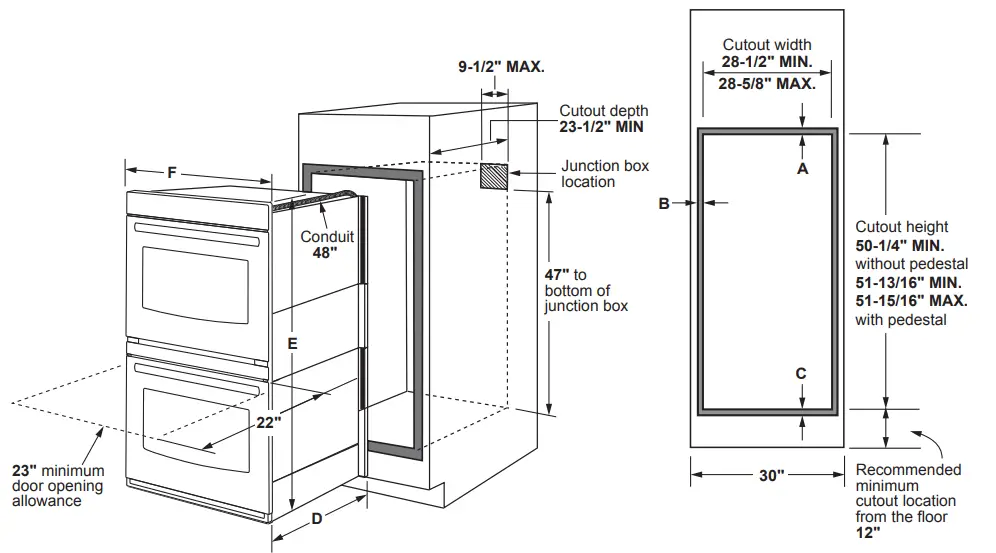

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Wall coverings, countertops and cabinets surrounding the wall oven must be able to withstand a temperature of up to 200°F (94°C).

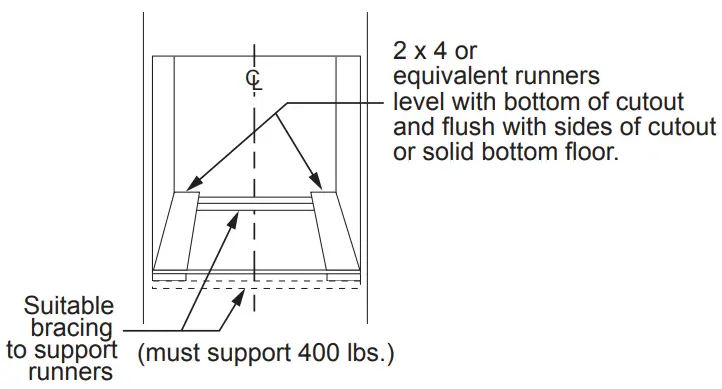

NOTE: If the cabinet in which the wall oven is installed does not have a solid bottom, two braces or runners must be installed to support the weight of the oven. The runners and braces must support up to 400 lbs. (181 kg).
NOTE: Door handle protrudes 3″ from door face.
Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions packed with product for current dimensional data.
| KW RATING | |
| 240V | V 8.7 |
| 208V | 6.5 |
| BREAKER SIZE | |
| 240V | 40 Amps |
| 248V | 40 Amps |
Dimension and installation information are shown in inches.
|
PTD7000 |
|
| Cabinet |
30″ |
| A – Overlap of oven at top of cutout |
1“ |
| B – Overlap of oven other side of edge of cutout |
3/4″ |
| C – Overlap of oven at bottom of cutout |
1-1/4″ |
| Oven | |
| D – Install depth |
23-1/2″ |
| E – Overall height with trim |
53″ |
| F – Overall width |
29-3/4″ |
NOTE: 30″ Double electric wall ovens are approved for installation above 27″ and 30″ warming drawers.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions packed with ALL products for current dimensional and combination data.
WHEN TO USE THE PEDESTAL RAILS: When replacing an older GE Appliances 30″ double wall oven with a new GE Appliances model. Cutout Height = 51-13/16″ to 51-15/16″. This is our traditional cutout height.
WHEN NOT TO USE THE PEDESTAL RAILS: When replacing a 30″ double wall oven from another manufacturer (ie; Whirlpool) with a new GE Appliances model. Cutout height = 50-1/4″. You will need to verify that the existing cutout matches the 50-1/4″ dimension.
If the new GE Appliances 30″ double wall oven is being installed into new construction (ie; not a replacement), then the recommended installation is to use the pedestal rails.
FEATURES AND BENEFITS
No Preheat Air Fry – Integrated hot air frying technology gives you crispy results in your ovenwithout using oil (upper oven).
Precision Cooking Modes*
– Simplify the cooking process with precision cooking modes that automatically track progress, and make time and temperature adjustments (upper oven).
Built-In WiFi, Powered by SmartHQ App – Connect, control and manage your oven from anywhere with your smartphone or tablet
GE Profile Connect + – Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software updates Temperature Probe – A precision temperature probe connects to the oven to ensure your food is properly cooked.
True European Convection with Direct Air – This oven features True European Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation.
Full-Color Display – Easily navigate wall oven settings thanks to a 7″ touchscreen display.
No Preheat – Eliminate the need for preheating and save time with a variety of precisioncooking modes.
Easy-Glide, Never-Scrub Rack – This smooth-gliding oven rack can be left in the oven during the self-clean cycle so you never have to scrub.
Self-Clean with Steam Clean – This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor.
10-pass hidden bake element – Even baking is assured with heat that covers more surface area 10-pass dual-broil element – Large and small dishes brown evenly with two, full-coverage elements
Double oven convection – Cook more dishes at once and achieve perfectly even results with convection technology in both ovens Fit Guarantee – This oven will fit your existing cut-out, or GE Appliances will help pay for modifications up to $300.
Model PTD7000FNDS – Black Slate
Model PTD7000BNTS – Black Stainless
Model PTD7000SNSS – Stainless Steel
*Available once connected to WiFi.
