GE APPLIANCES PLU621RTSS 21 Inch RV Range Top Kitchen

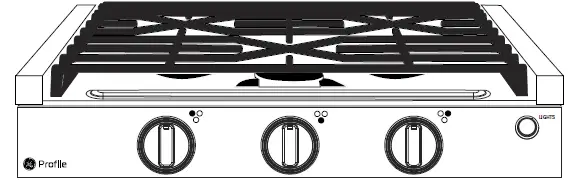

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: This appliances has been approved for 2″ spacing to the rear of the cooktop. However, a 2″ minimum spacing to each side is required for surfaces less than 18″ above the cooktop.
*For overhead cabinets depths exceeding 13″, refer to NFPA 1192 Table 5.6.6.5 for hood requirements.
| NOMINAL VOLTAGE |
| 12 VDC |
| OPERATING RANGE |
| 10.5 VDC – 15.5 VDC |
| FUSE (MAX) |
| 15 AMP |
| POSITION | BURNER RATING BTU/HR>) |
| Rear Left | 6,500 |
| Rear Right | 6,500 |
| Center | 8,000 |
FEATURES AND BENEFITS
- 21″ Rangetop – Discover how this 21″ RV Rangetop fits perfectly into your camper for easy on-the-go cooking
- 12V DC Voltage Rating – Conveniently use your 12V DC Rangetop with your RV’s 12 volt system for power thanks to this hardwired range top
- Spark Ignition System – Easily light the burners with push-to-turn knobs that start the flow of propane and create the spark, just like the knobs on a household gas range
- White Backlit Range Knobs – White backlit rangetop knobs can conveniently be turned on and off for easy visibility any time of day
- RV Rangetop with Cast Metal Knobs – The heavy cast metal knobs offer ultimate durability with high end fit, feel and finish of stainless steel
- Edge-to-Edge Grates – Easily move cookware on this seamless surface cooktop with continuous black matte grates
- Three RV Burners – The three-burner RV rangetop has an 8,000-BTU burner in the front and two 6,500-BTU burners in the back, offering plenty of heating power and space to cook multiple dishes at once
- Liquid Propane Fuel – Fully contain liquid propane in your RV for easy mobile cooking on your propane gas rangetop
- Sealed Cooktop Burners – Sealed cooktop burners contain cooking spills so cleanup is quick and easy
- Secure, Removable RV Rangetop Grates – Rubber feet keep the RV Rangetop grates fixed in place and eliminate noise, but each grate is easily removable for quick cleaning

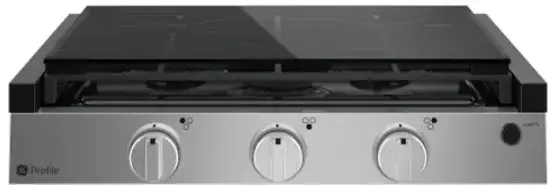

- RV Cooktop Cover (Sold Separately) – The glass rangetop cover has rubber feet on the bottom to fit perfectly and silently on the grates. Use it as a cutting board or for extra countertop space while cooking
- Model PLU621RTSS – Stainless Steel
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center®
Service, 800.626.2000.
