GAS AUDIO POWER MAX PT2-388 Hardcore Car Audio
Product Information
The product is a speaker designed for high volume and high pressure audio playback. It is important to follow the safety instructions and guidelines provided in the user manual to ensure safe usage and optimal performance.
Safety Precautions:
- Do not expose the speaker’s wiring to excessive dampness or moisture as it may result in electric failure, shock, or damage to the product.
- If the product has been damaged or does not operate normally, it requires servicing by qualified service personnel only.
- Keep the cables inside the vehicle separate from sharp edges or components that may cause damage. Use recommended cable sizes and high-quality cables and accessories.
- During installation, ensure all connectors are protected and secured. Do not drill holes without checking what lies beneath, and do not cut anything without ensuring important components are not at risk of being damaged.
- If you need assistance, ask a friend or contact your local GAS AUDIO POWER dealer/installer.
- Use common sense, respect high pressure levels and volume, and follow local laws and regulations to prevent injury to yourself or others.
Recommended Settings:
To achieve the best performance from the speaker, it is recommended to use a highpass filter with at least a 12 dB slope. The recommended crossover setting for model PT2-384 is HPF@ 5000Hz (12dB/Oct).
Product Usage Instructions
Unpacking:

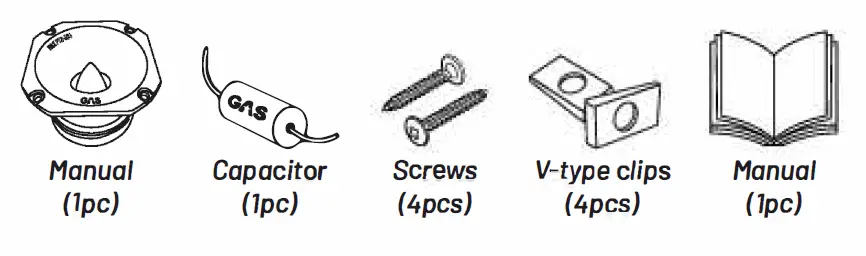

When unpacking your new MAX product, ensure that the following items are included in the packaging:
- Manual (1pc)
- Capacitor (1pc)
- Screws (4pcs)
- V-type clips (4pcs)
Dimensions:
The dimensions of the product are as follows:
- Length: 102 cm
- Width: 75 cm
- Height: 91 cm
SPECIFICATIONS
Below you’ll find the specifications that has been checked and tested in our workshop, The specified sensitivity isn’t directly connected with the sound pressure in the vehicle, and shouldn’t be used as the sole indicator for comparison with other subwoofers.
| MAX PT2-J84 | |
| Component | SPL tweeter |
| Tweeter size | 1.5″(38mm) |
| Nominal impedance | 40hm |
| Power RMS/ Power MAX | 70W/140W |
| Freq. response | 2000-30000Hz |
| Sensitivity | 109dB |
| Voice coil | 1.5″CCAW |
| Cone | Macromolecule composite diaphragm |
| Housing | Aluminum |
| Shorting ring | Yes, copper |
| Magnet | HO ferrite |
| Capacitor | 3.3uF MKT 250V |
| Terminal | CD crosshead |
SAFETY
PLAY LOUD AND SAFE.
Read through this information, follow the instructions and save the manual for future usage and reference.
Do not expose the wiring ta your new speaker ta excessive damp are moisture. lf the wiring is exposed it might result in electric failure, shock are damage ta the product. Servicing is required when the product has been damaged in any way and/are doesn’t operate normally. Refer all servicing ta qualified service personnel only.
Keep the cables inside the vehicle separate from sharp edges are components that may be affected are take damage. Follow the recommended cable sizes and always use high quality cables and accessories. Even if you’re eager ta put the speaker ta use – take no shortcuts when installing the cables, make sure that all connectors are protected and secured.
Da not drill any hales without checking what lies beneath, and don’t cut anything without making sure that an important components risk being damaged.
There is a first time for Everything, if you need help – ask a friend ar contact your local GAS AUD O POWER dealer/installer.
We want you ta experience your products ta the MAX, but we don’t want you ta injure yourself Or others. Use comman sense, respect high pressure levels & volume, follow your local laws and regulations.
Ta get the best performance out of your new speaker we strong ly suggest to use a highpass filter with at least 12 dB slope.
- Recommended cross over: HPF@ 5000Hz (12dB/Oct) for PT2-384
UNPACKING
Unboxing your new MAX product is an experience, make sure that the tweeters and all the accessories are included in the packaging:
DIMENSIONS
HOW TO INSTALL TWEETER
Before installing your brand new tweeter, make sure that you have everything you need. Have the right tools ready, and make sure that you have the necessary knowledge/skill to perform the installation properly. Preparation and knowledge is crucial!
Make sure to look through the recommended wiring schematics below. Take note of the impedance stability of your amplifier. Don’t be afraid to consult your local GAS AUDIO POWER dealer/installer if you have any questions.
FEATURES
In Sweden, we have the expression ·lagom· for when things are in a moderate amount. In this aspect, the MAX PT2 tweeters are as far from Swedish as it can be! They were made to blow everyone’s mind and give the true next-level MAX experience.
WELCOME TO THE NEXT LEVEL
This beast of a tweeter will give you all the performance you’ll need. We’ve combined a diaphragm made of Macromolecule Composite (MMC) material with a copper shorting ring for ultra-low distortion.
MORE THAN JUST A HUGE TWEETER
Experience every part of the tweeter spectrum all the way to – and beyond – 20.000 Hz. It’s a truly exciting tweeter with a dynamic and crisp sound that delivers loads of details.
A NEW LEVEL OF SPL
You’ll want to dial that volume knob beyond 11. Going berserk demands two things: tough materials and a cool design. The horn is made of aluminum with black industrial sand paint to make it look as good as it plays.
WE’VE ADDED SOME EXTRAS
Take care of the things you love, so we’ve included a 6d8 passive crossover with a 3.3uF 250V MKT capacitor to protect your new favorite tweeter. The S2 terminal lets you connect the speaker cables with flat pin connectors or fork terminals.
SAFETY
This product is covered by warranty, depending on the conditions in the country where it’s sold. If the speakers are returned for service, please include the original dated receipt(or a copy)with the product. Make sure that the speakers are packaged properly and secured, preferably in its original packaging.
The crossed-out wheelie bin symbol means that the product, literature and packaging included must be taken to separate collection at the end of their working life. Don’t dispose of these products as unsorted municipal waste: take them for recycling. For info on your nearest recycling point, check with your local waste authority.
This product has been granted with the CE certification mark to show that the product follows the health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).
GAS Audio Power products comply with the relevant pro Visions of the Ro HS Directive for the European Union. In common with all Electrical and Electronic Equipment (EEE) the product shouldn’t be disposed of as household waste. Alternative arrangements may apply in other jurisdictions.
GAS Audio Power is a global partner of the European Mobile Media Association, an organization that focus on promoting the custom made mobile media installations to consumers.
THANKS FOR JOINING GAS AUDIO POWER!
GAS
AUDIO POWER
GAS AUDIO POWER and SHAKY are registered trademarks by Winn Scandinavia AB and is protected by relevant laws and jurisdictions such as Copyright and Trademark laws.
Winn Scandinavia AB I Elementviigen 15, 70227 Orebro, Sweden www.winnscandinavia.com
Winn Scandinavia AB reserves for possible typos, factual or numeric errors that may have been printed on any products, package designs ,user manuals and/or other included accessories.
