FuturaSun FU 430 M Silk Rhino Solar Panel Owner’s Manual
Contents
KEY BENEFITS AND FEATURES
Power from 420 to 430 Watt
High Hail resistance, up to 45 mm ice balls diameter at 30 m/s
High Snow Load resistance thanks to 2 extra aluminum bars
108 M10 n-type half-cut cells
Increased glass thickness
1722 x 1134 x 30 mm
Performance guarantee
- 25-years performance warranty with max power decrease from 2nd year 0.4%/year
- 99% at the end of first year
- 92% at the end of 20th year
- 89% at the end of 25th year
Product guarantees
- 15-year product warranty
- Third-party product liability insurance
- All Futurist’s modules are designed and guaranteed by the Italian headquarters
Mechanical Specifications

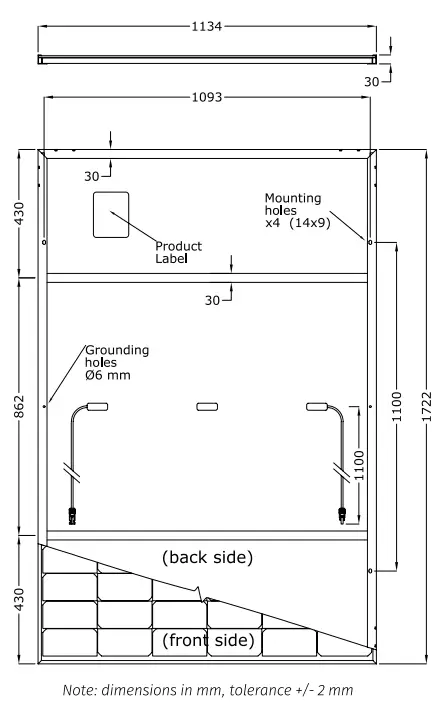

| Dimensions | 1722 x 1134 x 30 mm |
| Weight | 26 kg |
| Glass | High transmission, Low iron, Tempered, ARC, Thickness 4 mm |
| Cells | 108 mono crystalline half-cut MBB n-type cells 182 x 91 mm |
| Frame | Anodized aluminum frame with mounting and drainage holes |
| Junction boxes | Certified according to IEC 62790, IP 68 approved, 3 bypass diodes |
| Cables | Solar cable, length 1100 mm or customizedassembled with 4mm² compatible connectors |
| Backsheet | Composite Multilayer film – white |
| Maximum reverse current (Ir) | 25 A |
| Maximum system voltage | 1000 V (1500 V on request) |
| Mechanical load (snow) | Design load: 3600 Pa, (5400 Pa including safety factor 1.5) |
| Mechanical load (wind) | Design load: 1600 Pa, (2400 Pa including safety factor 1.5) |
Electrical data – STC* FU 420 M FU 425 M FU 430 M
| Sorting tolerance | W | 0/+5 | ||
| Module power (Pmax) | V | 420 | 425 | 430 |
| Open circuit voltage (Voc) | A | 38.06 | 38.25 | 38.44 |
| Short circuit current (Isc) | V | 14.09 | 14.17 | 14.25 |
| Maximum power voltage (Vmpp) | A | 31.49 | 31.67 | 31.86 |
| Maximum power current (Impp) | % | 13.34 | 13.42 | 13.5 |
| Module efficiency | % | 21.5 | 21.8 | 22 |
Electrical data – NOCT** FU 420 M FU 425 M FU 430 M
| Module power (Pmax) | W | 316 | 320 | 323 |
| Open circuit voltage (Voc) | V | 36.18 | 36.36 | 36.54 |
| Short circuit current (Isc) | A | 11.38 | 11.44 | 11.51 |
| Maximum power voltage (Vmpp) | V | 29.32 | 29.48 | 29.61 |
| Maximum power current (Impp) | A | 10.77 | 10.84 | 10.91 |
Temperature ratings
| Temperature coefficient Isc | %/°C | 0.045 |
| Temperature coefficient Voc | %/°C | -0.25 |
| Temperature coefficient Pmax | %/°C | -0.29 |
| NOCT** | °C | 45 ± 2 |
| Operating temperature | °C | from -40 to +85 |
Certifications
| Factory | ISO 9001 – 14001 – 45001 |
| Product | IEC EN 61730, IEC EN 61215, Fire Class C |
Packaging
| Quantity / Pallet | 36 pcs |
| Container 40’ HC | 936 pcs / 26 pallets |
The information included in this module datasheet is subject to change without notice and is provided for informational purposes only. No contractual rights are established or should be inferred because user relied on the information contained in this module datasheet. Please refer to the appropriate module user guide and module product specification document for more detailed technical information regarding module performance, installation, and use.
- Standard Test Conditions STC: 1000 W/m2 – AM 1.5 – 25 °C – tolerance: Pmax (±3%). Voc (±4%). Isc (±5%)
- Nominal Operating Cell Temperature NOCT: 800 W/m2 – T=45 °C – AM 1.5
- Riva del Pasubio 14, 35013 Cittadella, PD, Italy
- +39 049 5979802 | [email protected] | futurasun.com
- For detailed information, please refer to the installation manual
