Room Air Conditioner
(DY)16120300A20672 (July 2019)
Frigidaire.com USA 1-800-944-9044 Frigidaire.ca Canada 1-800-265-8352
INTRODUCTION
Welcome to our family
Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together.
This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn’t seem right, the troubleshooting section will help you with common issues.
FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at www.frigidaire.com.
We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you.
Let’s make it official! Be sure to register your product.
Keep your product info here so it’s easy to find.
Model Number _______________________
Serial Number ________________________
Purchase Date ________________________
IMPORTANT SAFETY INSTRUCTIONS
 WARNING |
| For Your Safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings. |
| WARNING |
| Prevent Accidents To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precautions, including the following:
|
| WARNING |
| Electrical Information The complete electrical rating of your new room air conditioner is stated on the serial plate. Refer to the rating when checking the electrical requirements.
|
| WARNING |
| Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.
Do not, under any circumstances, cut, remove or bypass the grounding prong. |
| NOTE |
| The power supply cord with this air conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section ‘Operation of Current Device’ for details. In the event that the power supply cord is damaged, it cannot be repaired. It must be replaced with a cord from the product manufacturer. |
| SAFETY PRECAUTIONS |
DANGER! Avoid Serious Injury or Death
|
| SAFETY PRECAUTIONS |
CAUTION! Avoid Injury or damage to the unit or other property
|
| WARNING |
FOR FLAMMABLE REFRIGERANT
|
| CAUTION |
|
READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.
Unit must be upright for one hour prior to operating.
Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do the following:
- Plug in the Air Conditioner.
- The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will notice a click as the RESET button pops out.
- Press the RESET button. Again you will notice a click as the button engages.
- The power supply cord is now supplying electricity to the unit. (This is also indicated by a light on the plug head).
Plug in & press RESET
| NOTE |
|
NORMAL SOUNDS
Explanation of symbols displayed on the unit
 |
WARNING | This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. |
| CAUTION | This symbol shows that the operation manual should be read carefully. | |
 |
CAUTION | This symbol shows that a service personnel should be handling this equipment with reference to the installation manual. |
 |
CAUTION | This symbol shows that information is available such as the operating manual or installation manual. |
Normal Sounds
(1) Gurgle/Hiss
“Gurgling or hissing” noise may be heard due to refrigerant passing through evaporator during normal operation.
(2) Sound of Rushing Air
At the front of the unit, you may hear the sound of rushing air being moved by the fan.
(3) High pitched Chatter
Today’s high efficiency compressors may have a high pitched chatter during the cooling cycle.
(4) Vibration
Unit may vibrate and make noise because of poor wall or window construction or incorrect installation.
(5) Pinging or Swishing
Droplets of water hitting condenser during normal operation may cause “pinging or swishing” sounds.
Note: Don’t try to drill any holes on the base pan to eliminate the normal sounds, otherwise it will void the warranty.
AIR CONDITIONER FEATURES
Air Conditioner Features

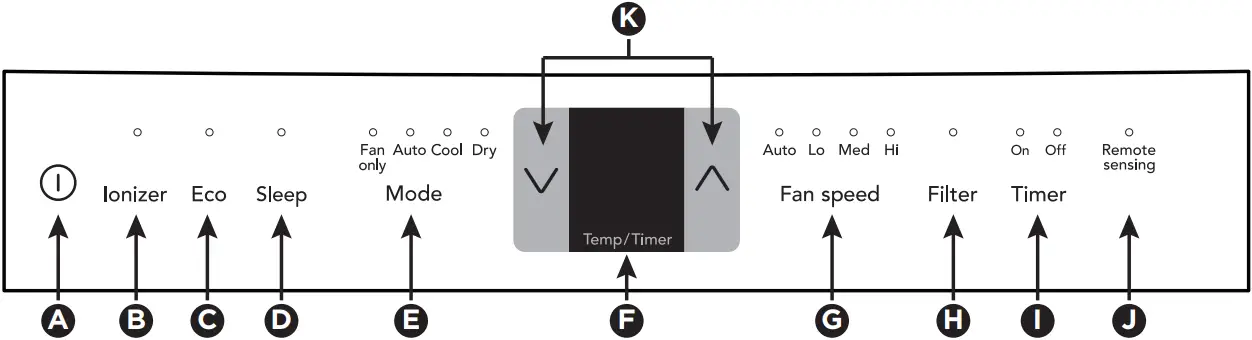

ELECTRONIC CONTROL
Before you begin, thoroughly familiarize yourself with the control panel and remote control and all its functions (as shown below). The unit can be controlled by the touch pad alone, with the remote control.
|
A |
Turns Unit On Or Off |
|
B |
Ionizer Feature |
|
C |
Eco Feature |
|
D |
Sleep Feature |
|
E |
Sets Mode |
|
F |
Displays Temperature/Time |
|
G |
Sets Fan Speed |
|
H |
Check Filter Reset Button |
|
I |
Activates Timer |
|
J |
Remote Temp Sensing Indicator (Some Models) |
|
K |
Adjusts Temperature Or Time |
REMOTE CONTROL
STANDARD REMOTE WITH DISPLAY & REMOTE SENSING BUTTON
Light Feature:
The display and all LED indicators on the control panel of the unit can be turned off by pressing the “Light” button on the remote control. If any other button of the control panel and remote control is pressed after that, the unit will beep to indicate it works as the corresponding direction of pressing specific button, and the display and LED indicators will illuminate accordingly, but they will turn off again in 5 seconds if no further operation.
Press the “Light” button again or unplug the unit to cancel this setting.
Battery Size: AAA
Warning: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Caution for ingestion. Keep out of the reach of children.
OPERATING INSTRUCTIONS
| NOTE |
| The following instructions represent the touch pad. The same instructions can be used for the remote control. |
TO TURN UNIT ON:
DO THIS:
PRESS ON/OFF BUTTON
YOU WILL SEE:
NOTE: The unit will run in Cool mode with Eco feature and Auto fan speed setting when used for the first time. With the Eco feature, when the room temperature is below the set temperature, the fan will continue to run for 3 minutes after the compressor shuts off. The fan then cycles on for 2 minutes at 10 minute intervals until the room temperature is above the set temperature, at which time the compressor turns back on. Eco feature can be activated or deactivated by pressing Eco button, but it is invalid in fan only mode.
AUTO FEATURE:
DO THIS:
PRESS MODE BUTTON
CHOOSE AUTO
YOU WILL SEE:
Note: This mode is a fixed combination of Cool mode and Auto fan speed setting. In this mode, the fan speed can not be selected manually.
COOL FEATURE:
DO THIS:
PRESS MODE BUTTON
CHOOSE COOL
YOU WILL SEE:
Note: In this mode, the fan remains on all the time with the compressor cycling on and off when room temperature is reached.

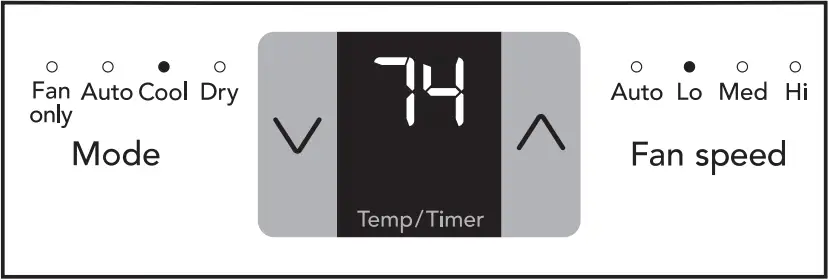

TO CHANGE TEMPERATURE SETTING:
DO THIS:
PRESS ∧ TO RAISE
PRESS ∨ TO LOWER
YOU WILL SEE:
Note: Tap or hold either up (∧) or down (∨) button until the desired temperature is seen on the display. This temperature will be automatically maintained anywhere between 62 °F (17 °C) and 86 °F (30 °C). If you want the display to read the actual room temperature. See “To Operate on Fan Only” section.
TO ADJUST FAN SPEEDS:
DO THIS:
PRESS TO SELECT
YOU WILL SEE:
Note: The fan speed can be selected among four settings: Auto, Lo(Low), Med(Medium) and Hi(High), unless the unit runs in “Auto” or “Dry” mode, or the Sleep feature is activated.
TO USE AUTO FAN FEATURE:
DO THIS:
PRESS FAN BUTTON,
CHOOSE AUTO
YOU WILL SEE:
Note: Fan starts at Low Speed and adjusts to a proper speed according to the room temperature dictates. For example, if the room doesn’t get too warm, it will stay at the slowest speed. If the room temperature rises quickly, such as a door being opened, it will automatically go to the highest speed. The fan speeds will re-adjust back to the slowest speed as the room returns to the original set temperature.
TO OPERATE ON FAN ONLY:
DO THIS:
PRESS MODE BUTTON
CHOOSE FAN ONLY
YOU WILL SEE:
Note: Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air on some models. (Remember to open the vent during this function, but keep it closed during cooling for maximum cooling efficiency.) You can choose any fan speed you prefer. During this function, the display will show the actual room temperature, not the set temperature as in the cooling mode.
DRY MODE:
DO THIS:
PRESS MODE BUTTON
CHOOSE DRY
YOU WILL SEE:
Note: In this mode, the air conditioner will work like a dehumidifier, but it will cool the room down meanwhile. The temperature can be adjusted between 62 °F (17 °C) and 86 °F (30 °C) and fan speed will be held at “Lo”.
SLEEP FEATURE:
DO THIS:
PRESS SLEEP BUTTON
YOU WILL SEE:
Note: In this mode, the unit will select Auto fan speed automatically, and the selected temperature will increase by 2 °F 30 minutes after the mode is selected. The temperature will then increase by another 2 °F after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the “Sleep” mode and the unit will continue to operate as originally programmed. The “Sleep” mode program can be cancelled at any time during operation by again pressing the “Sleep”, “Fan speed” or “Mode” button.
CHECK FILTER FEATURE, YOU WILL SEE:
Note: This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more efficient operation. The LED (light) will illuminate after 250 hours of operation. To reset after cleaning the filter, press the “Filter Reset” button and the light will go off.
DO THIS:
PRESS FILTER
RESET BUTTON
TIMER: DELAY STOP/START FEATURE:
- THEN DO THIS:
PRESS UP/DOWN BUTTONS - FIRST DO THIS:
PRESS TIMER BUTTON
YOU WILL SEE HOW MUCH TIME IS CHOSEN:
To delay stop(or start), press the Timer button when the unit is power-on(or power-off), then the “timer off” indicator(or “timer on” indicator) will illuminate. Then adjust timer setting, tap or hold the UP arrow (∧) or the DOWN arrow (∨) to change delay timer at 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The setting will be confirmed automatically in 5 seconds, then the control will count down the time(8, 7.5, 7, etc.) left, and all other settings will remain the same as they were before the timer setting is confirmed, until stop(or start).
Setting combination of “delay stop
delay start” or “delay start
delay stop” is workable. Both “timer off” indicator and “timer on” indicator will illuminate then. The timer setting can be canceled by either pressing and holding the timer button for 2 seconds, or pressing the power on/off button at any time to turn off the unit directly.
REMOTE SENSING FEATURE
(on some models):
This feature can be activated from the remote control ONLY, the unit must be in a cooling mode. To activate the remote sensing feature, point the remote control towards the unit and press the Remote Sensing button. Next, use the “∧ ∨” buttons to set the desired temperature at the remote. (Note that the set temperature will only be displayed on the unit itself ). The LIGHT on the unit control will illuminate to indicate it receives the signal. The LIGHT on the remote control will pulse each time it sends a signal. lt will periodically send this signal until the feature is deactivated by pressing the remote sensing button again. lf the unit does not receive the remote sensing signal during any 7 minute interval, the Remote Sensing feature will halt until the unit receives signal from the remote control again. The display on the remote control indicates the temperature at the remote ONLY.
- DO THIS:
PRESS REMOTE SENSING BUTTON
YOU WILL SEE:
Remote Sensing indicator
NOTE: Unit display shows the set temperature. Remote display is actual temperature.
The Remote Sensing function can be terminated either by pressing the Remote Sensing button again or the main ON/OFF button on the unit.
TO ACTIVATE IONIZER:
DO THIS:
PRESS IONIZER BUTTON
YOU WILL SEE:
NOTE: The unit is equipped with an internal air cleaning device called an ionizer. By activating this function, the ionizer will generate ions into the air, attracting and removing impurities from the air. This provides cleaner, healthier air to breathe.
TO CHANGE TEMPERATURE DISPLAY:
DO THIS:
PRESS AND HOLD THE UP/DOWN
BUTTONS SIMULTANEOUSLY FOR 3 SECONDS
YOU WILL SEE:
Note: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius.
TO TURN UNIT OFF:
DO THIS:
PRESS ON/OFF BUTTON
YOU WILL SEE:
FAULT CODES:
If the display reads “AS” or “ES” , a sensor has failed. Contact your Authorized Frigidaire Service Center.
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.
| NOTE |
| The “Cool” circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this time. |
- There is a 2-Second delay for the compressor shutting down when selecting FAN ONLY. This is to cover the possibility of having to roll through to select another mode.
- The control will maintain the set temperature within 2 degrees Fahrenheit, between 60°F and 90°F degrees.
- After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.
- The unit should be operated in a temperature range of indoor side 60°F – 90°F (16°C – 32°C), outdoor side 64°F – 109°F (18°C – 43°C). Performance may be reduced outside of these operating temperatures.
Air Directional Louvers
Air directional louvers control air flow direction. Your air conditioner has the louver type described below.
Slider Type
The louvers will allow you to direct the air flow Up or Down and Left or Right throughout the room as needed. Drag the adjuster tablet until the desired Left/Right direction is obtained. Pivot horizontal louvers until the desired Up/Down direction is obtained.
ADJUSTER TABLET
(6-WAY)
CARE AND CLEANING & ENERGY SAVING IDEAS
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards.
Air Filter Cleaning
The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils.
- Push the vent handle to the Vent Closed position(where applicable).
- Open the front panel.
- Grasp the filter by the center and pull up and out.
- Wash the filter using liquid dishwashing detergent and warm water. Rinse filter thoroughly. Gently shake excess water from the filter. Be sure filter is thoroughly dry before replacing.
- Or instead of washing, you may vacuum the filter clean.
NOTE: When replacing the air filter after cleaning, make sure the tabs on the air filter are on the upper part of filter, and placed outward as shown in the drawing on the left side.
Air Filter
- Tab
Cabinet Cleaning
- Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry.
- Never use harsh cleaners, wax or polish on the cabinet front.
- Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the air conditioner.
- Plug in air conditioner.
Winter Storage
If you plan to store the air conditioner during the winter, remove it carefully from the window according to the installation instructions. Cover it with plastic or return it to the original carton.
Energy Saving Ideas
- Do not block air flow inside with blinds, curtains or furniture; or outside with shrubs, enclosures, or other buildings.
- The capacity of the room air conditioner must fit the room size for efficient and satisfactory operation.
- Install the room air conditioner on the shady side of your home. A window that faces north is best because it is shaded most of the day.
- Close the fireplace damper, floor and wall registers so cool air does not escape up the chimney and into the duct work.
- Keep blinds and drapes in other windows closed during the sunniest part of the day.
- Clean the air filter as recommended in the section “Care and Cleaning”.
- Proper insulation and weather stripping in your home will help keep warm air out and cool air in.
- External house shading with trees, plants or awnings will help reduce the air conditioner’s work load.
- Operate heat producing appliances such as ranges, washers, dryers and dishwashers during the coolest part of the day.
BEFORE YOU CALL
Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.
| OCCURRENCE | SOLUTION |
| Air conditioner will not operate. |
|
| Air from unit does not feel cold enough. |
|
| Air conditioner cooling, but room is too warm – ice forming on cooling coil behind decorative front |
|
| Air conditioner cooling, but room is too warm – NO ice forming on cooling coil behind decorative front. |
|
| Air conditioner turns on and off rapidly. |
|
| Noise when unit is cooling. |
|
| Water dripping INSIDE when unit is cooling. |
|
| Water dripping OUTSIDE when unit is cooling. |
|
| Remote Sensing Deactivating Prematurely (some models). |
|
| Room too cold. |
|
If These Solutions Fail, Call 1-800-944-9044(US)/1-800-265-8352(Canada) For Frigidaire Service.
MAJOR APPLIANCE LIMITED WARRANTY
Your appliance is covered by a limited one-year warranty for functional repairs only. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions. After one year from your original date of purchase, the consumer will be responsible for diagnostic, labor and parts costs as well as any removal, transportation and reinstallation expenses which are incurred during service on components.
Exclusions
This warranty does not cover the following:
- Products with original serial numbers that have been removed, altered or cannot be readily determined.
- Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
- Rust on the interior or exterior of the unit.
- Products purchased “as-is” are not covered by this warranty.
- Food loss due to any refrigerator or freezer failures.
- Products used in a commercial setting.
- Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.
- Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
- Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.
- Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.
- Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
- Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.
- Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.
This limited warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
