fri-jado TDR 5 M Turbo Deli Rotisserie
Product Information
Specifications
- Brand: Fri-Jado
- Product Type: Manual Rotisseries
- Model: TDR M
- Features: Space-saving design, efficient heat transfer, ventless hood option
- Operation: 2-pane glass doors, safety stop, convection cooking
- Safety: Overheat protection, IP protection, pass-through operation
- Cooking Modes: Convection, Preheat
Product Usage Instructions
- Ensure the rotisserie is placed on a stable and level surface.
- If applicable, install the ventless hood for efficient filtration.
- Connect the rotisserie to a power source following the manufacturer’s guidelines.
- Set the desired time and temperature using the easy-to-use interface.
- Load the rotisserie with your choice of meats or vegetables.
- Start the rotisserie to begin the cooking process.
Maintenance
- Regular maintenance is crucial to ensure optimal performance.
- Follow the manufacturer’s guidelines for cleaning and servicing the rotisserie.
FAQ
- Q: Can I use the rotisserie without the ventless hood?
- A: Yes, the ventless hood is optional for efficient filtration but not mandatory for operation.
- Q: How do I ensure even cooking?
- A: Utilize the convection cooking mode and ensure proper preheating for consistent results.
Ultimate front cooking appliance
Looking for a rotisserie that not only delivers perfect cooking results every time but also has low energy consumption technologies? Look no further!
TDR M
Meet the Manual Turbo Deli Rotisserie, the ultimate front-cooking appliance! Our rotisseries produce perfectly cooked meats and vegetables every time. With the easy-to-use interface, even unskilled staff can cook everything, from succulent chicken and juicy pork to crispy veggies and more.
As the industry’s fastest original rotisserie, it’s here to elevate your culinary experience. With the TDR, we use fresh air to cook a rotisserie chicken just the way it’s meant to be: irresistibly crispy, delicious, and maintaining its alluring appearance for hours on end!
Efficient heat transfer
The TDR pushes the air throughout the cavity, resulting in
an efficient heat transfer on the products. It consumes less electricity during the preparation process. Add to this the improved cooking time and you have the most energy-efficient rotisserie with a high output.

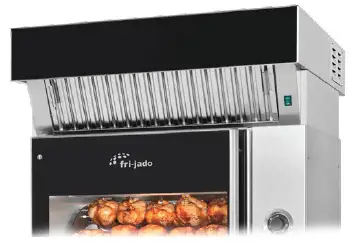

Ventless Hood
The optional ventless hood offers efficient simplicity. No need for costly central ventilation; save energy and maintains the store climate. Its advanced filtration process eliminates grease, odour, and smoke, ensuring effective performance. The ventless hood is not available for the TG-4.
Features & Benefits
| Operation | |
|
2-pane glass doors |
Insulation and energy saving, keeping the heat inside. Safe to touch on the outside for the operator. No gaskets that need frequent replacement |
|
Right door hinging (optional) |
The standard configuration has controls at the right side and a left-hinged door. Left controls with a right-hinged door at the operator side is a factory option |
|
Food quality |
High-speed convection for even cooking and radiant heat for uniform browning |
|
Door close function |
The door can be closed without manual latching |
| Safety | |
|
Safety Stop |
The fan and rotor pauses automatically when opening the door during cooking |
|
Overheat protection |
Temperature limiter for convection heat |
|
IP Protection |
Protecting class IP20 |
|
Pass through operation |
The 2-door configuration avoids cross-contamination by separating the raw product area from the cooked product area. Also ideal for front-cooking, allowing a better customer view off products |
Cooking modes & functions
|
Convection |
Temperature range 50 °C – 250 °C. |
|
Preheat |
Preheating the rotisserie to be able to cook instantly at the acquired temperature |
Installation & maintenance
|
Installation |
Professional installation by certified technicians recommended by Fri-Jado |
|
Maintenance |
Regular maintenance is recommended according to Fri-Jado’s guidelines by trained service partners |
|
Warranty |
Check our Terms & Conditions online frijado.com/terms-conditions |
Specifications
TDR 5 M
- Art. no. 9299006
Also available as Space Saver – TDR 5 M on a 2 level self-serve heated display.
 Capacity |
|
| Meat fork/ V-spit positions | 5 |
| Basket/Rack positions | 5 |
| Chickens per batch – on meat forks | 20 (1.2kg) |
| Chickens per batch – in baskets | 15 (1.2kg) |
 Dimensions & weight |
|
| Dimensions WxDxH [mm] | 835 x 760 x 910 |
| Shipping dimension WxDxH [mm] | 880 x 940 x 1146 |
| Net weight [kg] | 130 |
| Gross weight [kg] | 160 |
 Power requirements |
|
| Power [kW] | 6.6 |
| Voltage | 3N~ 400/230V |
| Amps [A] | 10 |
| Frequency [Hz] | 50/60 |
| Plug | CEE-form 16 A |
| Lenght of power cable approx. [cm] | 220 |
 Noise emission |
|
| Noise level without hood system [dBA] | <70 |
 IP classification |
|
| IP class | IP20 |
Futher technical information can be found in the installation manual.
Technical drawings
TDR 5 M
- Art. no. 9299006
Space Saver – TDR 5 M + heated display
- Art. no. 9419001 + 9299006 + 9419801 Solid back
- Art. no. 9419000 + 9299006 + 9419801 Rear loading
Features heated display
- TDR 5 M on a 2-level heated self-serve display
- Compact solution – roasting and holding within 1m2
- Solid back (standard)
- Available as rear loading solution – Space Saver Premium
- Double pane glass on both sides; optimal insulation
- Hot Blanket Technology: Energy-efficient combination of hot air recirculation and conduction
- Energy savings up to 50% – Guided hot air does not leak out and keeps colder ambient air outside
- Individual shelf temperature settings with multi-temp
- See rotisserie details
Dimensions & weight heated display
| Dimensions WxDxH [mm] | 900 x 804 x 1080 |
| Shipping dimensions WxDxH [mm] | 980 x 920 x 1310 |
| Net weight [kg] | 133 |
| Gross weight [kg] | 165 |
Power requirements heated display
| Power [kW] | 2.2 (8.8 incl TDR) |
| Voltage | 3N~ 400/230V |
| Frequency [Hz] | 50/60 |
| Plug | CEE-form 16 A |
| Lenght of power cable approx. [cm] | 220 |
| Noise emission heated display |
|
| Noise level food display [dBA] | <55 |
| IP classification heated display |
|
| IP class | IP20 |
Futher technical information can be found in the installation manual. Assembly on site needed (forklift)

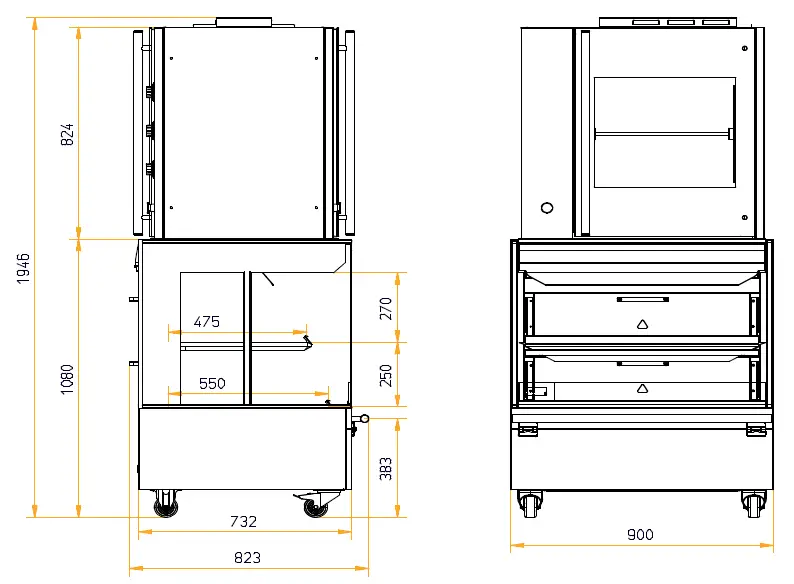

Technical drawings
Space Saver TDR 5 M + heated display
- Art. no. 9419001 + 9299006 + 9419801 Solid back
- Art. no. 9419000 + 9299006 + 9419801 Rear loading
Also available as Rear loading (Premium)
TDR 8 M
- Art. no. 9299200
| Capacity |
|
| Meat fork/ V-spit positions | 8 |
| Basket/Rack positions | 7 |
| Chickens per batch – on meat forks | 40 (1.2kg) |
| Chickens per batch – in baskets | 28 (1.2kg) |
Dimensions & weight
| Dimensions WxDxH [mm] | 995 x 890 x 1065 |
| Shipping dimensions WxDxH [mm] | 1100 x 996 x 1255 |
| Net weight [kg] | 185 |
| Gross weight [kg] | 216 |
Power requirements
| Power [kW] | 10.5 |
| Voltage | 3N~ 400/230V |
| Amps [A] | 15.5 |
| Frequency [Hz] | 50/60 |
| Plug | CEE-form 16 A |
| Lenght of power cable approx. [cm] | 220 |
Noise emission
| Noise level without hood system [dBA] | <70 |
IP classification
| IP class | IP20 |
TDR 8 M
- Art. no. 9299200

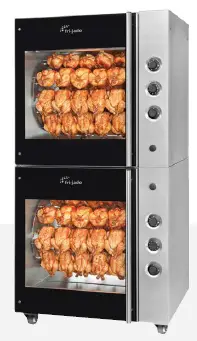

TDR 8 + 8 M
- Art. no. 9299300
| Capacity |
|
| Meat fork/ V-spit positions | 16 |
| Basket/Rack positions | 14 |
| Chickens per batch – on meat forks | 80 (1.2kg) |
| Chickens per batch – in baskets | 56 (1.2kg) |
| Dimensions & weight |
|
| Dimensions WxDxH [mm – incl. swivel castors] | 1040 x 890 x 2100 |
| Shipping dimensions WxDxH [mm] | 1105 x 1045 x 2184 |
| Net weight [kg] | 375 |
| Gross weight [kg] | 435 |
| Power requirements |
|
| Power [kW] | 21 |
| Voltage | 3N~ 400/230V |
| Amps [A] | 31 |
| Frequency [Hz] | 50/60 |
| Plug | CEE-form 32 A |
| Lenght of power cable approx. [cm] | 220 |
| Noise emission |
|
| Noise level without hood system[dBA] | <70 |
| IP classification |
|
| IP class | IP20 |
Futher technical information can be found in the installation manual.

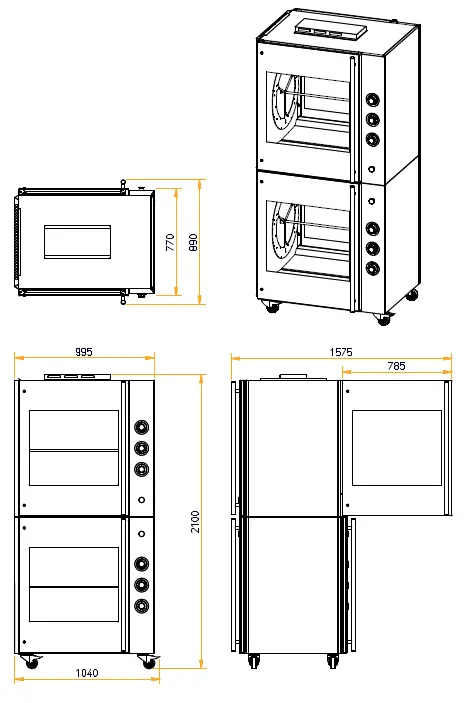

TDR 8 + 8 M
- Art. no. 9299300
TG-4 – Table-top rotisserie
- Art. no. 9049100
Capacity
| Meat fork/ V-spit/Basket positions | 4 |
| Chickens per batch – on meat forks | 16 (1.2kg) |
| Chickens per batch – in baskets | 12 (1.2kg) |
Dimensions & weight
| Dimensions WxDxH [mm] | 830 x 600 x 750 |
| Shipping dimensions WxDxH [mm] | 935 x 690 x 954 |
| Net weight [kg] | 75 |
| Gross weight [kg] | 99 |
| Power requirements |
|
| Power [kW] | 5.2 |
| Voltage | 3N~ 400/230V |
| Amps [A] | 9 |
| Frequency [Hz] | 50/60 |
| Plug | CEE-form 16 A |
| Lenght of power cable approx. [cm] | 220 |
| Noise emission |
|
| Noise level without hood system [dBA] | <70 |
| IP classification |
|
| IP class | IP20 |
Futher technical information can be found in the installation manual.

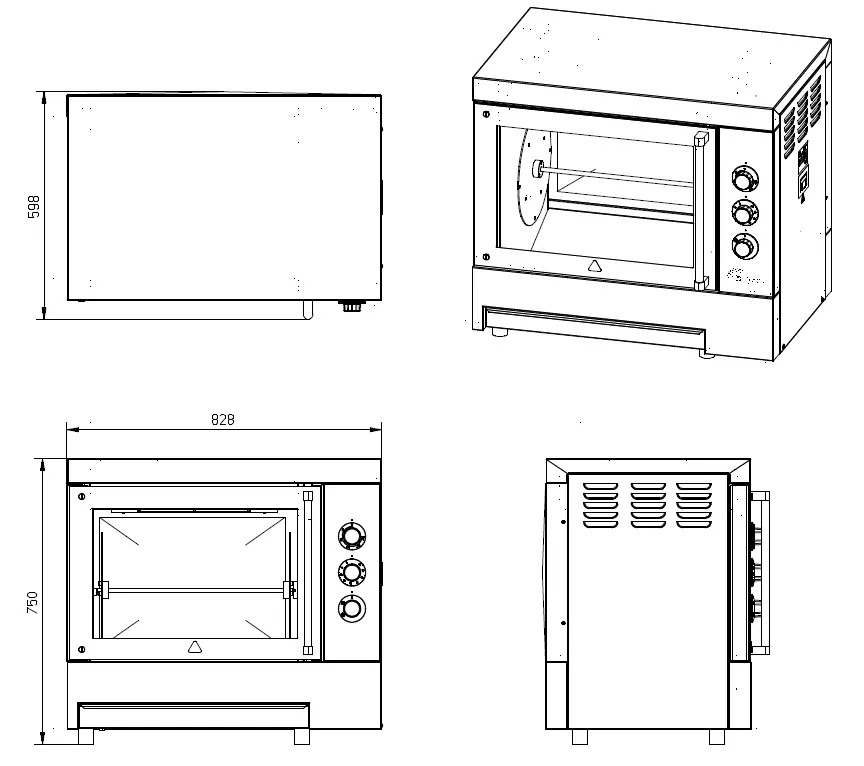

TG-4 – Table-top rotisserie
- Art. no. 9049100

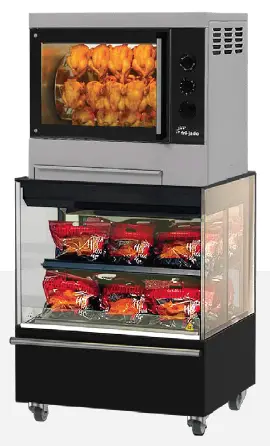

Space Saver – TG-4 + heated display
- Art. no. 9419001 + 9049100 + 9419801 Solid back
Features heated display
- TG-4 on a 2-level heated self-serve display
- Compact solution – roasting and holding within 1m2
- Solid back
- Double pane glass on both sides; optimal insulation
- Hot Blanket Technology: Energy-efficient combination of hot air recirculation and conduction
- Energy savings up to 50% – Guided hot air does not leak out and keeps colder ambient air outside
- Individual shelf temperature settings with multi-temp
- See rotisserie details
Dimensions & weight heated display
| Dimensions WxDxH [mm] | 900 x 804 x 1080 |
| Shipping dimensions WxDxH [mm] | 980 x 920 x 1310 |
| Net weight [kg] | 133 |
| Gross weight [kg] | 165 |
Power requirements heated display
| Power [kW] | 2.2 (7.4 incl TG-4) |
| Voltage | 3N~ 400/230V |
| Frequency [Hz] | 50/60 |
| Plug | CEE-form 16 A |
| Lenght of power cable approx. [cm] | 220 |
| Noise emission heated display |
|
| Noise level food display [dBA] | <55 |
| IP classification heated display |
|
| IP class | IP20 |
Futher technical information can be found in the installation manual. Assembly on site needed (forklift)
Space Saver – TG-4 + heated display
- Art. no. 9419001 + 9049100 + 9419801 Solid back
Ventless Hood TDR M
TDR 5 M
- Art. no. 9298703
| Dimensions & weight |
|
| Dimensions WxDxH [mm] | 835 x 855 x 375 |
| Shipping dimensions WxDxH [mm] | 950 x 1035 x 680 |
| Net weight [kg] | 72 |
| Gross weight [kg] | 85 |
| Power requirements |
|
| Power [kW] | 0.4 |
| Voltage | 1N~ 230V |
| Amps [A] | 1.5/1.7 |
| Frequency [Hz] | 50-60 |
| Plug | Schuko 16 A |
| Lenght of power cable approx. [cm] | 220 |
| Noise emission |
|
| Noise level [dBA] | <70 |
TDR 8 M / TDR 8 + 8 M
- Art. no. 9298701
| Dimensions & weight |
|
| Dimensions WxDxH [mm] | 995 x 970 x 375 |
| Shipping dimensions WxDxH [mm] | 1108 x 1141 x 680 |
| Net weight [kg] | 77 |
| Gross weight [kg] | 97 |
| Power requirements |
|
| Power [kW] | 0.4 |
| Voltage | 1N~ 230V |
| Amps [A] | 1.5/1.7 |
| Frequency [Hz] | 50-60 |
| Plug | Schuko 16 A |
| Lenght of power cable approx. [cm] | 220 |
| Noise emission |
|
| Noise level [dBA] | <70 |
Futher technical information can be found in the installation manual. The ventless hood is not available for the TG-4.

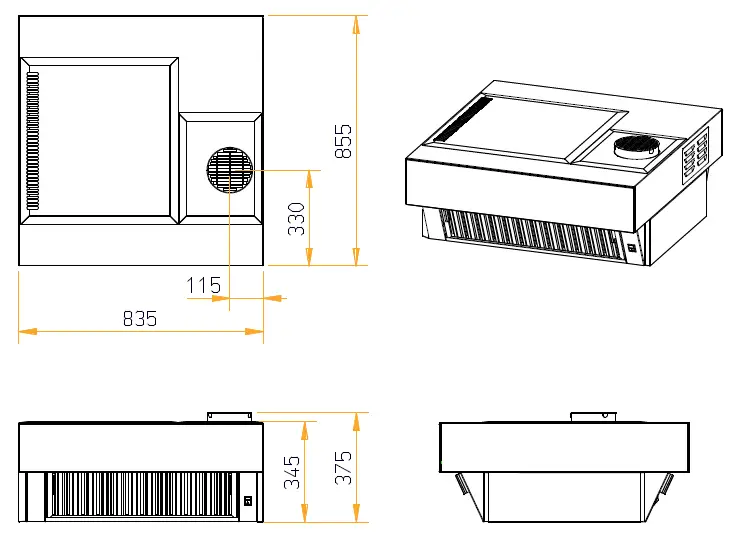

Ventless Hood TDR M
TDR 5 M
- Art. no. 9298703
TDR 8 M / TDR 8 + 8 M
- Art. no. 9298701
Accessories
Manual rotisseries
- Art. no. can be found
- Please note: not all accesories are available for TG-4,
Chicken rack
Designed for easy loading and safe unloading (for whole birds up to 1.2 kg on TDR chicken rack)
Multi purpose basket
For easy loading of poultry, poultry parts, other meat dished (like ribs, meat loaf and others) and fish
Multi purpose basket insert
For dishes to be cooked in their own natural juices, or from products cooked in the same batch. Typically for roasting vegetables and fruit or potato wedges cooked in poultry fat. Additionally, the inserts can serve for baking various products
Butterfly chicken rack
Designed to evenly roast half- or butterfly chicken. Also useful for flat products like ribs, picanha and whole fish
Meat fork
To maximise the capacity of your rotisserie, creating an attractive view on the product being roasted. Most commonly used for poultry and poultry parts

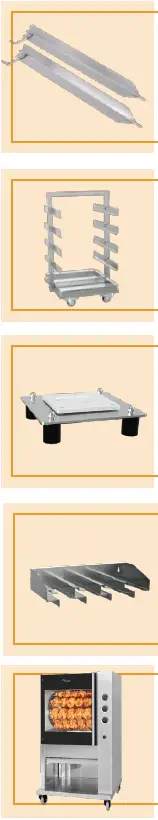

V-spit
Typically used for larger, whole birds. The chicken will turn horizontally, the V-spit will provide the best self-basting results, retaining natural juices
Trolley for V-spits
Designed for a convenient transfer of the poultry during the cooking process
Spitting Assistent V-spit
Designed to help make spitting your poultry a lot easier and safer
Wall rack for V-spits TDR
Designed to keep your V-spits in easy reach and all in one place
Stand on castors
Stand designed to match the TDR M Not compatible with stacked units or TG-4
Article numbers
Manual rotisseries
| TDR 5 M | TDR 8 M + TDR 8 + 8 M | |
| Description | Number | Number |
| Chicken rack (3 chickens) | 9172112 | n/a |
| Chicken rack (4 chickens) | n/a | 9172136 |
| Multi purpose basket | 9010387 | 9172134 |
| Multi purpose basket insert | 9170497 | 9170496 |
| Butterfly chicken rack | 9312089 | 9312090 |
| Meat fork | 9010549 | 9172153 |
| V-spit | 9112472 | 9112480 |
| Trolley for V-spits | n/a | 9170064 |
| Spitting Assistent | 9298040 | 9298040 |
| Wall rack for V-spits | 9298041 | 9298041 |
| Matching stand on castors* | 9298001 | 9298020 |
- Not compatible with stacked units or TG-4
Manual table-top rotisserie
| TG-4 | |
| Description | Number |
| Multi purpose basket | 9010387 |
| Meat fork | 9010549 |
| V-spit | 9112472 |

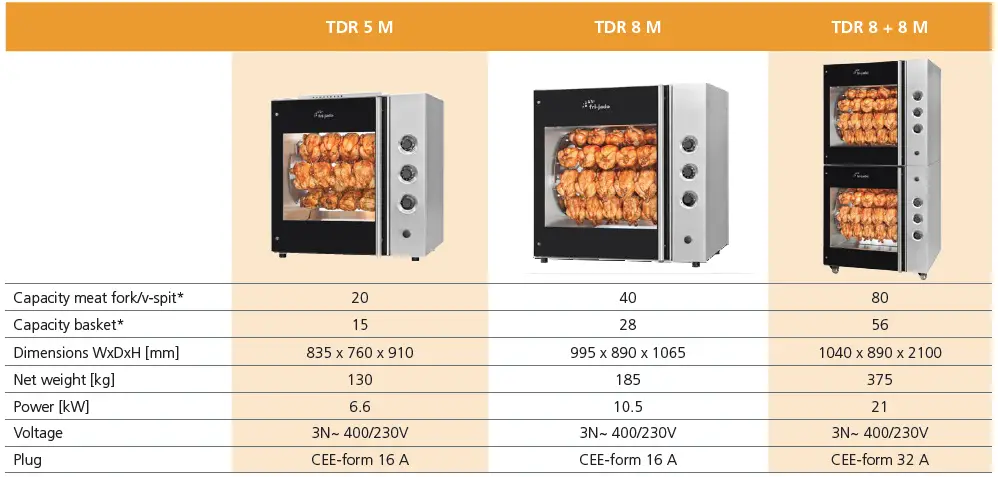

Model Overview
Manual rotisseries
Manual table-top rotisserie
Specifications and technical data are subject to amendment without prior notice.
- This booklet holds basic drawings. For more detailed technical information, please refer to the installation manual at www.frijado.com
- Whilst every care has been taken in the compilation of this booklet, and every attempt to present up-to-date and accurate information, we cannot guarantee that inaccuracies will not occur. Fri-Jado can not be held responsible for any loss, damage or inconvience caused as a result of any inaccurancy or error within this booklet.www.frijado.com.
