FRENCH FITNESS FFM-PLHSLP Monster P/L Hack Squat Leg Press Instruction Manual

Product Information

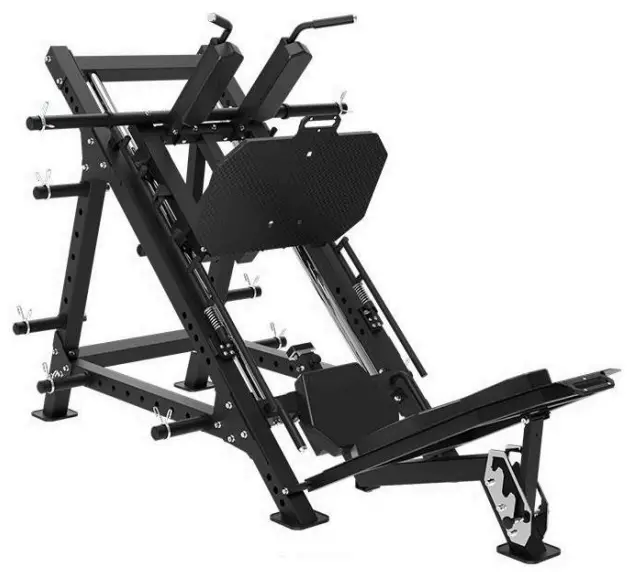

Product Name: FFM-PLHSLP French Fitness Monster P/L Hack Squat Leg Press

Assembly Manual

Features

• 10 Years Parts, 1 Year Labor Warranty (Commercial)

Tech SpecsWeight: 1880 lbs

Length: 2635 inches

Width: 1510 inches

Height: 2 inches

Parts List

Key No.	Part Description	Quantity
1	Left Oblique Beams	1
2	Right Oblique Beams	1
3	Front Frame	2
4	Cross Connection Frame	2
5	Front Upper Connecting Frame	1
6	Front Lower Connecting Frame	1
7	Lower Connecting Frame	1
8	Rear Support Frame	1
9	Sliding Frame	1
10	Lower Weight Carriage	1
11	Shoulder Pad Mount	1
12	Upper Foot Support	1
13	Upper Adjuster	1
14	Upper Weight Carriage	1
15	Front Adjusting Frame	1
16	Guide Rod	2
17	Lock Out	2
18	Lock Out Left	2
19	Lock Out Right	1
20	Lower Foot Support	1
21	Lower Adjuster	1
22	Backrest Pad Mount	1
23	Rear Adjusting Plate	2
24	Stainless Steel Sleeve	2
25	Barbell Tube	8
26	Barbell Rod	1
27	Upper Front Fixing Plate	2
28	Lower Front Fixing Plate	2
29	Lower Fixing Plate	2
30	Bracket	2
31	Bracket	2
32	Bracket	2
33	Seat Pad	1
34	Backrest Pad	1
35	Shoulder Pad	2
36	Handle Liner	4
37	Floor End Cap	5
38	Pin Drawing Head	2
39	Olympic Sleeve	10
40	Weight Bar Olympic Sleeve	2
41	Spring Clip	12
42	Cover Cap	4
43	Axle	2
44	End Cap	2
45	End Cap	2
46	End Cap	1
47	Slide Guide	1
48	Sleeve	2
49	End Cap	22
50	Ring Bolt	8
51	Bumper	1
52	Bumper	1
53	Spring	2
54	Grip	4
55	Rollers	8
56	Lock Pin	1
57	Moving Lock Pin	1
58	Socket Head Allen Bolt	9
59	Socket Head Allen Bolt	19
60	Socket Head Allen Bolt	14
61	Socket Head Allen Bolt	2
62	Socket Head Allen Bolt	4
63	Socket Head Allen Bolt	8
64	Socket Head Allen Bolt	1
65	Socket Head Allen Bolt	1
66	Socket Head Allen Bolt	9
67	Socket Head Allen Bolt	14

Product Usage Instructions

To assemble the FFM-PLHSLP French Fitness Monster P/L Hack Squat Leg Press, follow these steps:

1. Identify the different parts using the provided parts list.
2. Start by assembling the oblique beams (#1 and #2) to the front frame (#3) using the socket head Allen bolts (#58 and #59).
3. Attach the cross connection frame (#4) to the oblique beams using the socket head Allen bolts.
4. Connect the front upper connecting frame (#5) and front lower connecting frame (#6) to the front frame and cross connection frame using the socket head Allen bolts.
5. Attach the lower connecting frame (#7) to the front frame using the socket head Allen bolts.

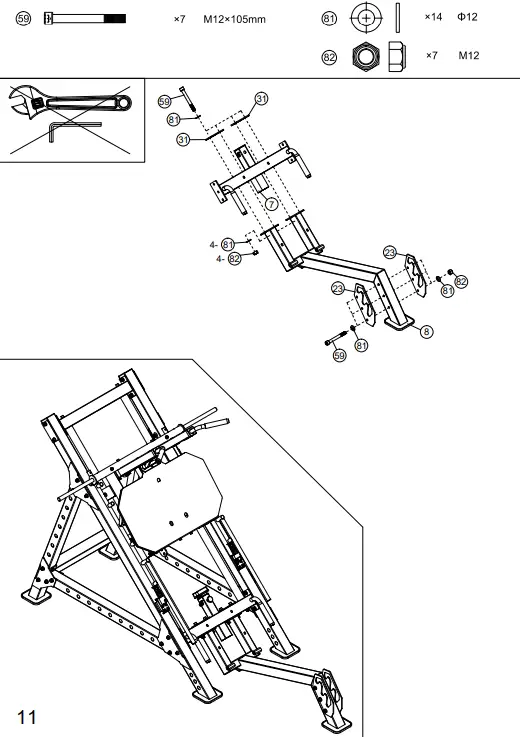

6. Connect the rear support frame (#8) to the lower connecting frame and front frame using the socket head Allen bolts.
7. Attach the sliding frame (#9) to the rear support frame using the socket head Allen bolts.

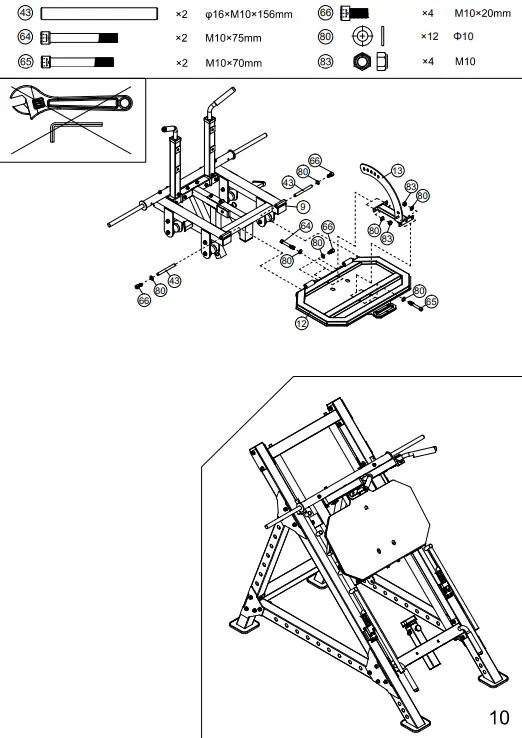

8. Install the lower weight carriage (#10) onto the sliding frame.

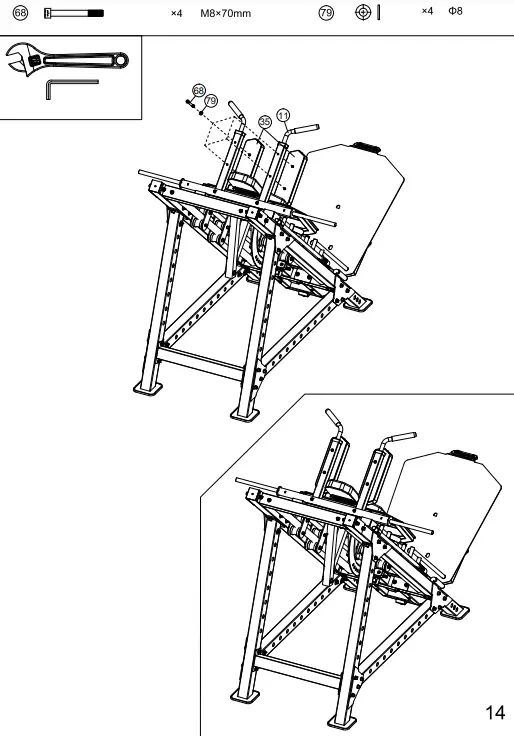

9. Mount the shoulder pad mount (#11), upper foot support (#12), upper adjuster (#13), and upper weight carriage (#14) onto the front adjusting frame (#15) using the socket head Allen bolts.
10. Attach the front adjusting frame to the front frame using the socket head Allen bolts.
11. Insert the guide rods (#16) into the front adjusting frame and lock out (#17).
12. Install the lock out left (#18) and lock out right (#19) onto the lock out using the socket head Allen bolts.

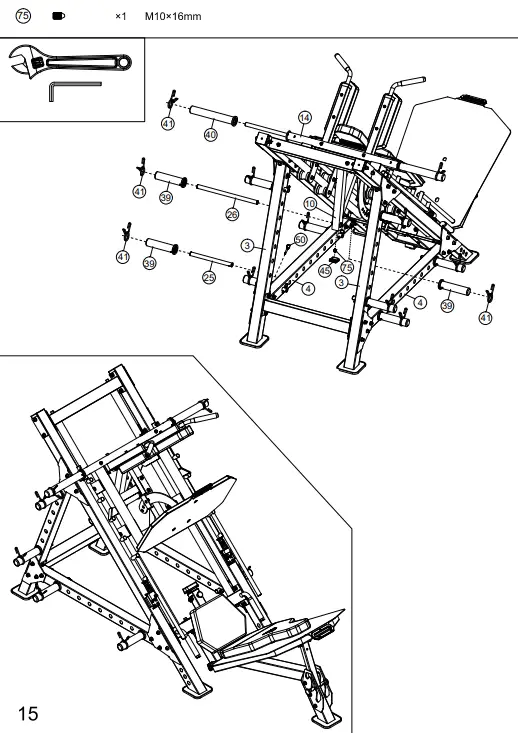

13. Mount

FEATURES

• 2-in-1 Machine features Leg Press and Hack Squat positions
• Massive 1000 lbs weight rating
• Easy adjust from leg press to hack squat
• Linear bearings create a smooth feel and function
• Multiple lockout positions
• Oversized shoulder support pads
• Durable and comfortable upholstery
• Fully adjustable patterned upper and lower foot plates
• Comfortable and adjustable back pad/footplate angle
• Massive guide rails to handle the heaviest loads
• 8 adjustable weight plate storage holders for easy plate access
• Rubber non-skid feet to protect floors and for added stability
• Incorporates resistance bands to give you that extra push
• Slid resistance foam grip handle with ABS chrome-plated end cover
• Super quiet buffer spring
• Chrome plated rear adjustment board
• Triangle structure for stability and security

TECH SPECS

• Max Weight (Per Storage Weight horn): 135 lbs
• Max Drop Weight: 555 lbs
• Maximum User Weight: 350 lbs
• Maximum Load Weight: 1,000 lbs
• Total Weight Horns for Loading: 4
• Total Weight Horns for Storage: 8
• Test Weight: 3306 lbs
• Leg Press Plate Dimensions: 28.5″L x 36″W
• Hack Squat Plate Dimensions: 28.82” (732 mm) x 36.05” (915.5 mm)
• Dimensions: 103.7″L x 59.4″W x 74″H (L:2635mm, W:1510mm, H:1880mm)

WARRANTY

10 Years Parts, 1 Year Labor (Commercial)

Dimension

Assembled Dimension: 2635mm×1510mm×1880mm

Parts & Tools

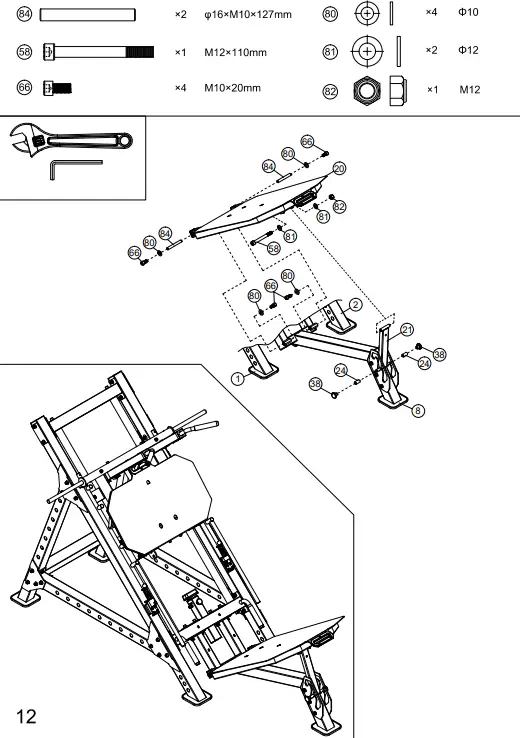

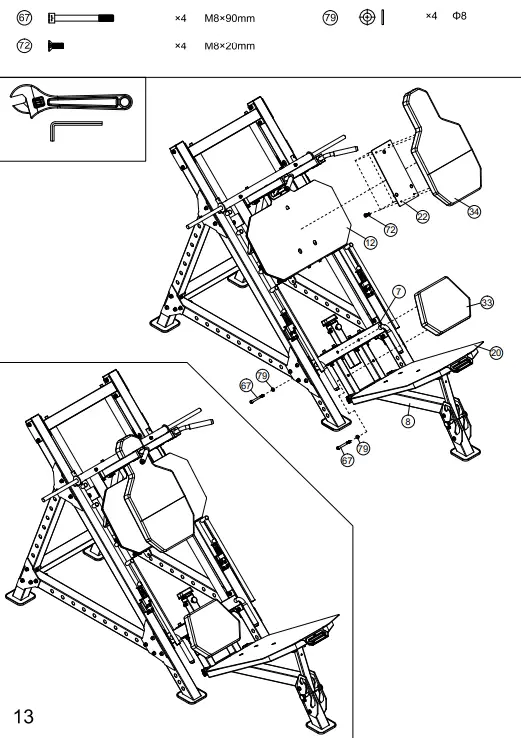

Installation

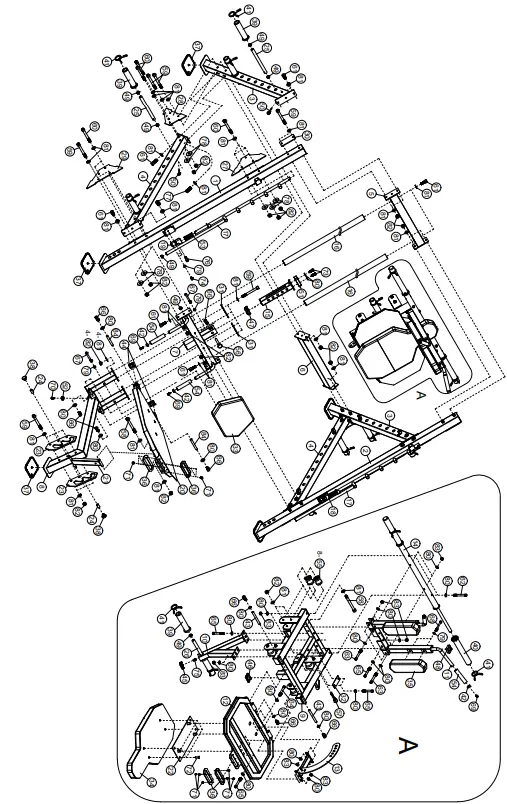

PARTS LIST

KEY NO.	PART DESCRIPTION	SPEC	QTY
1	Left Oblique Beams		1
2	Right Oblique Beams		1
3	Front Frame		2
4	Cross Connection Frame		2
5	Front Upper Connecting Frame		1
6	Front Lower Connecting Frame		1
7	Lower Connecting Frame		1
8	Rear Support Frame		1
9	Sliding Frame		1
10	Lower Weight Carriage		1
11	Shoulder Pad Mount		1
12	Upper Foot Support		1
13	Upper Adjuster		1
14	Upper Weight Carriage		1
15	Front Adjusting Frame		1
16	Guide Rod		2
17	Lock Out		2
18	Lock Out Left		1
19	Lock Out Right		1
20	Lower Foot Support		1
21	Lower Adjuster		1
22	Backrest Pad Mount		1
23	Rear Adjusting Plate	316×132×5	2
24	Stainless Steel Sleeve	φ20×1.5×35	2
25	Barbell Tube	φ25×2×310	8
26	Barbell Rod	φ25×2.5×450	1
27	Upper Front Fixing Plate	368×160×5	2
28	Lower Front Fixing Plate	294×160×5	2
29	Lower Fixing Plate	387×160×5	2
30	Bracket	150×75×4	2

KEY NO.	PART DESCRIPTION	SPEC	QTY
31	Bracket	120×75×4	2
32	Bracket	120×50×3	1
33	Seat Pad	320×420×60	1
34	Backrest Pad	800×420×60	1
35	Shoulder Pad	395×120×60	2
36	Handle Liner	180×70×5	4
37	Floor End Cap	158×158×10.5	5
38	Pin Drawing Head	φ40×φ18×M10×30	2
39	Olympic Sleeve	φ50×210	10
40	Weight Bar Olympic Sleeve	φ50×335	2
41	Spring Clip	φ49	12
42	Cover Cap	φ30×φ26×12	4
43	Axle	φ16×M10×156	2
44	End Cap	φ 45	2
45	End Cap	φ 50	1
46	End Cap	φ 70×50	1
47	Slide Guide	φ 60×2× φ 50×23.5	1
48	Sleeve	φ 50×φ34	2
49	End Cap	φ25	22
50	Ring Bolt		8
51	Bumper	100×50×25	1
52	Bumper	φ35×φ30×10	1
53	Spring	φ43×φ27×φ8×80	2
54	Grip	φ23×150	4
55	Rollers		8
56	Lock Pin	φ16	1
57	Moving Lock Pin		1
58	Socket Head Allen Bolt	M12×110	9
59	Socket Head Allen Bolt	M12×105	19
60	Socket Head Allen Bolt	M12×100	14

KEY NO.	PART DESCRIPTION	SPEC	QTY
61	Socket Head Allen Bolt	M12×30	12
62	Socket Head Allen Bolt	M10×115	2
63	Socket Head Allen Bolt	M10×110	2
64	Socket Head Allen Bolt	M10×75	2
65	Socket Head Allen Bolt	M10×70	10
66	Socket Head Allen Bolt	M10×20	9
67	Socket Head Allen Bolt	M8×90	4
68	Socket Head Allen Bolt	M8×70	4
69	Socket countersunk head screw	M6×20	4
70	Cross Recess Head Screw	M6×10	1
71	Cross Recessed Countersunk Head Scre	M5×8	12
72	Socket countersunk head screw	M8×20	4
73	Allen Bolt	M10×25	2
74	Allen Bolt	M8×16	8
75	Allen Screw	M10×16	1
76	Hexagon socket button head screws	M8×25	2
77	Hex Bolts	M12×30	4
78	Washer	φ37×φ13.5×3	14
79	Washer	8	16
80	Washer	10	42
81	Washer	12	86
82	Aircraft Nut	M12	42
83	Aircraft Nut	M10	16
84	Axle	φ16×M10×127	2
	Allen Wrench	10#	1
	Allen Wrench	8#	1
	Allen Wrench	6#	1
	Allen Wrench	5#	1
	Allen Wrench	4#	1

Part1 ×1	Part2 ×1	Part4 ×2	Part25 ×8
BOX 2:
Part14 ×1	Part16 ×2	Part17 ×2	Part26 ×1
Parts Bag 6-1	Parts Bag 6-2	Parts Bag 6-3	Parts Bag 6-4
Parts Bag 6-5	Parts Bag 6-6
BOX 3:
Part3 ×2	Part5 ×1	Part6 ×1	Part8 ×1
Part18 ×1	Part19 ×1	Part21 ×1	Part22 ×1
Part23 ×2	Part24 ×2	Part38 ×2	Part39 ×10
Part40 ×2	Part41 ×12	Part45 ×1	Part50 ×8
Part53 ×2	Part55 ×8	Part56 ×1	Part57 ×1
BOX4:
Part7 ×1	Part9 ×1	Part10 ×1	Part12 ×1
Part13 ×1	Part15 ×1
BOX5:
Part11 ×1	Part20 ×1	Part27 ×2	Part28 ×2
Part29 ×2	Part30 ×2	Part31 ×2	Part32 ×1
Part33 ×1	Part34 ×1	Part35 ×2	Manual
