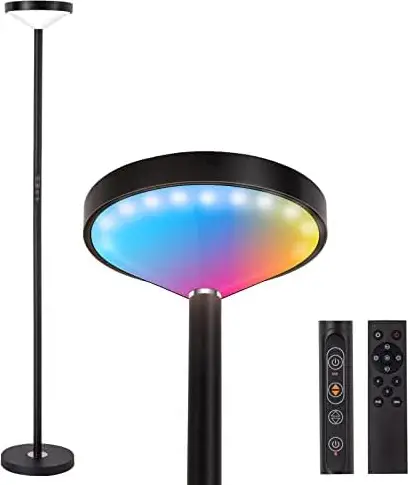

Fovbun TPABSFL13FME-24WA Smart COB RGB IC Floor Lamp
What’s In The Box
Installation Guide
Step 1
Insert the connecting piece into the first pole and align the holes. Use two screws to tighten it. Align the metal slots on the second pole with the holes on the connector, and use two screws to tighten them. Ensure that the fivo poles are tightly aligned. Repeat the process for the remaining rods. Finally, install the top cap at the top of the pole.
Tips:
Make sure the two poles are firmly together before tightening the screws to prevent large gaps that could cause tilting or light leakage.
Step 2
Slide the metal slots Of the pole onto the base, and tighten them with two screws.
Step 3
Straighten the silicone light strip and connect the wires from the strip to the corresponding wires in the lamp base. (Make sure to match the wire colors when connecting them.).
Step 4
Ensure to keep the exposed wires inside the lamp base. Attach the silicone light strip according to the image below, and then press the strip light from the middle towards the two ends. Connect the adapter to the lamp base cable and plug it into a power outlet to power the lamp.
