FORENEX FR-DTE R232 Breakout Board

FORENEX-FR-DTE-R232-Breakout-Board-product

Product Information

The FR-DTE (RS232) Breakout Board is a device that converts UART-TTL logical level to RS232. It features a UART-TTL with 3.3V/5V tolerance input and RS232 that provides 3-wire or 5-wire mode. The device is RoHS compliant and comes in two ordering options: FR-DTE-W (with wire-to-board connector) and FR-DTE-D (with board-to-board header). The device also comes with a 6-pin to 6-pin wire cable for input, L=150mm (WC7067060153).

Product Usage Instructions

  1. Connect the power input (3.3V/5V) to Pin 1 (P) of the UART-TTL connector.
  2. Connect the UART-TX (transmit) of your device to Pin 2 (I) of the UART-TTL connector.
  3. Connect the UART-RX (receive) of your device to Pin 3 (O) of the UART-TTL connector.
  4. Connect the ground (GND) of your device to Pin 4 (P) of the UART-TTL connector.
  5. If you are using the 5-wire mode, connect the UART-RTS (ready to send) of your device to Pin 5 (I) of the UART-TTL connector, and connect the UART-CTS (clear to send) of your device to Pin 6 (O) of the UART-TTL connector.
  6. If you are using the 3-wire mode, connect Pin 5 (I) and Pin 6 (O) of the UART-TTL connector to NC (no connection).
  7. If you are using FR-DTE-W, connect the DTE-RXi (receive input) of your device to Pin 2 (I) of the board-to-board connector, and connect the DTE-RTSo (ready to send output) of your device to Pin 7 (O) of the board-to-board connector. Connect the DTE-TXo (transmit output) of your device to Pin 3 (O) of the board-to-board connector, and connect the DTE-CTSi (clear to send input) of your device to Pin 8 (I) of the board-to-board connector.
  8. If you are using FR-DTE-D, connect the pins according to your board-to-board header.

General Description

Making UART-TTL logical level convert to RS232

Feature

UART-TTL with 3.3V/ 5V tolerance input. RS232 provide 3-wire or 5-wire mode. RoHS Compliant.

Ordering Information

  • FR-DTE-W: with wire to board connector.
  • FR-DTE-D: with board to board Header.
  • WC7067060153: 6-pin to 6-pin, wire cable for input, L=150mm.

Connector

UART-TTL Connector
UART2: (Wafer_6pin,1.25mm, 90°)

FR-DTE-W only

JP2: (Header-6pin, 2.0mm, 180°)

FR-DTE-D only

Pin num Description I/O Pin num Description I/O
Pin1 Power Input (3.3V/ 5V) P Pin1 Power Input (3.3V/ 5V) P
Pin2 UART-TX I Pin2 UART-TX I
Pin3 UART-RX O Pin3 UART-RX O
Pin4 GND P Pin4 GND P
Pin5 UART-RTS I Pin5 UART-RTS I
Pin6 UART-CTS O Pin6 UART-CTS O
RS232 DTE Connector: (DB9, Male, 90°)
Pin num Description I/O Pin num Description I/O
Pin1 NC   Pin6 NC
Pin2 DTE-RXi I Pin7 DTE-RTSo O
Pin3 DTE-TXo O Pin8 DTE-CTSi I
Pin4 NC   Pin9 NC
Pin5 GND

Dimension

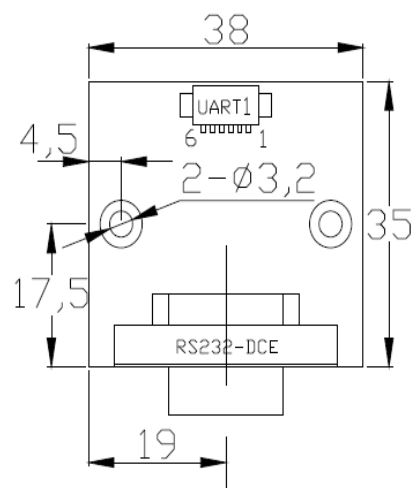

FR-DCE-W FORENEX-FR-DTE-R232-Breakout-Board-fig 1FORENEX-FR-DTE-R232-Breakout-Board-fig 2

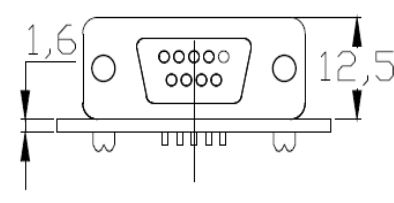

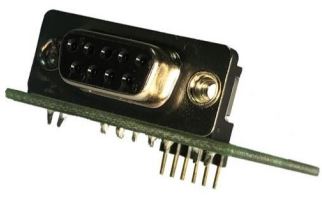

FR-DCE-D FORENEX-FR-DTE-R232-Breakout-Board-fig 3 FORENEX-FR-DTE-R232-Breakout-Board-fig 4
