Foiresoft Cordless Basic-01-W 29 x H 48 Zebra Roller Blinds User Manual
Foiresoft provide a limited warranty service for 6 months after the date of purchase. The support we provide under the limited warranty is only available for manufacturing defects (i.e, material defects, workmanship that cause product failure to operate).
What is covered?
- Wrong Type, Color, and Size
- Package Damaged
- Missing Accessories
- All internal mechanisms
- Repairs and/or replacements will be provided with the closest equivalent of the product
NOTE : For the issues mentioned above (wrong type, color, size, and damage/defective product), order number, product size and pictures must be provided.
What is NOT covered?
Normal wear and tear Any failure that caused by :
- Abuse
- Accidents
- Misuse
- Alterations
Defectives that was caused by passing of time :
- Discoloration
- Fading
- Shrinking
- Stretching
Failure to follow our instructions regarding :
- Measurement
- Installation
- Cleaning
- Maintenance
Contents
CONTACT INFORMATION
Foiresoft Customer Service :
GETTING STARTED
INCLUDED COMPONENTS
- Blind Shade
- L- bracket x 2 EA
- C-clamp x 2 EA
- Dry anchor & screw x 2 EA
- Screw x 3 EA
- Telescopic Draw Rod
★ The amount of included components might differ depending on the size of the shades.
★ Additional (sold seperately)
TOOLS YOU MAY NEED (NOT INCLUDED)
- Tape Measure
- Screwdriver
- Drill

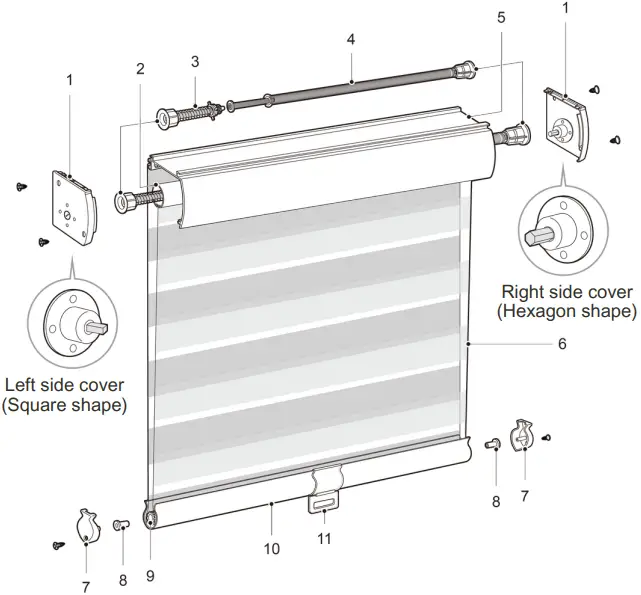

PARTS NAME
- Side Cover
- Roller Tube
- Support Spring
- Spring Tensioner
- Top Header
- Shade Fabric
- Bottom Rail End Cap
- Bottom Roller Plug
- Bottom Roller
- Bottom Bar
- Handle
PARTS DIMENSIONS
HOW TO INSTALL
INSTALLING TIPS
- Make sure the blinds are fully rolled up to ease the installation.
- Confirm the direction of the header’s front side and back side before installing.
- Check the space for check if the surface is flat to ensure that the blinds will be able to be installed beautifully.
- Check the components included are all complete. If you are missing some parts, please reach out to us for replacement.
Marking the bracket location
Before marking the bracket location, please make sure that the location for bracket installment won’t interfere other components including the blind’s header. (Refer to page 4 for bracket dimensions.)
Installing the C-Clamp direction
Please refer to the explanation picture for checking the right C-Clamp direction for installment.
Installing the blinds
The front part of our header has rounded edge. Please make sure the installment directions.
Preparation
- Measure the location and mark.
- Optional)
You may need an electric drill to make a hole depending on the surface. material.
- You may need to use the drywall anchors before securing the C-clamps or L-brackets.
Ceiling Mount
- Secure the C-clamp using the screws included in the package. (Check the direction of the C-clamp.)
- Insert the shade into the C-clamps.
WALL MOUNT
- Secure the L-bracket using the screws included in the package
- Engage the C-clamp with the L-bracket.
- Turn the C-clamps 90°. (Check the direction of the C-clamp.)
Insert the shade into the C-clamps.
PRECAUTIONS FOR USING
OPENING AND CLOSING THE BLINDS
- Place the handle on the exact center of the bottom bar and slowly raise or lower the blind.
If the handle is not located in the center of the bottom bar or if the blind goes up and down quickly, both ends of the blind fabric may be damaged or tilted to one side.
ADJUSTING SPRING TENSION
NOTES
- Our shade is operated by the spring tensioner that is located on the center pole.
- The spring may be loosened or tightened depending on the long use of the blind or the external environment such as humidity and heat.
- The spring tensioner is on the right when viewed from the front
Case 1
When the blind rolls back up without stopping on the desired position, tum the spring tensioner clockwise to reduce tension on the spring tensioner.
Case 2
When the blind won’t go up, turn the spring tensioner counterclockwise to increase the tension on the spring tensioner.
ADJUSTING THE FABRIC
Due to working mechanism, there’s a size gap between the fabric and the header.
The total size gap will be around 1.5 inch and the fabric usually will be off centered because the spring tension device parts are all on the right side. Therefore, usually the gap on the right side will be bigger than the left side.
If you’d like to adjust the fabric location to the center, you can open the blind fully and slowly close it while shaking the fabric left to right. If this doesn’t work in one try, please do the adjustment repeatedly

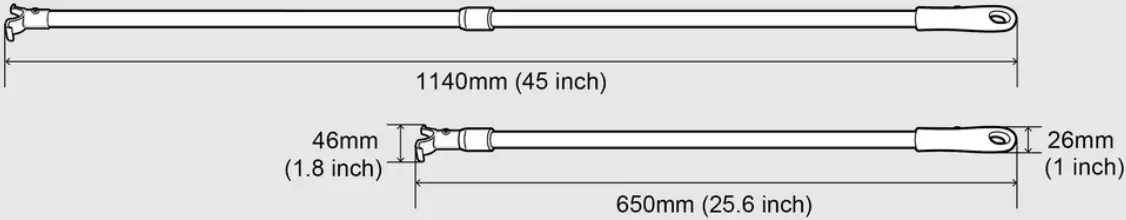

TELESCOPIC DRAW ROD
- NOTES : The telescopic draw rod is not included on the package. It has to be purchased separately.
Dimensions
Lowering the blind
Raising the blind
Adjusting the length of the rod
CLEANING GUIDES
DO NOT WASH
DO NOT USE CHEMICAL
DO NOT IRON
How to remove stain
Use soft brush to remove dust. Please do not use any wet equipment to clean the shade.
Use a hair dryer on cold mode or soft brush to remove dust and use neutral detergent for stain spot cleaning.
Do not dry the fabric in direct sunlight.
