FLOS Micro Running Magnet Luminaires
INSTRUCTIONS OF INSTALLATION AND USE
ATTENTION!
The safety of the device can only be guaranteed on condition that to be respected the following instructions, both stages of installation and use therefore it is highly recommended to keep them.
WARNING:
- To carry out the installation, and whenever an operation in the device is carried out, make sure of having disconnected the electric power.
- The device cannot be in any case modified or forced, any modification might jeopardize the safety system making it dangerous. FLOS declines any responsibility on modified products.
- The device has been designed for the inside.
IP20 Ordinary.
- Class 111 luminaire: Device with a very low safety voltage. Connect the main cables to the remote-led power supply SELV under the EN 61347-2-13 standard, respecting the right polarity (red positive – black negative). Devices with a very low safety voltage showing the (BTS) mark should not be connected to earthing conductors.
- Luminaires are intended for direct assembly on surfaces that are normally flammable.
- Only install out of the volume of accessibility.
- Use appropriate equipment and be in agreement with the standard.
- The luminaire should only be used with Flos accessories or rJi components.
- The symbol shown on the device indicates that the product must be g eliminated differently from the rest of the urban waste.
CLEANING INSTRUCTIONS
- Use only a soft cloth to clean the appliance. For stubborn dirt, dampen the cloth with water and clean only the reflector and the outer part of the appliance. Do not clean or touch the LED/light source in any way.
- Warning: do not use alcohol or other solvents.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- Please refer to the product label to check the electrical specifications
LUMINAIRE INSTALLATION
| Ref | Product name | Projector total weight | Connector max. Weight supported | |
| 03.221X.XX | Nano Spot | 0,025 Kg | 1,2 Kg | |
| 03.222X.XX | Micro Spot | 0,030 Kg | 1,2 Kg | |
| 03.223X.XX | Spot | 0,072 Kg | 1,2 Kg | |
| 03.224X.XX
03.225X.XX |
Light Shadow Spot | 0,074 Kg | 1,2 Kg | |
| Light Stripe 300 | 0,026 Kg | 1 Kg | ||
| 03.226X.XX | Light Stripe 600 | 0,050 Kg | 1 Kg | |
| Light Stripe 900
Light Stripe 1200 |
0,074 Kg
0,096 Kg |
1 Kg
1 Kg |
||
| 03.227X.XX | ||||
| Light Stripe
Wall Washer 300 |
0,026 Kg | 1 Kg | ||
|
03.228X.XX 03.228X.XX |
Light Stripe
Wall Washer 600 Light Stripe Wall Washer 900 |
0,050 Kg
0,074 Kg |
1 Kg
1 Kg |
|
| Light Stripe
Wall Washer 1200 |
0,096 Kg |
1 Kg |
WARNING
Only use with the electrical supply track system:
Nano Spot
Micro Spot
Light Shadow Spot
Spot
Light Strip /Light Stripe Wall Washer

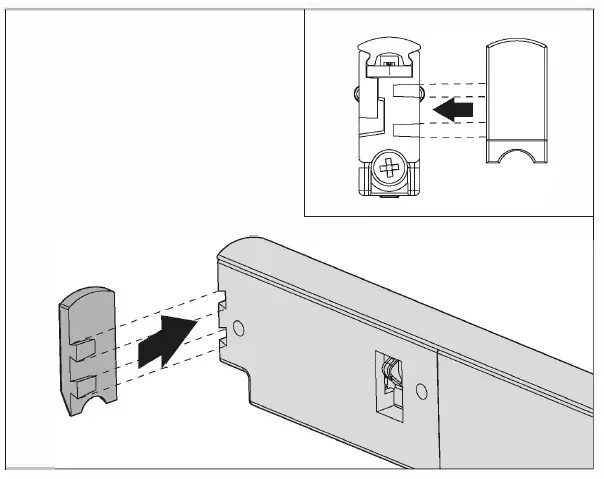

Endcap
WARNING
Only install out of the volume of accessibility
WARNING
Do not install the luminaires under the screws
WARNING
LUMINAIRE TILT ADJUSTMENT
Micro Spot/ Nano Spot/ Light Shadow Spot/ Spot
ACCESSORIES
WARNING
Only for MICRO SPOT & SPOT
| Ref | Connector max. Weight supported |
| 06.6000.XX
06.6010.XX |
1,7 Kg |
| 06.6001.XX
06.6011.XX |
2,55 Kg |
| 06.6002.XX
06.6012.XX |
The CASAMBI module has a range in indoor use of up to 30 meters, please be careful not to place it inside a metal casing or near metal objects that may affect radio waves (2,4Ghz).
| Dimming method | Dimming range | Dimming ajustment considerations |
| 1-10V Dimming | 10-100% | 10% is the minimum dimming percentage to ensure the right minimum flux of any track luminaire configuration, please, adjust your control to this minimum level. |
| DALI Dimming | 10-100% | 10% is the minimum dimming percentage to ensure the right minimum flux of any track luminaire configuration, please, adjust
your control to this minimum level. |
| CASAMBI Broadcast Dimming | 10-100% | Casambi module (CBU-ASD_ref. is capable to manage 1pc of 1-10V dimable led driver). The dimming aplies to all the
luminaries connected to the same controlled driver (Broadcast). The minimum dimming level can be adjusted in the CASAMBI APP, Luminari properties {double tap on Casambi module)/ Minimum dim level. |
Luminaires per power supply
| Luminaires per power supply | |||||||||
|
60.9681 |
60.9682 |
60.9683 |
60.9361 |
60.9360 |
60.9359 |
||||
| Product Name | Power comsumption |
120W |
120W |
120W |
57 W |
45 W @220-277 Vac | 45W
@277Vac |
36W | 25W @120-277Vac |
| Nano Spot | 2.0W | 51 | 51 | 51 | 24 | 19 | 19 | 15 | 11 |
| Micro Spot | 3,0W | 34 | 34 | 34 | 16 | 13 | 13 | 10 | 7 |
| Light Shadow | 3.0W | 34 | 34 | 34 | 16 | 13 | 13 | 10 | 7 |
| Spo1 | 6,0W | 17 | 17 | 17 | 8 | 6 | 6 | 5 | 4 |
| Lighl Stripe 300 | 5.0W | 20 | 20 | 20 | 10 | 8 | 8 | 6 | 4 |
| Light Stripe 600 | 10,0W | 10 | 10 | 10 | 5 | 4 | 4 | 3 | 2 |
| Lighl Stripe 900 | t5.0W | 7 | 7 | 7 | 3 | 3 | 3 | 2 | t |
| Light Stripe 1200 | 20.5W | 5 | 5 | 5 | 2 | 2 | 2 | 1 | t |
| Light StripeWN 300 | s.ow | 20 | 20 | 20 | 10 | 8 | 8 | 6 | 4 |
| Light Stripe WN 600 | 10.ow | 10 | 10 | 10 | 5 | 4 | 4 | 3 | 2 |
| Light StripeWN 900 | t5.0W | 7 | 7 | 7 | 3 | 3 | 3 | 2 | t |
| Light Stripe WN 1200 | 20.5W | 5 | 5 | 5 | 2 | 2 | 2 | 1 | t |
| CE | CE | CE | CE | CE | CE | CULUS | CE-CULUS | ||
| 0/1-10V | DALl2 | CASAMBI | 1-10V | 1-10V | 1-10V | 1-10V | 1-10V | ||
WARNING
The luminaire should be positioned so that prolonged staring into the luminaire at a distance of X m. is not expected.
ANTARES ILUMINACIÓN S.A.U.
Calle Mallorca, 1 Polígono Industrial Reva 46394 Ribarroja Valencia-Spain
Tel: +34 961 669 520
Fax: +34 961 668 286
