Fittes Lite Framed Floor Vent Installation Guide

Fittes Lite Framed Floor Vent

Product Information

• Product Name: Framed Floor Vent [Lite]
• Install Guide: Included

Materials Needed

• Pre-cut piece of surface material for tray insert (Size will vary for vent sizes)
• Bonding material (Will vary for flooring materials)

Note: If the duct opening is larger than the base of the vent, use additional screws to add strength.
Control Air Flow: No airflow is included with this model. See which Lite Dampers are compatible with this product at www.ariavent.com

Additional Support

• Email: [email protected]
• Website: www.fittes.com

Made in: Canada

Product Usage Instructions

1. Cut a piece of surface material for the tray insert. The size will vary depending on the vent size.
2. Prepare the bonding material suitable for your flooring material.
3. Apply adhesive bond in the tray of the vent.
4. Insert the pre-cut flooring material into the tray.
5. Apply even pressure to ensure that the floor material is level with the rim of the tray.
6. Allow the bonding agent to cure.
7. Insert the vent in place.
8. Enjoy!

Materials Needed

• Pre-cut piece of surface material for tray insert. (Size will vary for vent sizes).
• Bonding material (will vary for flooring materials).

NOTE
If the duct opening is larger than the Base of the vent, use additional screws to add strength.

1. Apply adhesive bond in Tray.
2. Insert pre-cut flooring material.

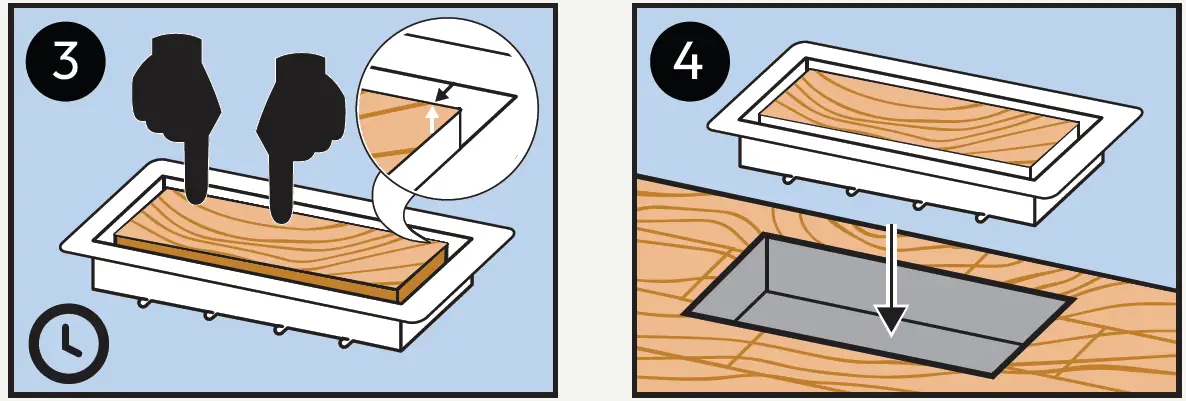

3. Apply even pressure so the floor material is level with the rim of the Tray. Let cure.
4. Insert vent in place.

Control Air Flow
